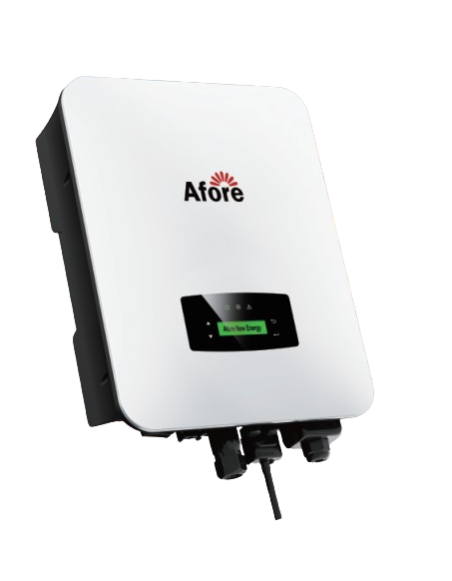

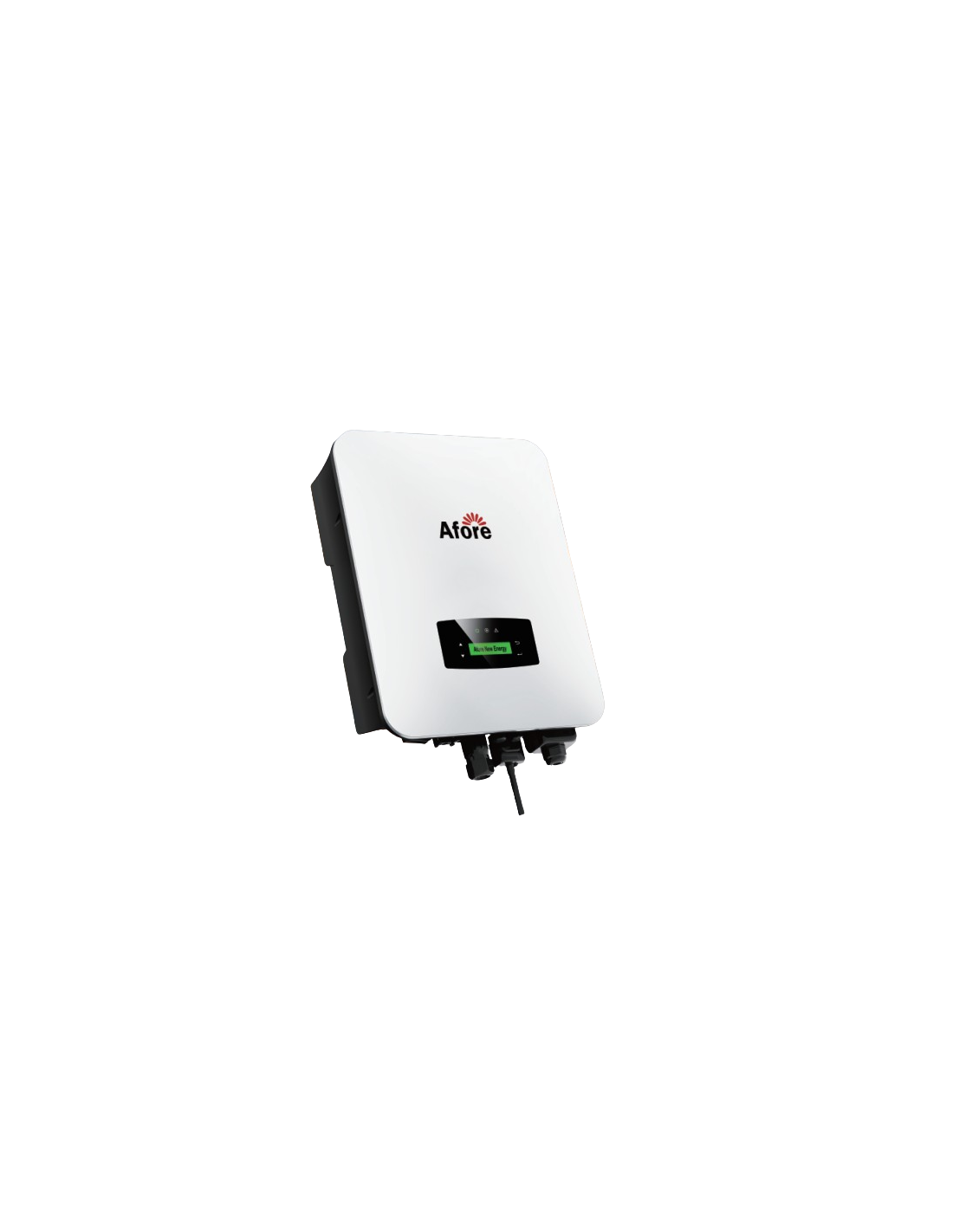

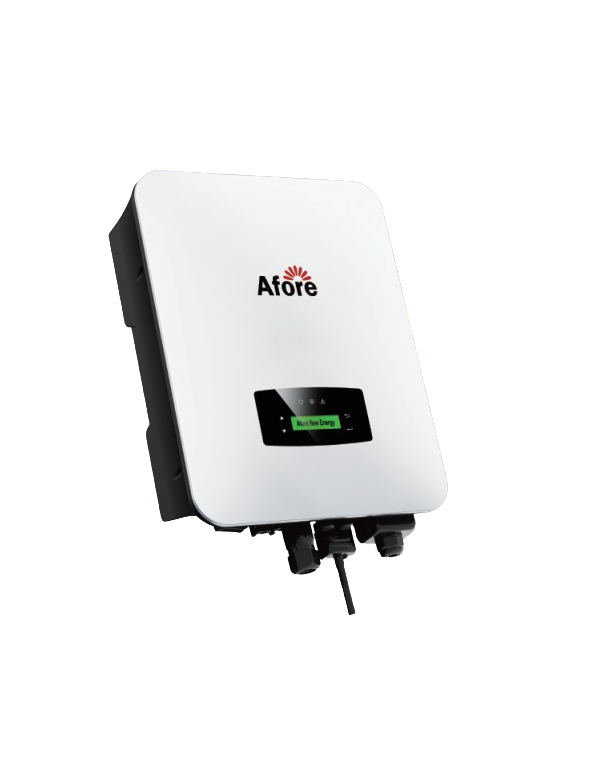

Inverter Solar Hybrid Single-phase Afore 6kw AF6K-SL

Benefits Inverter Solar Hybrid Afore 6KW AF6K-SL

The AFORE AF6K-SL It represents a technical evolution in conversion and monophasic photovoltaic energy storage. With a Continuous nominal power output in AC of 6.0 kVA and the ability to admit 9.0 kW maximum entry power in solar field, this team optimizes the uptake in hours of low solar radiation. Integrates 2 independent MPPT channels capable of managing up 18.5 A per mppt (with short circuit current 26 a per channel), allowing the flexible design of Strings in covers with different orientations and inclinations.

At the level of operational efficiency, it reaches a peak performance of the 97,6% and one 98.1% Battery-FV Efficiency. Its compact design 513 x 370 x 192 mm Structured in a unibody aluminum chassis with degree of protection Ip65 and 17 kg, facilitates an agile assembly on wall both indoors and outdoor. When combining this converter with solar panels set solar High durability, customers of the online store Tienda Solar They ensure maximized and cost-effective renewable production.

Uninterrupted emergency backup (UPS

This hybrid Inverter Acts as a comprehensive electrical protection center before any failure in the public network. Your function UPS Integrated offers a switching time without continuity solution of less than 10 ms, maintaining operations sensitive housing equipment without perceived microcort. To cover demand peaks during emergencies, it is able to deliver a Power output peak up to 9.0 kVA for 10 minutes (with a Maximum peak current of 41.0 to).

The low voltage battery port operates in a secure range of 40 V to 60 V (Nominal voltage of 51.2 V), being compatible with lithium batteries Even accumulators Gel batteries or Inverters AGM. Supports a continuous flow of Loading and unloading up to 4.8 kW with a maximum current of 80 a. In addition, it includes a smart port that supports the integration of auxiliary generators (generators) and self-consumption management with zero injection to the network.

Advanced electrical safety, intelligent cooling and remote monitoring

The AFORE AF6K-SL It is equipped with avant-garde active and passive security systems. Highlights the inclusion of Detection and interruption by Voltaic Arc Failure (AFCI), together with protections against reverse polarity in cc, short circuits in ca, overcurrents / surges, anti-island function and constant monitoring of insulation resistance and ground leaks.

Your ventilation system by smart fan Maintains the equipment in an optimal thermal range of -25 ° C to +60 ° C with a highly low sound level of . It has an LCD screen with indicator LEDs and multiple communication interfaces (RS485, Can, Wi-Fi, GPRS, 4G) For monitoring and updating firmware in remote. To access configuration guides, wiring diagrams and systems design recommendations, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: AFORE AF6K-SL

• Maximum power of entry FV: 9.0 kW (FV 1.5x oversized)

• Maximum input voltage in CC: 550 V

• Start voltage in CC: 100 V

• MPPT voltage range: 80 V - 500 V

• MPPT rank at full load: 210 V - 500 V

• Number of MPPT / String by MPPT: 2/2 (1 String per follower)

• Maximum entry current by MPPT: 18.5 A x 2

• Maximum short circuit current by MPPT: 26.0 to x 2

• Nominal battery voltage: 51.2 V

• Battery voltage range: 40 V - 60 V

• Type of compatible batteries: Lithium ions (Li-ion), lead-acid, etc.

• Maximum load power / battery discharge: 4.8 kW

• Maximum loading / battery discharge: 80 a

• Nominal output power in CA (Network): 6.0 kVA / 6.0 kW

• Maximum continuous current in CA (Network): 28.0

• Maximum power of peak in CA (backup / 10 min): 9.0 kva

• Maximum peak current in AC (backup / 10 min): 41.0 A / 39.2 A

• Backup switching time (UPS):

• Nominal Network CA tension: 220V / 230 V (range 198-242 V @ 220V / 207-253 V @ 230V)

• Maximum conversion efficiency: 97,6%

• Battery efficiency to FV: 98,1%

• Integrated protections: AFCI (arc failure), anti-Iceland, CC reverse polarity, CA short, insulation resistance

• Degree of protection: IP65 / NEMA 4X

• Dimensions (wide X high x deep): 513 x 370 x 192 mm

• Net weight: 17.0 kg

• Refrigeration: Intelligent fan (

• Communication and interface ports: LCD, LED, RS485, Can, Wi-Fi, GPRS, 4G

• Certifications: CEI 0-21, VDE-AR-N4105, EN50549-1, IEC62109-1 / -2, IEC62040

Frequently Asked Questions (FAQ)

1. How much power in I can connect to inverter AFORE AF6K-SL?

Admits a Photovoltaic oversizing up to 150%, which allows you to install up 9.0 kW maximum power in solar field Distributed between its 2 independent MPPT followers.

2. How fast is the switching to the backup mode when the electrical network falls?

Has a Switching time type UPS less than 10 ms, ensuring that the critical loads connected continue to receive power without interruption or restarting equipment.

3. What types of batteries can be installed with this hybrid Inverter?

It is compatible with low voltage batteries (40 V to 60 V) of Lithium (LifePO4) like Lead-acid, Delivering a loading / unloading current 80 A (4.8 kW).

4. Is the inverter With fire protection systems or electric arcs?

Yes, it incorporates in its internal electronics the AFCI Protection (Arc Fault Circuit Interrupter), able to detect and disconnect electric arcs in the continuous current part instantaneously.

5. Where can I buy this inverter and consult more photovoltaic components?

You can buy it directly in Tienda Solar, where we also have a wide catalog of inverters hybrid, Inverters Networking, Microinverters and accessories of the category Inverters solar.
