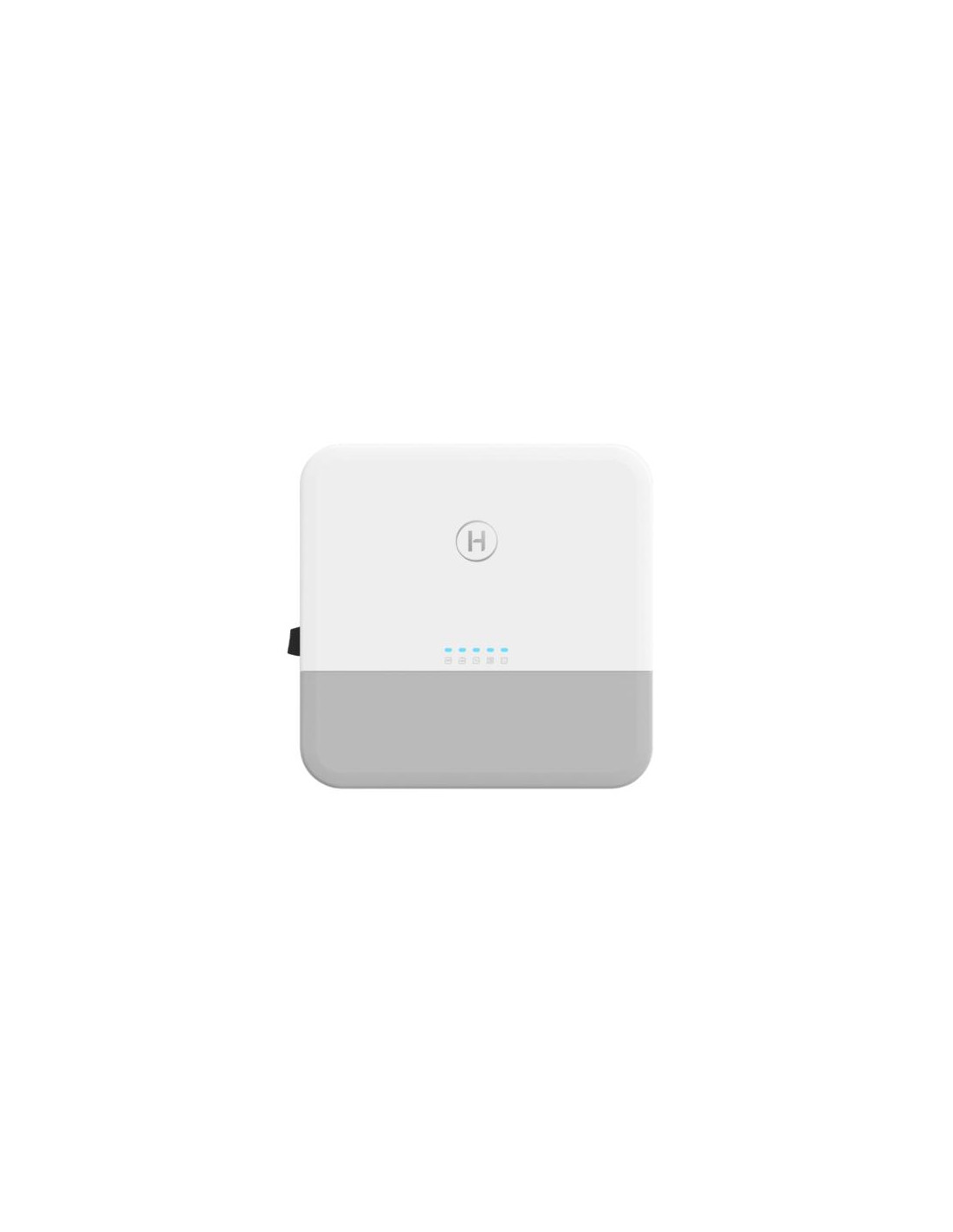

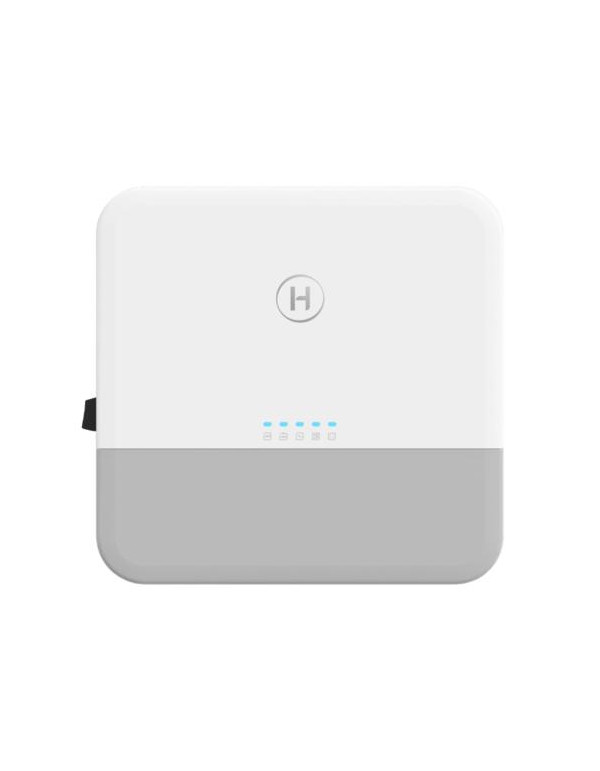

Hybrid Inverter Single-phase Hoymiles 6kw HIS-6L-G3

Benefits Hybrid Inverter Single-phase Hoymiles 6kw HIS-6L-G3

The inverter Hoymiles HIS-6L-G3 Sets a new standard of performance and aesthetics in the residential single-phase self-consumption sector. Designed with an ultra-thin profile architecture and a weight content of only 17 kg, your wall installation is extremely agile and saves space in any technical environment. This team operates with a bus of 48V low voltage batteries (40V functional range to 60V), avoiding the overwhelmed cost of high voltage systems and guaranteeing a perfect integration with lithium and lead-acid batteries by automatic adaptation via BMS.

Supports a high photovoltaic oversizing, admitting 12,000 WP of installed solar power To guarantee maximum energy collection even on days with low radiation. The photovoltaic conversion reaches a Maximum efficiency of 97.7%, a European efficiency of 97.0% and a 99.9% MPPT performance. Integrated solar panels mounted solar Certificates, this equipment available in Tienda Solar Ensures maximum profitability and energy autonomy.

Switching UPS Snapshot 0 ms, 135A load and smart modes

One of the biggest innovations Hoymiles HIS-6L-G3 is your backup switching time UPS from 0 ms. Before a sudden failure in the electricity grid, the feeding of the critical charges becomes dependent on the or accumulators truly uninterrupted, without drop in perceptible voltage for sensitive computer or electronic equipment. Also, the emergency exit is able to provide a Power peak in isolated mode up to 12,000 goes for 10 seconds To withstand demanding inductive starts.

Your battery management stage administers a 135A loading and charging current (up to 6,000W load and 6,300W download). Through your EMS smart system powered by IA, it allows you to configure multiple advanced work modes as Peak Shaving, self-consumption, backup mode, economic mode and 8x24h hour programming (Time of use) To charge the battery in the Hours Valley of the electric fare. It also integrates direct control to interact with heat pumps, smart charges and Support diesel generators.

IP66 protection, silent design and scalability up to 60KW

Unlike the usual market standards, the chassis of the HIS-6L-G3 It has a sealing certification Ip66, which guarantees superior protection against powder and powerful water jets in outdoor installations. It works through a system of Natural Convection Refrigeration (No noisy fans), operating below the 35 dB For an absolute acoustic comfort within the home.

For projects that require greater power, the inverter admits Parallel connection of up to 10 units, allowing to reach up to 60kw of total power both in installations connected to the network (On-grid) as isolated (Off-grid). Incorporates advanced electrical protections with DC Type II and AC Type II surge downloaders, Isolation detection, protection against reverse polarity and RCD residual current monitoring. To learn more about connection schemes and configuration guides with the S-Miles Cloud platform, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles HIS-6L-G3

• Nominal output power AC / Backup: 6,000 W (single-phase L / N / PE, 220/230 / 240VAC)

• Maximum apparent power of exit AC: 6,600

• Maximum recommended photovoltaic power (PMAX): 12,000 WP

• Nominal battery voltage: 48 V (operating range of 40 V to 60 V)

• Type of compatible battery: Lithium-ion or lead-acid (automatic adaptation via BMS)

• Maximum loading / battery discharge: 135 A / 135 A

• Maximum load power / battery discharge: 6,000 W / 6,300 W

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)

• Maximum PV input current per MPPT: 18 a / 18 a

• Maximum short circuit current (ISC): 27 a / 27 a

• Maximum PV input tension: 550 V

• Nominal voltage of PV input: 360 V

• System start voltage: 100 V

• MPPT voltage range: 90 V at 500 V

• Maximum efficiency / European efficiency: 97.70% / 97.00%

• Efficiency of the MPPT follower: 99,90%

• Backup switching time (UPS): 0 ms (instant)

• Power peak in isolated mode (OFF-GRID): 12,000 goes for 10 seconds

• Maximum output current AC: 30 a

• Degree of protection of the chassis: IP66 (Apt for demanding weather)

• Sound emission level:

• Physical dimensions (wide x high x deep x): 506 x 495 x 99 mm

• Net weight of the team: 17.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: DC Type II / AC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet (optional), App S-Miles Cloud

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What advantage does the switching time of 0 ms del Hoymiles HIS-6L-G3?

By offering a passing time as isolated from 0 ms, the inverter Act as a true system UPS uninterrupted. If a network cut, computer equipment, networks and appliances will not suffer any reboot or energy microcorte.

2. With which 48V batteries is this compatible hybrid Inverter?

It is fully compatible with accumulators 48v of lithium batteries as a lead-acid. Its port Can Manage direct communication with the BMS to automatically adjust the load curve.

3. Can a generator or smart charges be connected to inverter?

Yes, it incorporates intelligent management logic powered by the digital I / O interfaces (2xdi, 2xdo) For the integration and automatic start of diesel generators, management of heat pumps and surplus deviation to secondary loads (Smart Load).

4. Is it possible to install it in exterior facades or areas exposed to the weather?

Of course. Thanks to its envelope with sealing certification Ip66, the equipment offers superior resistance to water and dust, surpassing the usual IP65 standard. In addition, by not using external fans, it is ultrasilence ().
