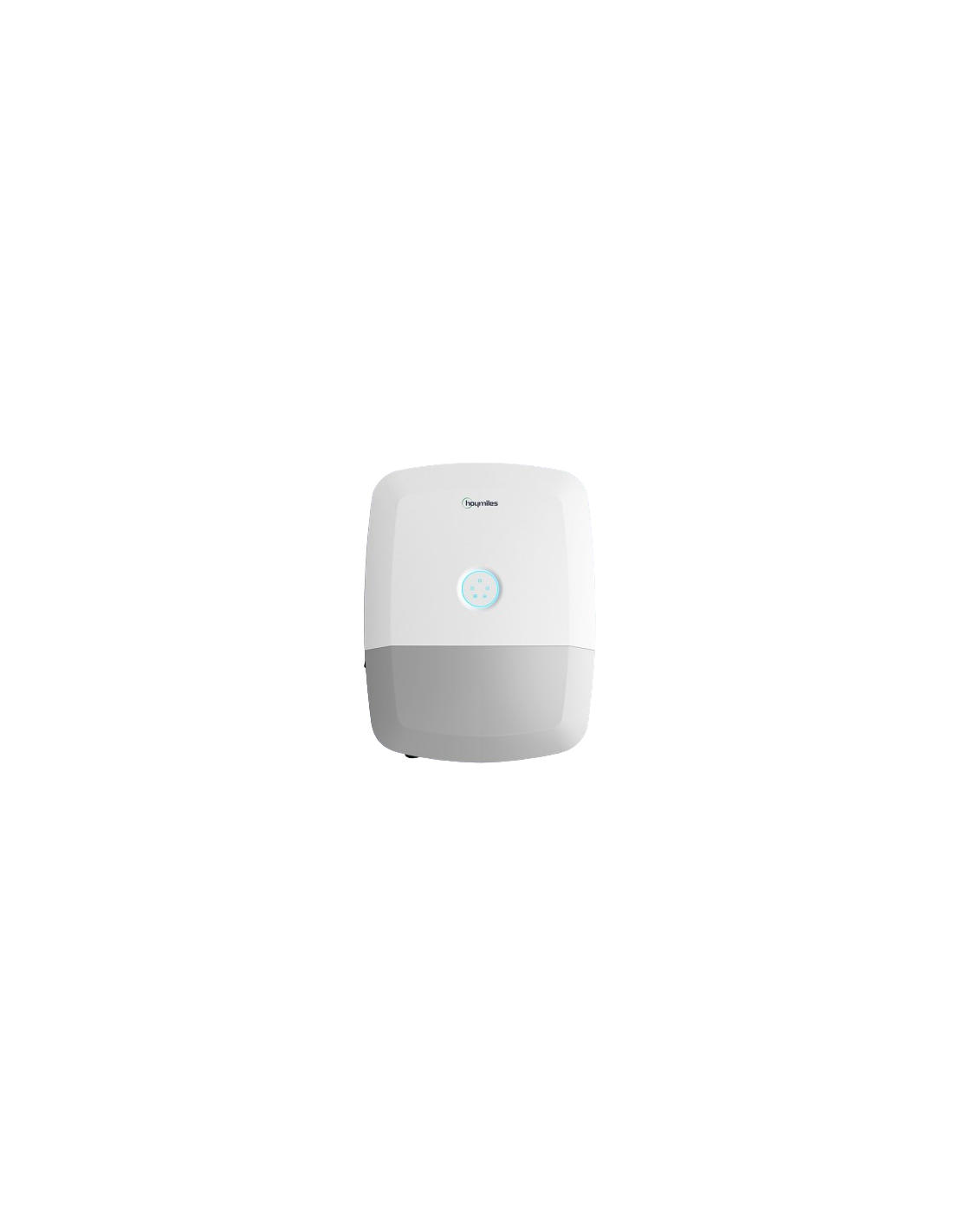

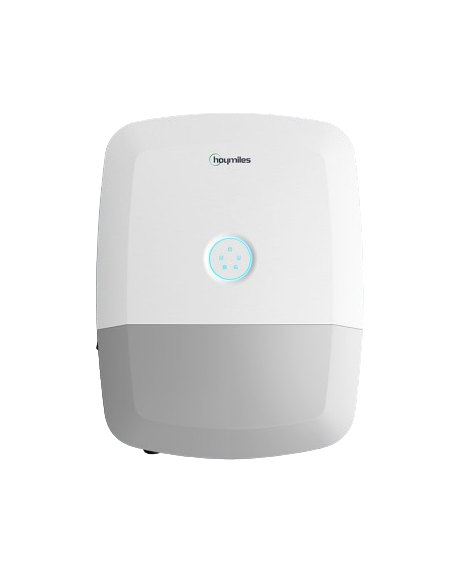

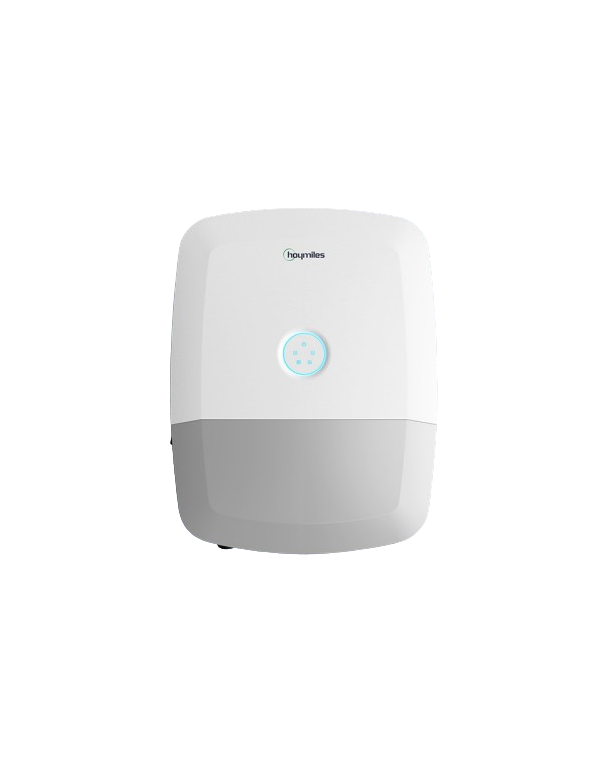

Hybrid Inverter Three-phase Hoymiles 20kw Hit-20L-G3

Benefits Hybrid Inverter Three-phase Hoymiles 20kw Hit-20L-G3

The inverter Hoymiles Hit-20l-g3 It is placed on top of the energy conversion in low voltage when delivering 20 kW of nominal power from a single compact team of just 41 kg and some dimensions of 539 x 696 x 232 mm. Its design to operate on a bus Low Voltage Batteries 48V (40V Operating Range to 60V) Democratizes large-scale storage in companies, drastically cheapering the initial disbursement in accumulation against high voltage configurations and guaranteeing self-employing communication per bus Can With Battery BMS.

It offers an oversizing capacity in CC of 200% (40,000 WP photovoltaic), guaranteeing a superior production volume during the winter months or on high clouds. Its topology without transformer reaches a Maximum efficiency of 98.5%, a European efficiency of 98.0% and one 99.9% MPPT tracking efficiency. When you connect this inverter with solar panels set solar Certificates, customers Tienda Solar They ensure commercial projects of maximum profitability.

Maximum flexibility with 4 MPPT, unbalanced output and exceptional load of 350A

To maximize photovoltaic production in complex industrial covers, the Hit-20l-g3 has 4 independent MPPT followers, which allows distributing the chains of In up to four roof skirts with different inclinations or orientations without partial shadows losses. Its three-phase architecture allows a 100% unbalanced output, delivering up to 50% of the rated power (10,000 W) to a single phase To compensate with acute consumption gauge between phases. Its accumulation circuit manages a Duty current of loading and unloading up to 350 A, speeding up the transfer of surplus towards lithium batteries.

In front of falls from the public network, the backup reacts with a Switching time less than 10 ms, offering level response SAI/UPS able to supply a Apparent power peak at 40,000 is going for 10 seconds. His algorithm of Energy management by integrated AI Supports modalities of Peak Shaving and 8 hourly schedules 24/7, regulating the interaction with Support diesel generators, heat pumps and smart charges (Smart Load).

IP66 grade, intelligent fan and parallelization up to 200KW

The industrial chassis of the Hit-20l-g3 Certification Ip66, which provides complete tightness with the accumulation of dust and injection of high pressure water in weather facilities. Its system Intelligent fan cooling (Smart fan) dissipates thermal heat efficiently in the scenarios of greater demand, maintaining sound emissions contained (less than 60 dB).

For industrial environments that demand superior powers, it allows the Parallelization of up to 10 units Both in network-connected systems and in isolated installations (Off-grid). Integrates complete protections with CC Type II and CA Type II overvoltage, Insulation Monitor, protection against reverse polarity in photovoltaic entrance and residual current supervision RCD. To consult assembly schemes and technical guides prepared by professionals, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles Hit-20l-g3

• Nominal output power AC / Backup: 20,000 W (three-phase 3L / N / PE, 380V / 400V)

• Maximum apparent power of exit AC: 22,000 VA

• Maximum recommended photovoltaic power (PMAX): 40,000 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 350 A / 350 A

Frequently Asked Questions (FAQ)

1. What advantages does it provide to have 4 mppt in the Hoymiles Hit-20l-g3?

Allows you to segment the installation in up 4 different orientations of roof, avoiding the losses by usual shadows or inclination imbalances in industrial buildings or complex commercial buildings.

2. How does the 100% unbalanced output work on this 20KW equipment?

Allows you to distribute energy in a heterogeneous manner between the phases, supplying up to 50% of the nominal power of the inverter (10,000 W) to a single phase when there is a timely intensive consumption in that line.

3. Is it possible to use this inverter of 20kW with 48V low voltage batteries?

Yes, it works on a voltage range of 40V to 60V and manage 350 A load / unloading current, communicating self-adaptable by bus Can With BMS lithium or lead-acid batteries.

4. What happens with the burden of the company before a network blackout?

The backrest port switches to Isolated mode at a time lower than 10 ms. Thanks to this response time UPS/SAI, Computers, sensitive machinery and servers continue to operate without interruption.
