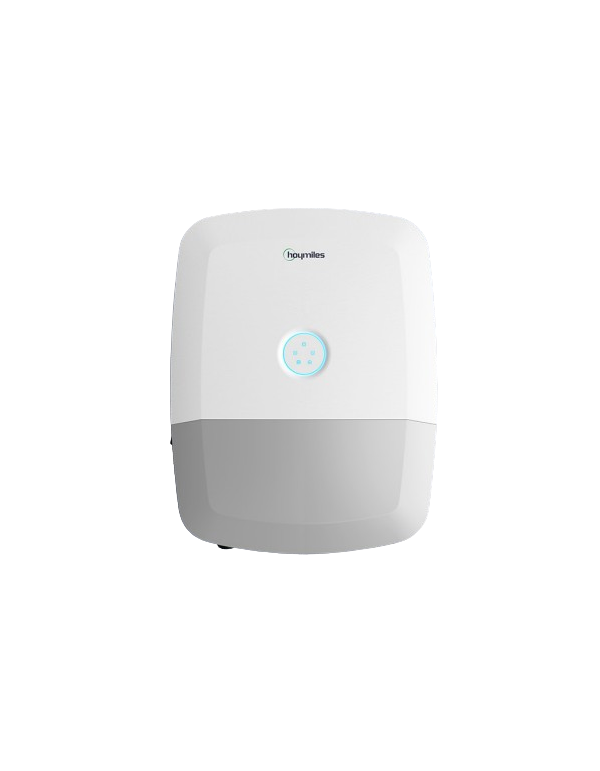

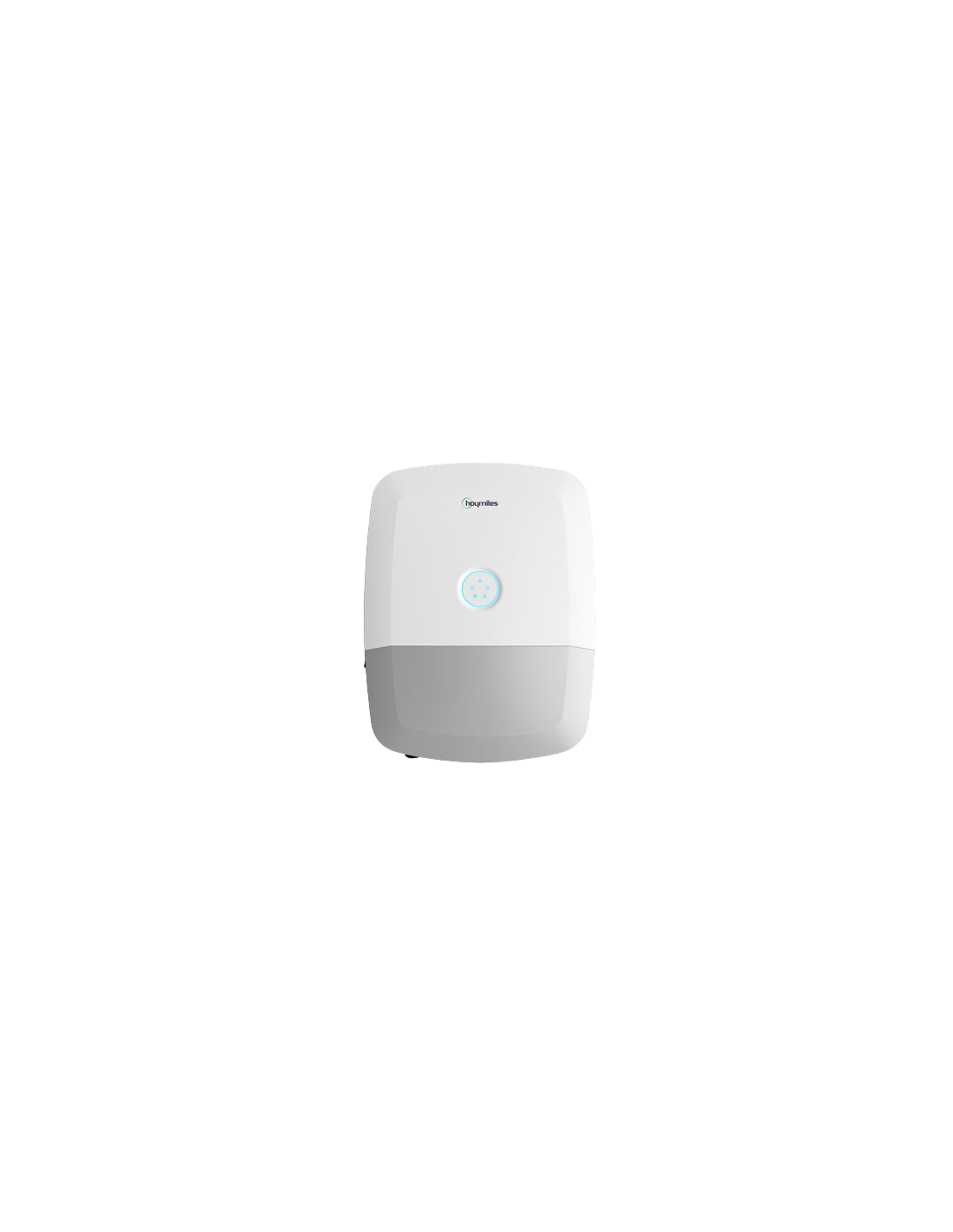

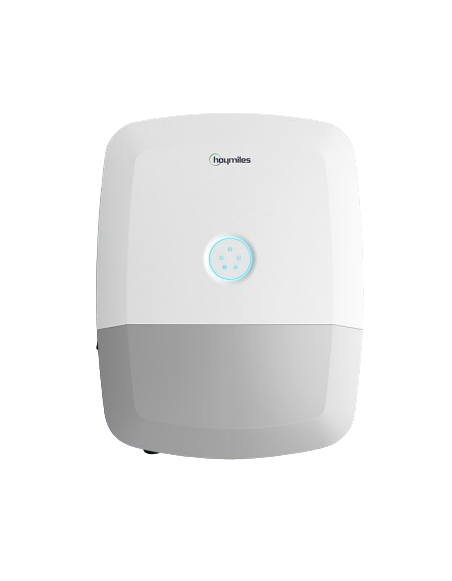

Hybrid Inverter Three-phase Hoymiles 15kw Hit-15L-G3

Benefits Hybrid Inverter Three-phase Hoymiles 15kw Hit-15L-G3

The inverter Hoymiles Hit-15l-g3 revolutionize the lightweight commercial and industrial sector by combining a high three-phase power with the great economic advantage depicted in low voltage storage. With a weight content of 41 kg and compact dimensions of 539 x 696 x 232 mm, This equipment facilitates an agile and clean wall installation without saturating the available technical space. Is designed to operate on a bus of 48V batteries (Functional range of 40V to 60V), which drastically reduces initial investment costs in accumulation against high voltage systems, also allowing self-adaptable bus management CAN with the BMS of the batteries.

Admits an extraordinary oversizing capacity in continuous current of up to 200% (30,000 WP photovoltaic field), guaranteeing maximum energy collection during winters or days of low radiation. Its architecture without transformer achieves a maximum efficiency of 98.5%, a european efficiency of 98.0% and one 99.9% MPPT tracking efficiency. When you connect this inverter with solar panels mounted structures for solar robust and approved, customers Tienda Solar they obtain a high durability photovoltaic system and maximum profitability.

Maximum versatility with 4 MPPT, unbalanced output and 300A load

To maximize photovoltaic production in complex covers, the Hit-15l-g3 incorporates 4 independent MPPT followers, allowing to guide chains towards four different roof skirts without suffering losses by partial shadows or misalignment. Its three-phase technology allows a 100% unbalanced output, being able to derive up to 50% of its nominal power (7,500 W) to a single phase. This feature is dynamically compensated by heterogeneous consumption in the different phases of the installation. Your powerful battery stage manages up to 300 a load and continuous download, speeding up the transfer of surplus towards lithium batteries.

Faced with an unforeseen failure in the commercial network, the emergency exit of the equipment is activated in a backup switching time less than 10 ms, functioning as a system SAI/UPS high-response able to deliver a apparent Power Peak 30,000 VA for 10 seconds. His algorithm of energy management for integrated AI supports advanced functions such as Peak Shaving and up 8 programmable timetable strips 24/7, automatically coordinating control support diesel generators, heat pumps and smart charges (Smart Load).

IP66 industrial protection, intelligent fan and scalability up to 150kW

The outer housing of the Hit-15l-g3 it has a sealing certificate Ip66, ensuring total insulation against powder and powerful water jets at high pressure for indigenous installations. To efficiently manage its large volume of power, it incorporates a system of refrigeration by smart fan (Smart fan) that self-regulates the working temperature with reduced sound emissions (less than 60 dB).

In larger projects, this model admits the parallelization of up to 10 units both on network-connected systems and in isolated applications (Off-grid). Includes a complete package of electrical protections with cC Type II and CA Type II overvoltage, monitoring of insulation resistance, protection against reverse polarity of the FV chain and residual current supervision RCD. To review electrical, manual and specialized content schemes written by engineers, it enters the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles Hit-15l-g3

• Nominal output power AC / Backup: 15,000 W (three-phase 3L / N / PE, 380V / 400V)

• Maximum apparent power of exit AC: 16,500 VA

• Maximum recommended photovoltaic power (PMAX): 30,000 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 300 A / 300 A

• Number of MPPT / Strings followers by MPPT: 4 independent MPPT / 4 inputs (1 + 1 + 1 + 1)

• Maximum PV input current per MPPT: 20 A / 20 A / 20 A / 20 A

• Maximum short circuit current (ISC): 30 A / 30 A / 30 A / 30 A

• Maximum PV input tension: 1,000 V

• Nominal voltage of PV input: 720 V

• System start voltage: 150 V

• MPPT voltage range: 150 V to 900 V

• Maximum efficiency / European efficiency: 98.50% / 98.00%

• Battery discharge efficiency A CA: 95,70%

• Follow-up efficiency MPPT: 99,90%

• Backup switching time (UPS):

• Apparent power peak in backup: 30,000 goes for 10 seconds

• Exit imbalance in CA: 100% unbalanced (up to 50% nominal power per phase)

• Maximum output current AC: 25

• Maximum continuous AC bypass: 50 a

• Degree of protection of the chassis: IP66 (suitable for aperture)

• Refrigeration system / sound level: Intelligent fan (Smart fan/ /

• Physical dimensions (wide x high x deep x): 539 x 696 x 232 mm

• Net weight of the team: 41.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: Type II / CA CC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What operating advantage of 4 MPPT followers suppose Hoymiles Hit-15l-g3?

They allow structuring the photovoltaic field in up 4 roof skirts or different orientations. This optimizes solar use in complex industrial or residential covers, eliminating losses caused by shadows or inclination differences.

2. How does the 100% unbalanced output work in a three-phase network?

This function redistributes energy in real time according to the demand of each phase, being able to supply up to 50% of the rated power (7,500 W) to a single phase when the load so requires it.

3. Can this be used inverter three-phase 15kw with 48V batteries?

Yes, it works on a wide range of battery voltage 40V to 60V and adapts self-adaptable to the BMS of lithium or lead-acid batteries by means of a communication port CAN.

4. What happens with the burden of the company if a cut occurs in the power supply?

The backrest port switches to Isolated mode at a time lower than 10 ms. By offering this response time level UPS/SAI, Computers, machinery and servers continue to run without restart.
