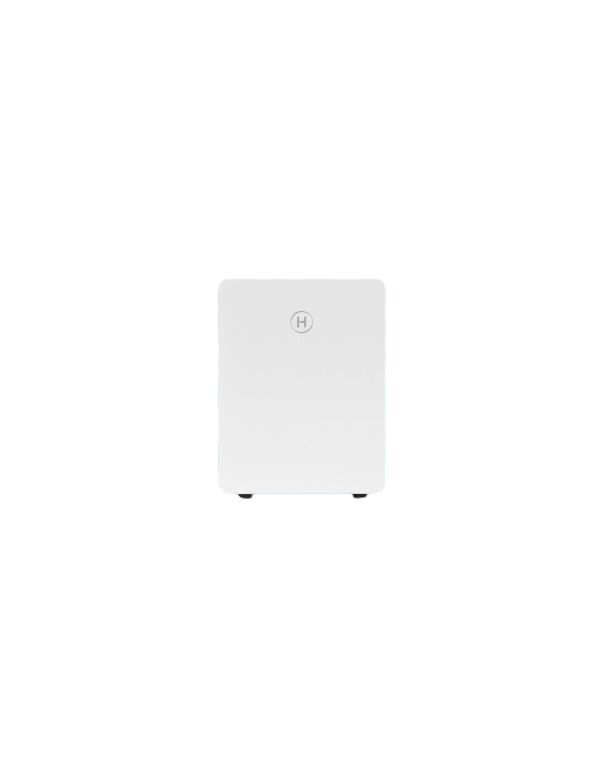

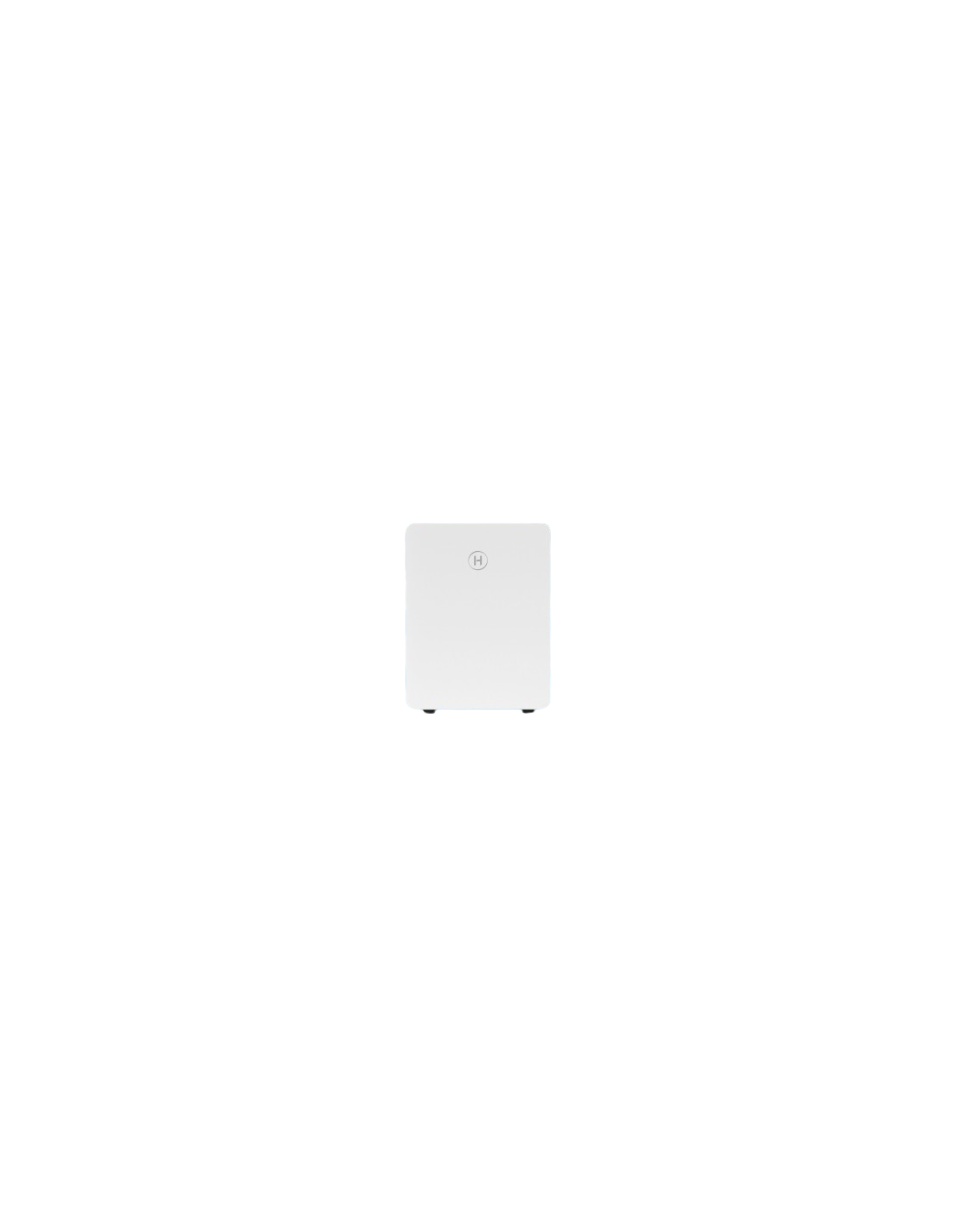

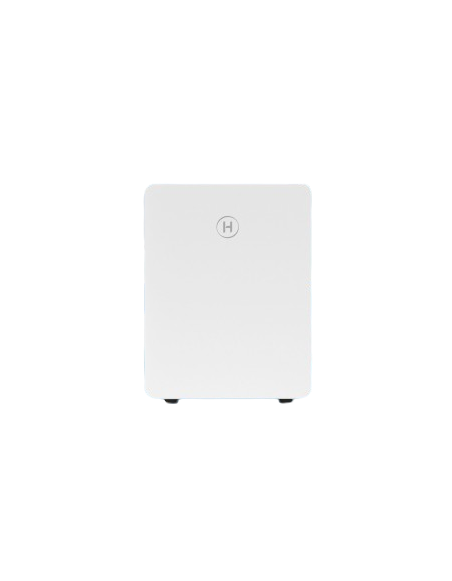

Hybrid Inverter Hoymiles Single-phase 6kw HiOne-6S-G3

Benefits Hybrid Inverter Hoymiles HiOne-6S-G3

The HiOne-6S-G3 is part of a new generation of inverters hybrid of Hoymiles, designed as modular system all on one by the battery HiOne-8B-G3, Stackable at the same team tower. One of its most differential features is the ability of overdimensioned DC / AC up to 200%, which allows you to connect a power of solar very superior to the nominal output power of the inverter, taking full advantage of solar generation even under conditions of low irradiation.

Their 3 independent MPPT, with a range of tension 50 to 550V and up Maximum current per entry, Facilitate adaptation to different roof orientations or String configurations, something especially useful in complex covers with several inclinations or orientations.

In the Security section, it incorporates a system AFCI (Arc Fault Circuit Interrupter) that actively detects possible electrical arcs in the installation, preventing fire risks, a function that not all inverters hybrid of the market offer as standard.

Reinforced off-grid output and start-up charging boot

The HiOne-6S-G3 admits a power peak in isolated mode (OFF-GRID) up to 150% of its nominal power for 10 seconds, which facilitates the start of appliances with motor or inductive loads (such as water pumps, air conditioners or refrigerators) without the need to oversize the equipment. This feature is especially valuable in installations with energy backup function, where starting this type of loads is usually a regular bottleneck in inverters conventional.

Compatible modular battery: HiOne-8B-G3

The HiOne-6S-G3 it is compatible with the lithium battery HiOne-8B-G3, a module of 8 KWh of Total Energy (7.8 kWh useful) cells LIFEPO4 of 314 AH, that can be stacked up 4 units per tower and combine in 2 towers in parallel, allowing to scale the storage capacity in a modular way integrated in the same furniture as the inverter. Your self-catency system allows operating in cold climates, and its degree of protection Ip66 it enables the installation both inside and abroad.

Detailed technical characteristics

Battery:

• Type of compatible battery: Li-ion
• Battery voltage range: 390 to 550 V
• Compatible battery model: HiOne-8B-G3
• Number of admitted modules: 1 to 8

Solar Entrance (PV):

• Maximum recommended FV power: 12,000 W
• Maximum input voltage: 600 V
• Nominal voltage: 390 V
• Starting voltage: 70 V
• MPPT voltage range: 50 to 550 V
• Maximum input current: 18 A (× 3)
• Maximum short circuit: 27 A (× 3)
• Number of MPPT / maximum Strings: 3/3

AC output:

• Nominal output power: 6,000 W
• Maximum apparent power on-grid: 6,000 VA
• Maximum output current: 27.3 a
• Maximum apparent power OFF-GRID: 9,000 goes for 10 s (Requires Gateway Hoymiles)
• Network form: L / no / PE
• Nominal output voltage: 220/230/240 V
• Nominal network frequency: 50/60 Hz
• Power factor: > 0.99 (0.8 in advance - 0.8 in delay)
• THDI (at nominal power):

Efficiency:

• Maximum efficiency: 98,0%
• EF EFFICIENCY: 97,5%

Protection:

• Anti-Isla Protection: Integrated
• Protection against reverse polarity in Strings PV: Integrated
• Detection of insulation resistance: Integrated
• Residual current monitoring: Integrated
• Protection against AC overcurrent: Integrated
• Protection against CA short: Integrated
• Protection against overvoltage and AC sub-tension: Integrated
• Surge protection: DC Type II / AC Type II

General information:

• Dimensions (an × prof): 620 × 360 × 255 mm
• Weight: 24.5 kg
• Assembly: Mural or in soil
• Operating temperature: -30 ° C A + 65 ° C (derateo above 45 ° C)
• Relative humidity: 0-95%, without condensation
• Refrigeration: Natural convection
• Topology: No isolation (no isollation)
• Maximum altitude: ≤4,000 m
• Degree of protection: Ip66
• User interface: LED and app
• Communication: RS485, Bluetooth, Wi-Fi / Ethernet / 4G (optional)
• Warranty: 10 years

Certifications and regulations:

• Network connection standard: EN 50549-1 / -10, NF EN 50549-1 / -10, CEI 0-21, AS / NZS 4777.2, PEA / MEA, Tor Erzeuger Type A, NTS 631, UNE 217001, UNE 217002
• Standard Safety / EMC: IEC / EN 61000-6-1 / -2 / -3 / -4, EN 62920, IEC / EN 62109-1 & 2

Frequently Asked Questions (FAQ)

1. What battery can I connect to HiOne-6S-G3?

It is compatible with the lithium battery modular HiOne-8B-G3, of 8 kwh per module, stack up 4 units per tower and combinable in 2 towers in parallel, integrating in the same furniture as the inverter.

2. What does the oversized DC / AC mean 200%?

Allows you to connect a power of solar up to twice the nominal output power of the inverter, taking better the solar generation in low irradiation conditions or facilities with non-optimal orientations.

3. Can you start appliances with motor in isolated mode (OFF-GRID)?

Yes. Admits a pOWER PICO OFF-GRID of up to 150% of its nominal power for 10 seconds, which facilitates the start of inductive loads such as water pumps or compressors without the need to oversize the equipment.

4. What is AFCI and why is it important?

The AFCI (Arc Fault Circuit Interrupter) it is a protection system that actively detects possible electrical arcs in the installation wiring, cutting the supply to prevent fire risks, an additional safety layer versus inverters without this function.

5. Is it suitable for outdoor installation?

Yes, it has a degree of protection Ip66 and a range of operating temperature of -30 ° C A + 65 ° C (with derateo above 45 ° C), admitting mural assembly or in soil both indoors and outdoor.

6. How is the operation of the inverter?

Through its interface LED and app, with communication RS485, Bluetooth, Wi-Fi, Ethernet or 4G (Optional), which allows to remotely monitor solar production, battery status and energy management strategies from Smart EMS integrated.
