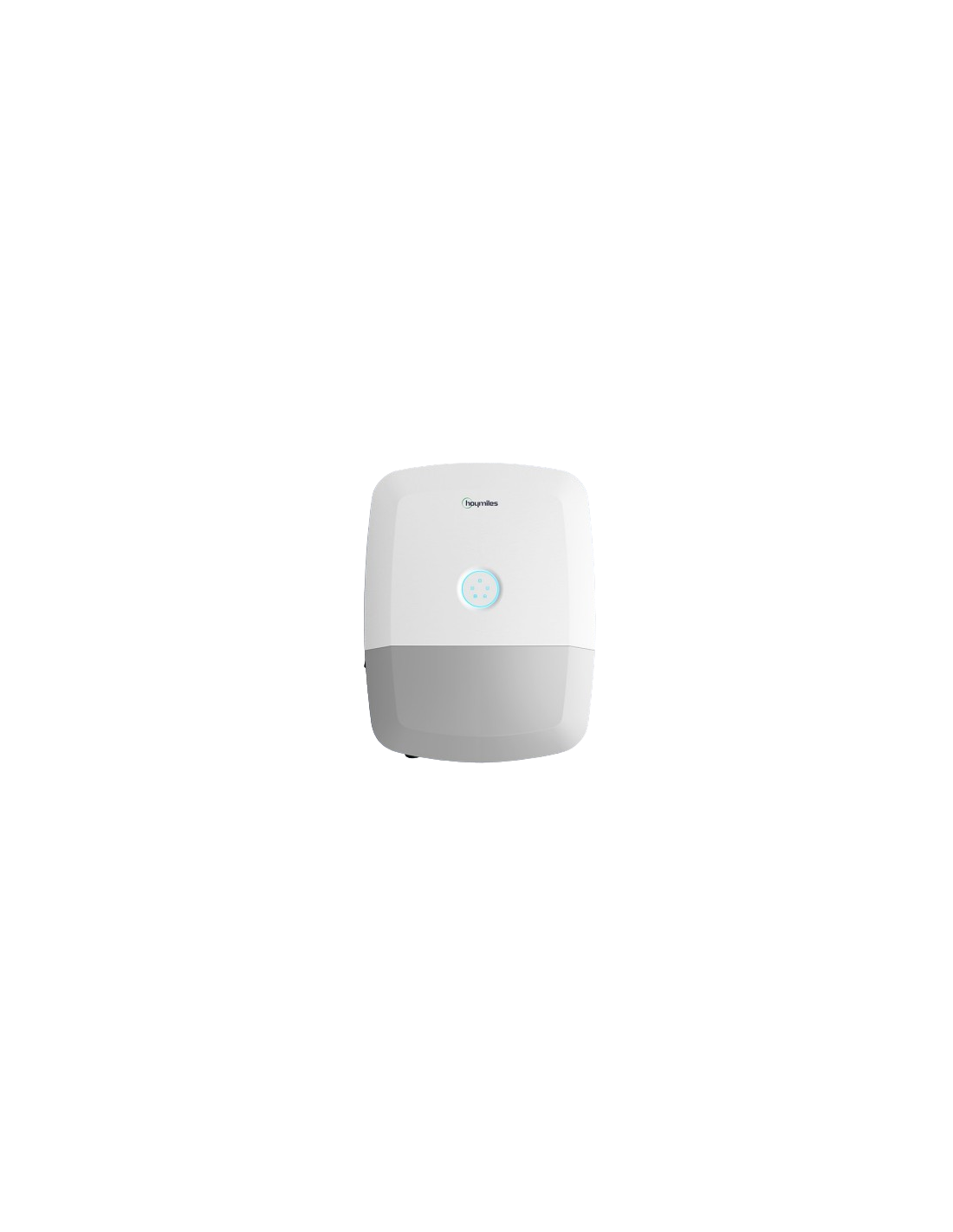

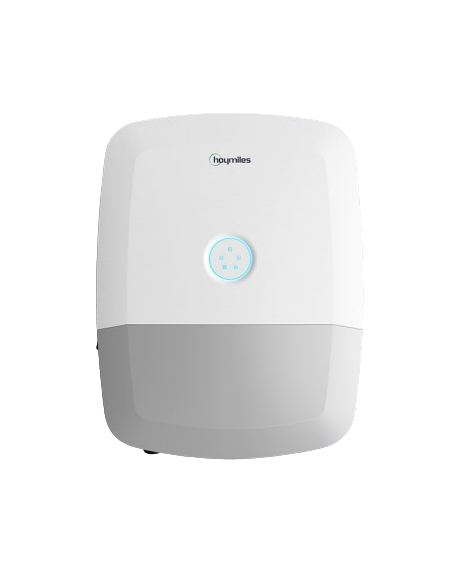

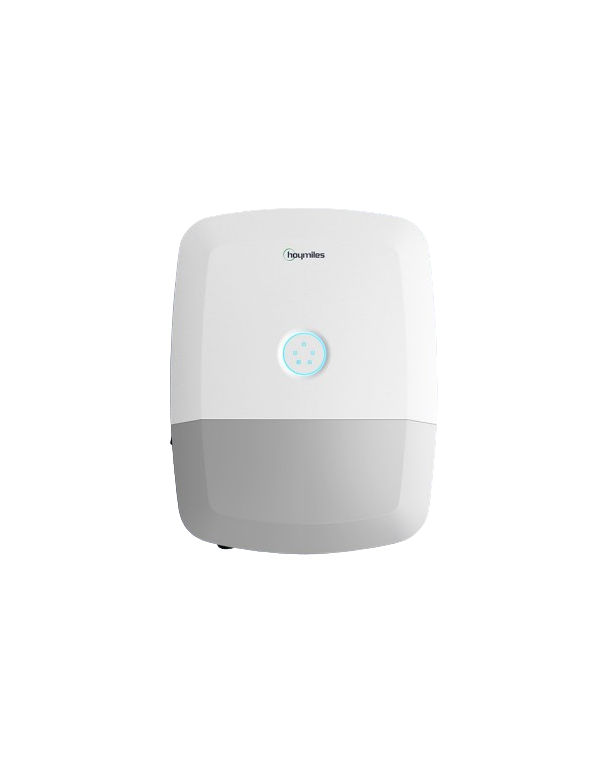

Hybrid Inverter Three-phase Hoymiles 10kw Hit-10L-G3

Benefits Hybrid Inverter Three-phase Hoymiles 10kw Hit-10L-G3

The inverter Hoymiles Hit-10l-g3 Stresses in the market by combining a large capacity for conversion in three-phase with the economic competitiveness of low voltage accumulation systems. With a weight of solo 41 kg and compact dimensions of 539 x 696 x 232 mm, It is easily installed on the wall without the need for complex infrastructures. Opera with a bus of 48V batteries (40V range to 60V), drastically reducing the total cost of the storage system against high-voltage alternatives, maintaining self-adaptable bus communication Can With the BMS of the accumulators.

Admits a photovoltaic oversizing capacity of Up to 200% (20,000 WP photovoltaic), which maximizes performance and energy collection in cold stations or days with diffuse radiation. Its topology without transformer reaches a Maximum efficiency of 98.2%, a European efficiency of 97.6% and one 99.9% MPPT tracking efficiency. By combining this model with solar panels mounted solar guaranteed, customers Tienda Solar They obtain a solid and profitable self-consumption solution.

100% unbalanced output, extraordinary load of 210A and uninterrupted backrest

One of the greatest advantages of Hit-10l-g3 is your ability to provide a 100% exit Embalanced between phases, being able to supply up to 50% of its nominal power (5,000 W) in a single phase. This resolves the usual consumption decompensations in residential or commercial three-phase installations. Its powerful stage conversion stage manages a Current loading and constant discharge of up to 210 A, accelerating the recharge of the lithium batteries During the hours of maximum solar production.

In case of falls from the electrical distribution network, the backup output reacts with a Switching time less than 10 ms, functioning as a system SAI/UPS high-speed. It also offers a Apparent power peak in 20,000 is going for 10 seconds. Its system Energy management by integrated AI Supports strategies Peak Shaving and up 8 Configurable time slots 24/7, automatically coordinating control Support diesel generators, heat pumps or smart charges (Smart Load).

Degree of protection IP66, silent dissipation and scalability

The industrial envelope of the Hit-10l-g3 It has protection certification Ip66, offering maximum resistance to dust and high pressure water jets for weathering facilities. By means of its advanced system of Natural Convection Refrigeration, the equipment operates ultrasilely standing under the 45 dB.

For industrial or commercial facilities that require a greater scale, it allows the Parallel connection of up to 10 inverters both connected to network and in isolated mode (Off-grid). Includes Series Protection against Type II CC Overvoltage and CA Type II, Insulation Resistance Detection, protection against reverse polarity of the FV chain and residual current supervision RCD. To consult user manuals, connection diagrams and specialized articles written by experts, it enters the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles Hit-10l-g3

• Nominal output power AC / Backup: 10,000 W (three-phase 3L / N / PE, 380V / 400V)

• Maximum apparent power of exit AC: 11,000 VA

• Maximum recommended photovoltaic power (PMAX): 20,000 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 210 A / 210 A

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)

• Maximum PV input current per MPPT: 20 a / 20

• Maximum short circuit current (ISC): 30 a / 30 a

• Maximum PV input tension: 1,000 V

• Nominal voltage of PV input: 720 V

• System start voltage: 150 V

• MPPT voltage range: 150 V to 900 V

• Maximum efficiency / European efficiency: 98.20% / 97.60%

• Follow-up efficiency MPPT: 99,90%

• Backup switching time (UPS):

• Apparent power peak in backup: 20,000 goes for 10 seconds

• Exit imbalance in CA: 100% unbalanced (up to 50% nominal power per phase)

• Maximum output current AC: 16.7 a

• Maximum continuous AC bypass: 50 a

• Degree of protection of the chassis: IP66 (suitable for aperture)

• Sound emission level:

• Physical dimensions (wide x high x deep x): 539 x 696 x 232 mm

• Net weight of the team: 41.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: Type II / CA CC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What advantages does the 100% unbalanced output from Hoymiles Hit-10l-g3?

It allows to balance the unequal loads of the three-phase network, delivering up to 50% of the nominal power (5,000 W) in a single phase When the point demand requires.

2. Is it possible to connect 48V lithium or lead-acid batteries to this inverter?

Yes, it works in a voltage range 40V to 60V and adapts by port communication Can Direct with batteries BMS, Putting the accumulation costs.

3. How does management by ia for external automations work?

By their ports 2xdi and 2xdo, the intelligence of the equipment can order the automatic ignition of a Diesel auxiliary generator, derive surplus to a heat pump or manage secondary loads (Smart Load).

4. What happens with the installation if the main electrical network fails?

The inverter switches to the backup output in less than 10 ms. Thanks to its speed type UPS/SAI, Electronic devices and essential loads continue to operate without interruption.

5. What other conversion and storage equipment are offered in Tienda Solar?

On Tienda Solar We have a wide catalog of Inverters solar, including Microinverters, inverters hybrid single-phase and three-phase, Inverters Networking Direct and stationary batteries Gel batteries or Inverters AGM.
