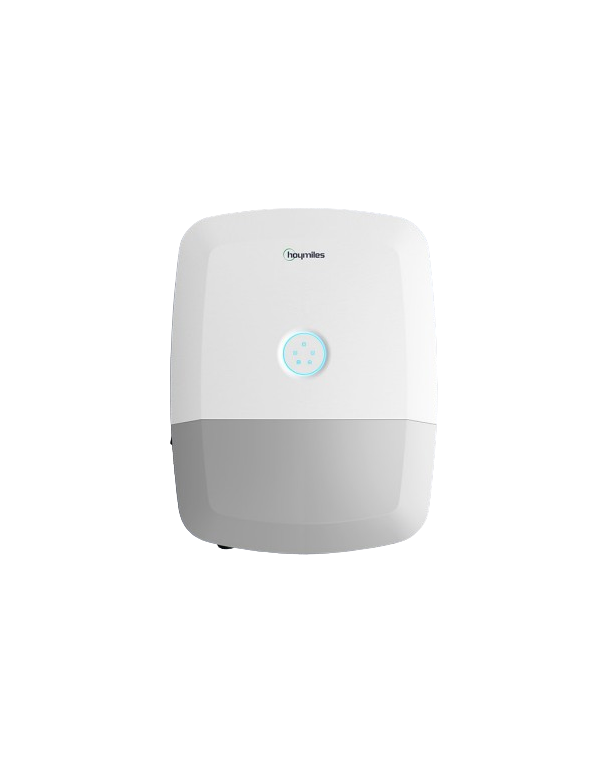

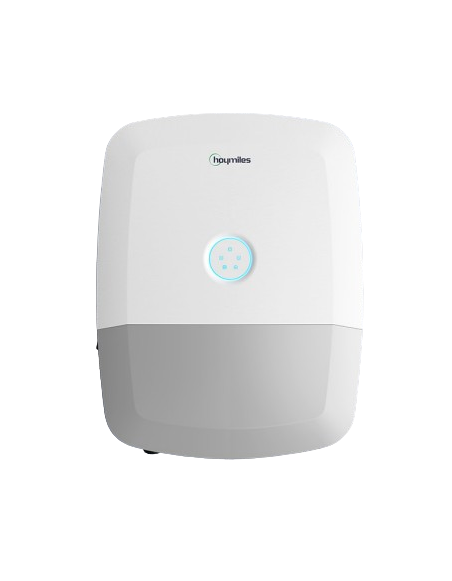

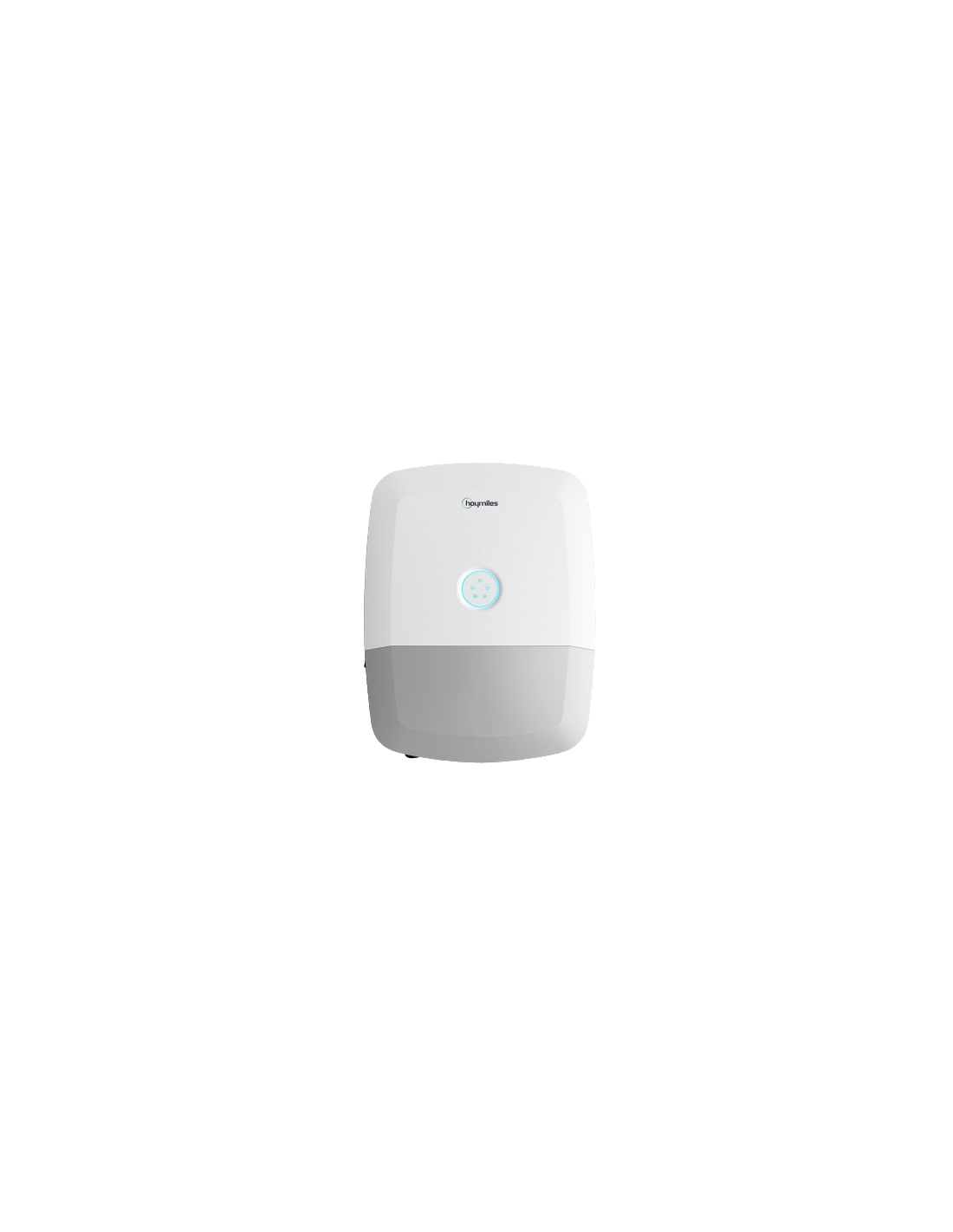

Hybrid Inverter Three-phase Hoymiles 8kw Hit-8L-G3

Benefits Hybrid Inverter Three-phase Hoymiles 8kw Hit-8L-G3

The inverter Hoymiles Hit-8l-g3 stresses in the Solar Energy sector by combining a remarkable three-phase conversion power with an architecture adapted to low voltage storage. With a weight of solo 41 kg and some dimensions of 539 x 696 x 232 mm, It allows a quick and simple wall assembly. Work with a bus 48V batteries (40V range to 60V), significantly reducing accumulation costs against high voltage systems and guaranteeing self-adaptable management via communication CAN with the most advanced BMS.

Supports an oversizing in a continuous current of up to 200% (16,000 WP photovoltaic), which allows maximizing production in winter or for cloudy days. Its topology without transformer reaches a maximum efficiency of 98.2%, a european efficiency of 97.6% and a 99.9% MPPT follower performance. By combining this model with solar panels set structures for solar resistant, the online store Tienda Solar ensures efficient, safe and long-durable installations.

100% unbalanced output, load of 190a and mode SAI Uninterrupted

A differential advantage of Hit-8l-g3 is your ability to provide a 100% unbalanced output, allowing to derive up to 50% of its nominal power (4,000 W) to a single phase. This balances consumption differences between the phases of the property without compromising overall performance. Its powerful battery circuit manages up to 190 A load and continuous discharge, speeding up filling the lithium batteries during the hours of greater solar radiation.

Inserting interruptions in the electric distribution network, the support port acts in a switching time less than 10 ms, offering continuity as a system SAI/UPS high-speed. It also provides a apparent power peak in 16,000 is going for 10 seconds. Its system energy management by integrated AI includes operational modes such as Peak Shaving and 8 Configurable Time Strips, manage automatically externally diesel generators, heat pumps or smart charges (Smart Load).

Degree of protection IP66, Silent cooling and parallelization

Your Industrial Chassis is designed with sealing certification Ip66, protecting internal electronics against dust intrusion and high pressure water jets in weather facilities. Equipped with a system of natural Convection Refrigeration, it maintains the noise level below the 45 dB, guaranteeing a silent operation.

For projects with greater energy demand, it allows the parallelization of up to 10 units both in network and in isolated mode (Off-grid). Includes a complete block of security with protection against Type II CC Overvoltage and CA Type II, Isolation detection, protection against reverse polarity of FV Strings and residual current supervision RCD. If you need to know installation schemes and practical guides written by professionals, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles Hit-8l-g3

• Nominal output power AC / Backup: 8,000 W (three-phase 3L / N / PE, 380V / 400V)

• Maximum apparent power of exit AC: 8,800 VA

• Maximum recommended photovoltaic power (PMAX): 16,000 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 190 A / 190 A

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)

• Maximum PV input current per MPPT: 20 a / 20

• Maximum short circuit current (ISC): 30 a / 30 a

• Maximum PV input tension: 1,000 V

• Nominal voltage of PV input: 720 V

• System start voltage: 150 V

• MPPT voltage range: 150 V to 900 V

• Maximum efficiency / European efficiency: 98.20% / 97.60%

• Follow-up efficiency MPPT: 99,90%

• Backup switching time (UPS):

• Apparent power peak in backup: 16,000 goes for 10 seconds

• Exit imbalance in CA: 100% unbalanced (up to 50% nominal power per phase)

• Maximum output current AC: 13.3 a

• Maximum continuous AC bypass: 50 a

• Degree of protection of the chassis: IP66 (suitable for aperture)

• Sound emission level:

• Physical dimensions (wide x high x deep x): 539 x 696 x 232 mm

• Net weight of the team: 41.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: Type II / CA CC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What advantages does the 100% unbalanced output in a three-phase network?

This function allows to supply unequal consumption between the three phases without losing performance or decompetitioning the inverter, injecting up to 50% of the nominal power (4,000 W) in a single phase according to the time need of housing or business.

2. Does the Hoymiles Hit-8L-G3 with 48V low voltage batteries?

Yes, it is designed to work in an operating range of 40V to 60V, being compatible with lithium or lead-acid accumulators 48v and communicating directly via harbor CAN with Battery BMS.

3. How does the inverter before a general power supply?

The inverter automatically switches to Isolated mode at a time lower than 10 ms. Thanks to this answer UPS/SAI, Appliances, computers and video surveillance systems remain lit without suffering reboots.

4. What automatisms allows the system AA through digital outputs?

Through your ports 2xdi and 2xdo, management by IA can automatically activate a diesel auxiliary generator, derive surplus production to heat pumps or light smart secondary loads (Smart Load).

5. What other types of inverters and accumulators are offered in Tienda Solar?

In the catalog of Tienda Solar you will find options like Inverters solar, , Microinverters, , inverters hybrid, , Inverters Networking direct and stationary batteries Gel batteries or Inverters AGM.
