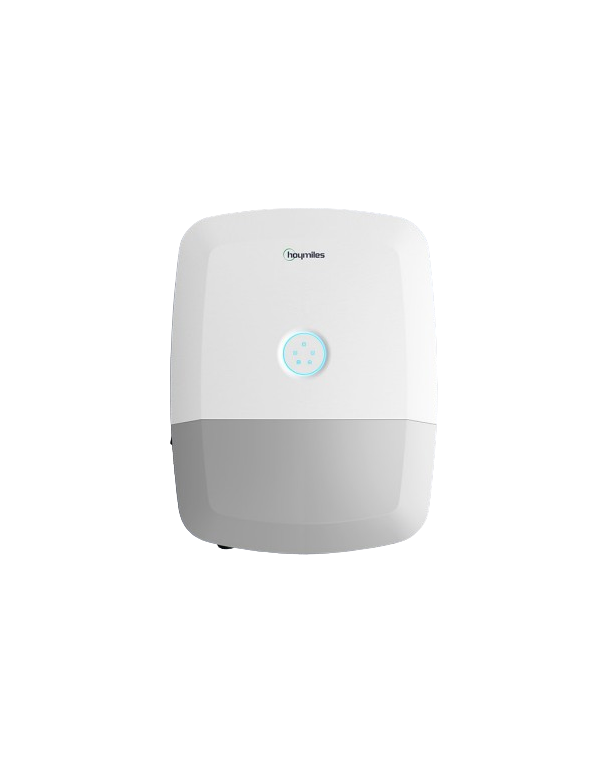

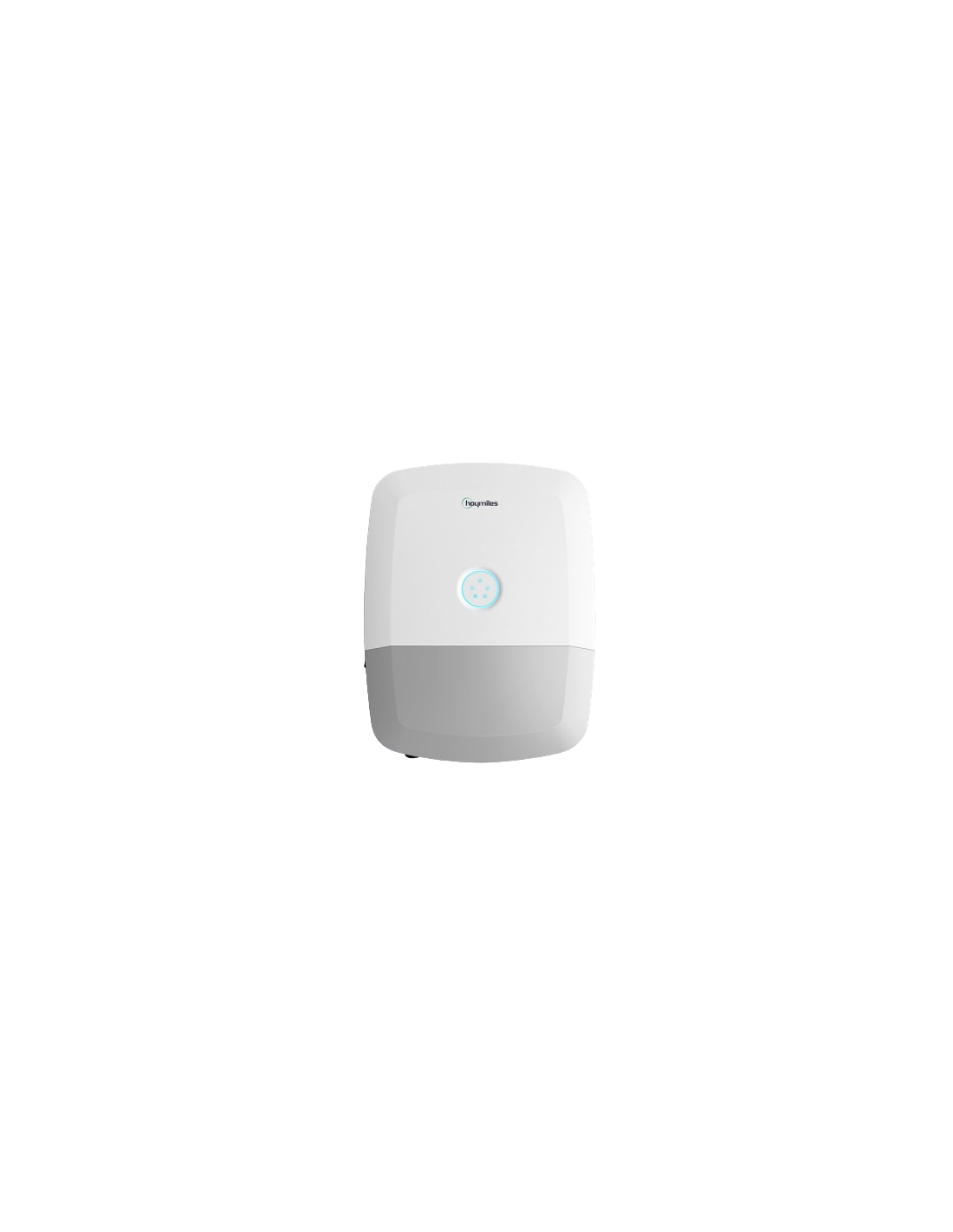

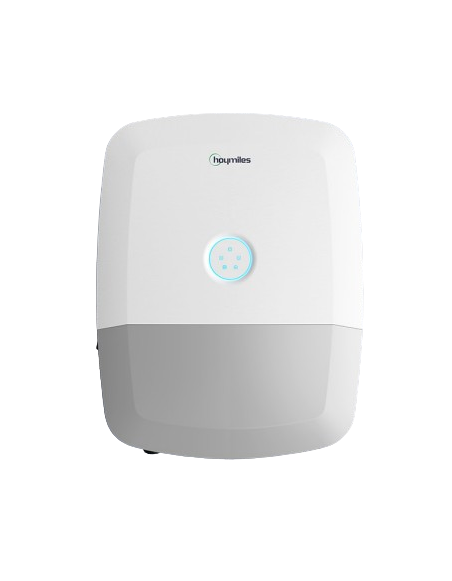

Hybrid Inverter Three-phase Hoymiles 6KW Hit-6L-G3

Benefits Hybrid Inverter Three-phase Hoymiles 6KW Hit-6L-G3

The inverter Hoymiles Hit-6l-g3 Redefines three-phase energy conversion by combining an exceptional power density with an ultralight format of only 41 kg and compact dimensions of 539 x 696 x 232 mm. Designed to operate on a bus of 48V low voltage batteries (40V functional range to 60V), this model substantially overturns investment in storage against high voltage configurations, maintaining self-optable integration via bus Can with the BMS of lithium or lead-acid accumulators.

Its ability to photovoltaic oversizing reaches a 200% in CC / C, allowing you to connect a solar field up to 12,000 wp To optimize energy collection in unfavorable radiation periods. In addition, its topology without transformer achieves a Maximum efficiency of 98.2%, a European efficiency of 97.6% and one 99.9% MPPT tracking efficiency. When combining this unit with solar panels mounted solar Fixed or high, customers Tienda Solar Maximize the energy profitability of your projects.

100% unbalanced output management, 150A load and instant backup

One of the great technical milestones of Hit-6l-g3 It is your ability to offer a 100% exit Embalanced between phases, delivering Up to 50% of the nominal power in a single phase (up to 3,000 W per phase). This benefit solves the usual load decompensations in residential and commercial facilities. Its powerful stage of accumulation handles a Freight and unloading current of 150 A, speeding up the transfer of surplus towards lithium batteries Of last generation.

In front of falls from the public network, its emergency port reacts with a Backup switching time less than 10 ms, functioning as a system SAI/UPS that supplies a apparent power peak in 12,000 is going for 10 seconds. Additionally, it has Energy management for integrated AI that supports operating modes of Peak Shaving, self-consumption and 8 Configurable time slots 24/7, natively coordinating the start of diesel generators, heat pumps and smart charges (Smart Load).

IP66 grade, passive dissipation and scalability up to 10 units

The industrial housing of the Hit-6l-g3 It has degree of protection Ip66, which guarantees a total seal before the accumulation of dust and the entry of water at high pressure in exterior facilities. Thanks to its advanced thermal design by Natural Convection (No Fans In This Model), the equipment operates with a highly low acoustic emission level (less than 45 dB).

For projects that require higher consumption, this inverter Allows the Parallel connection of up to 10 units both in network and in isolated mode (Off-grid). Its electronics incorporates integrated protections of Type II CC Overvoltage and Type II CA, Insulation Resistance Detection, protection against reverse polarity and residual current supervision RCD. To deepen connecting schemes and technical guides written by specialists, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles Hit-6l-g3

• Nominal output power AC / Backup: 6,000 W (three-phase 3L / N / PE, 380V / 400V)

• Maximum apparent power of exit AC: 6,600

• Maximum recommended photovoltaic power (PMAX): 12,000 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 150 A / 150 A

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)

• Maximum PV input current per MPPT: 20 a / 20

• Maximum short circuit current (ISC): 30 a / 30 a

• Maximum PV input tension: 1,000 V

• Nominal voltage of PV input: 720 V

• System start voltage: 150 V

• MPPT voltage range: 150 V to 900 V

• Maximum efficiency / European efficiency: 98.20% / 97.60%

• Follow-up efficiency MPPT: 99,90%

• Backup switching time (UPS):

• Apparent power peak in backup: 12,000 goes for 10 seconds

• Exit imbalance in CA: 100% unbalanced (up to 50% nominal power per phase)

• Maximum output current AC: 10 a

• Maximum continuous AC bypass: 50 a

• Degree of protection of the chassis: IP66 (suitable for aperture)

• Sound emission level:

• Physical dimensions (wide x high x deep x): 539 x 696 x 232 mm

• Net weight of the team: 41.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: Type II / CA CC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What benefit does the 100% unbalanced output contribute in the Hoymiles Hit-6l-g3?

It allows to feed three-phase and single-phase charges decompensated in the housing or company without problems, delivering up to 50% of the nominal power of the inverter in a single phase (up to 3,000 W).

2. Is it possible to install this inverter Threesome with 48V low voltage batteries?

Yes, it works with a battery voltage range 40V to 60V, allowing us to take advantage of the economy of batteries 48v In lithium or lead-acid Connected by communication Can Direct with the BMS.

3. How does management acts by the housing automation?

Intelligent algorithm optimizes the use of energy according to 8 slots. By their ports 2xdi and 2xdo, start automatically a auxiliary generator, surfing surplus to a heat pump or turn on secondary loads (Smart Load).

4. What happens with sensitive equipment when the electrical network is interrupted?

Thanks to its backup switching time less than 10 ms, the inverter Pass in an isolated manner without computers, servers or appliances note the supply interruption.
