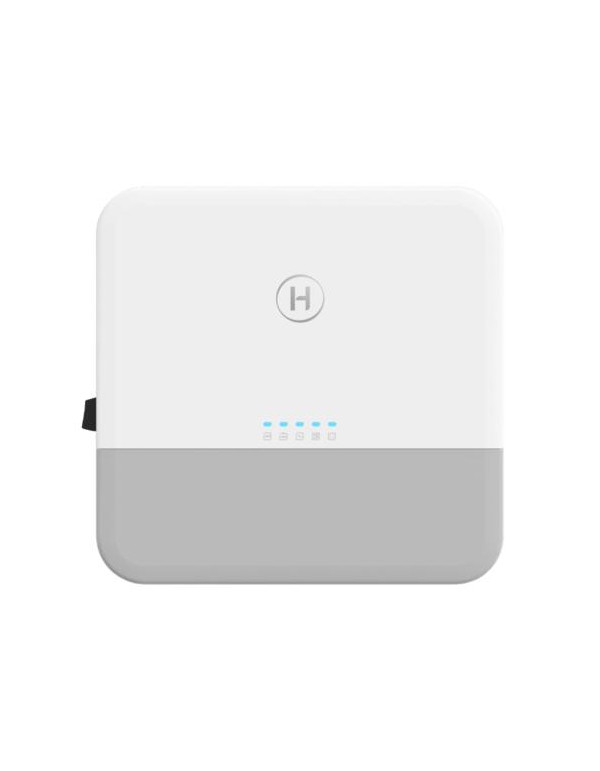

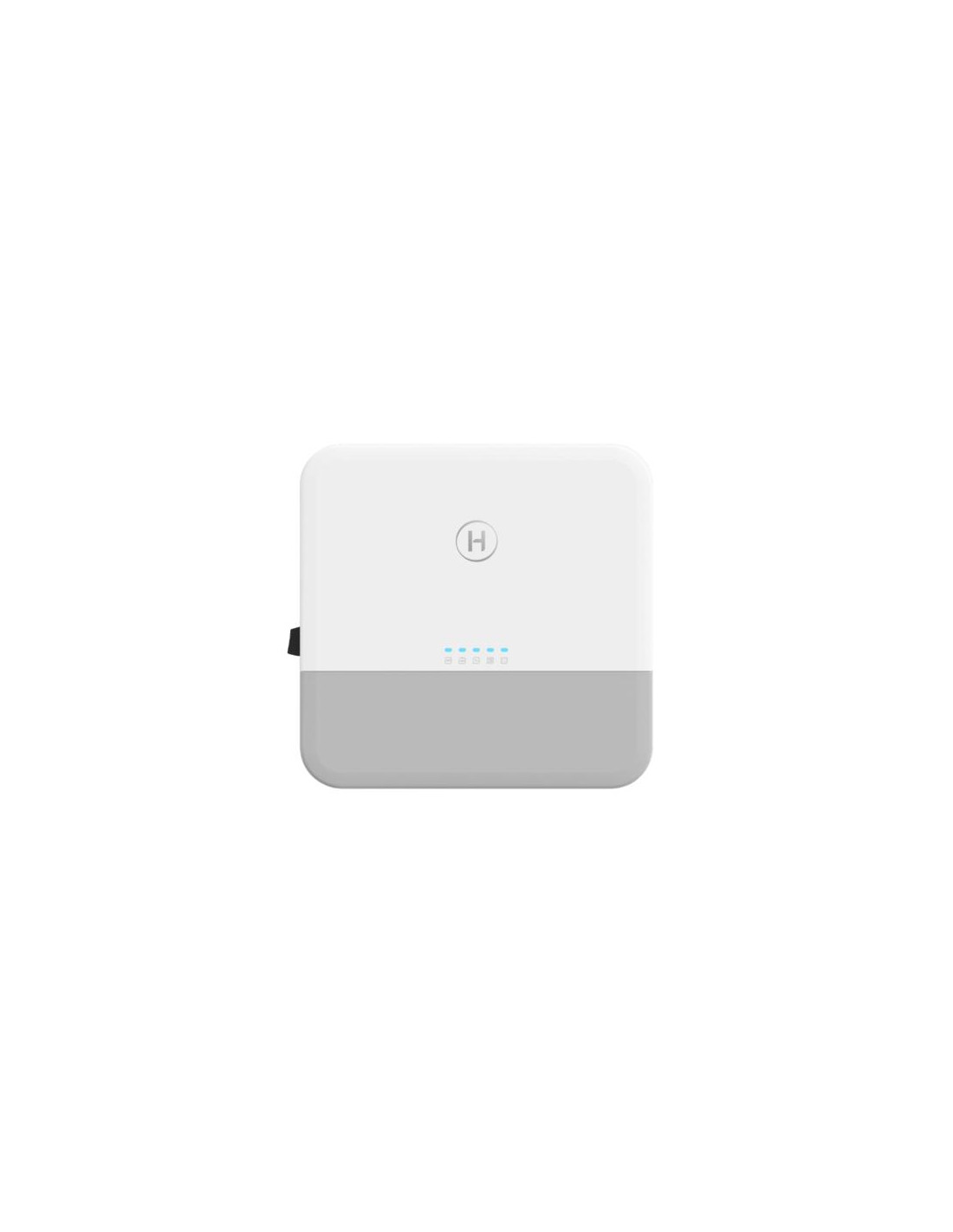

Hybrid Inverter Hoymiles Single-phase 5kw HIS-5L-G3

Benefits Hybrid Inverter Hoymiles HIS-5L-G3

The HIS-5L-G3 Highlights in front of others inverters hybrid of its range for combining a MPPT efficiency of 99.9% with a Maximum efficiency of 97.7%, minimizing the conversion losses between the energy captured by solar and that stored in the battery. Your Double independent MPPT, with a range of tension 90 to 500V and up Maximum current per entry, allows to adapt the installation at different orientations of or String configurations without losing performance.

One of his most outstanding points is the function of switching backup with 0 ms response time, Comparable to a system SAI/UPS, which avoids any perceptible interruption of power supply at home before a network cutting. Combined lithium batteries compatible with this inverter, the system can maintain energy backup practically instantaneously.

The EMS system integrated with artificial intelligence automatically manages the available energy between solar generation, battery, network and consumption of the home, with direct generator integration, heat pump and smart charges (Smart Load), which makes it a particularly interesting team for facilities that seek to maximize self-consumption and apply advanced energy management strategies such as the Peak Shaving.

Smart operating modes: Peak Shaving and Time of Use

The HIS-5L-G3 incorporate as standard a mode of Peak Shaving, designed to reduce the power peaks demanded to the network using the energy stored on the battery at the moments of higher home consumption. This function is especially useful in installations where it is sought to limit the contracted power or avoid point overloads, complementing to Time discrimination (Time of Use 8 × 24h), which allows to program up to 8 daily time slots to load and download the battery according to the price of electricity at all times. Both modes are managed remotely through the platform S-Miles Cloud, along with the rest of available modes: self-consumption, economic mode and mode backup.

Scalability and compatibility

Thanks to the possibility of Connect up to 10 units in parallel, both in on-grid and off-grid configurations, the HIS-5L-G3 It allows us to expand the total power of the installation in a modular manner as the energy needs of the home or the project grow. It is compatible with Ion-lithium or lead batteries with a voltage range of 40 to 60V, adapting to different ecosystems lithium batteries of the market by means of communication Can and autoadaptation to the BMS on the connected battery.

Detailed technical characteristics

Battery:

• Type of compatible battery: Ion-lithium / lead
• Battery voltage range: 40 to 60V
• Maximum loading / unloading current: 120/120 A
• Maximum loading / unloading power: 5,000 / 5,250 W
• Load strategy for lithium batteries: AutoAdaptation to BMS
• Cargo curve: 3 stages / equalization
• External temperature sensor: Optional
• Communication: Can

Solar Entrance (PV):

• Maximum recommended FV power: 10,000 W
• Maximum input voltage: 550 V
• Nominal voltage: 360 V
• Starting voltage: 100 V
• MPPT voltage range: 90 to 500 V
• Maximum input current: 18 a
• Maximum short circuit: 27 a
• Number of MPPT / maximum Strings: 2/2

AC input and output (network connection):

• Nominal output power: 5,000 W
• Maximum apparent output power: 5,500 VA
• Maximum current of continuous AC bypass: 50 a
• Network form: L / no / PE
• Soltage / Nominal AC output range: 220V (154-264V), 230V (161-276V), 240V (168-288V)
• Nominal network frequency: 50/60 Hz
• Maximum output current: 25 a
• Power factor: > 0.99 (0.8 in advance - 0.8 in delay)

AC output (mode backup):

• Nominal output power: 5,000 W
• Maximum apparent output power: 10,000 goes for 10 s
• Switching time backup: 0 ms
• Network form: L / no / PE
• Nominal output voltage: 220/230/240 V
• Nominal output frequency: 50/60 Hz
• Maximum current of continuous output: 22.7 a
• THDV (with linear load):

Efficiency:

• MPPT efficiency: 99,9%
• Maximum efficiency: 97,7%
• EF EFFICIENCY: 97,0%

Protection:

• Anti-Isla Protection: Integrated
• Protection against reverse polarity in Strings PV: Integrated
• Detection of insulation resistance: Integrated
• Residual current monitoring: Integrated
• Protection against AC overcurrent: Integrated
• Protection against CA short: Integrated
• Protection against overvoltage and AC sub-tension: Integrated
• Surge protection: DC Type II / AC Type II

General information:

• Dimensions (an × prof): 506 × 495 × 99 mm
• Weight: 17 kg
• Assembly: Mural (wall)
• Operating temperature: -25 ° C A + 65 ° C (deerate above 45 ° C)
• Relative humidity: 0-95%, without condensation
• Refrigeration: Natural convection
• Topology (Solar / Battery): No transformer / high frequency insulation
• Maximum altitude: ≤4,000 m
• Degree of protection: Ip66
• Noise:
• User interface: LED, App
• Digital Tickets / Outputs: DRM, 2 × di, 2 × do
• Communication: RS485, Wi-Fi / Ethernet (optional)

Certifications and regulations:

• Network connection standard: G98, G99, G100, EN 50549-1 / -10, NF EN 50549-1 / -10, CEI 0-21, PEA, MEA, IEC 62116, IEC 61727, IEC 60068, IEC 61683, DEWA
• Standard Safety / EMC: IEC 62109-1 / -2, EN 61000-6-1 / -2 / -3 / -4

Frequently Asked Questions (FAQ)

1. What kind of batteries can I connect to HIS-5L-G3?

It is compatible with Ion-lithium or lead batteries within a voltage range of 40 to 60V, with communication Can and automatic autoadaptation to the BMS of the battery, which facilitates its integration with a wide variety of lithium batteries of the market

2. How does the Peak Shaving mode of this work inverter?

Way Peak Shaving It uses the energy stored in the battery to cover the peaks of higher demand from the home, reducing the power requested to the network at those point. It is especially useful for limiting the contracted power or avoiding overloads in facilities with high consumption in specific times.

3. What happens if a power supply cut occurs?

The HIS-5L-G3 commute to mode backup with a response time 0 ms, a performance level comparable to a system SAI/UPS, avoiding perceptible cuts on the equipment connected to the installation.

4. Can I expand the power of my installation in the future?

Yes. The inverter allows Connect up to 10 units in parallel, both in connected network configurations and in isolated installations (off-grid), which facilitates scaling the total power of the system as energy needs increase.

5. How is the operation of the inverter?

Through the platform S-Miles Cloud, accessible from the APP, where solar production, battery status, household consumption and configuring the different work modes can be monitored in real time (self-consumption, economic, backup, Peak Shaving and Time of Use).

6. Is it suitable for outdoor installation?

Yes, it has a degree of protection Ip66 and a range of operating temperature of -25 ° C A + 65 ° C (with derateo above 45 ° C), allowing its wall mount both indoors and in protected outdoor.
