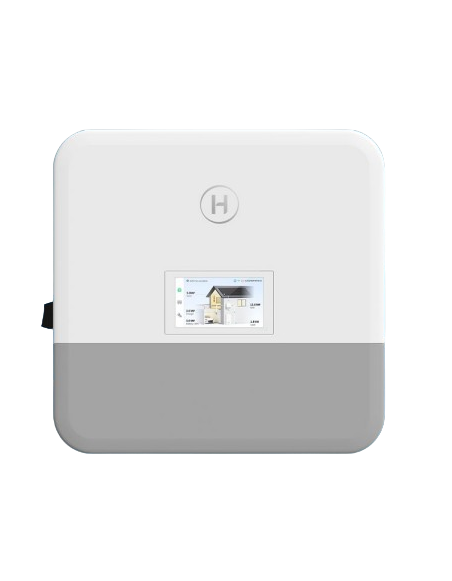

Hybrid Inverter Single-phase Hoymiles 8kw HIS-8L-G3S

Benefits Hybrid Inverter Single-phase Hoymiles 8kw HIS-8L-G3S

The inverter Hoymiles HIS-8L-G3S It represents the power cuspid within the monophasic hybrid category, offering an extraordinary combination between a compact format and higher-level energy performance. With a contained depth of 120 mm and a weight of 20 kg, This equipment simplifies the wall installation process without requiring heavy support structures. It works on a bus of Low Voltage Batteries 48V (40V Operating Range to 60V), which minimizes the costs of the system against high voltage alternatives, maintaining self-adaptable communication via BMS with lithium or lead-acid batteries.

Allows an outstanding solar oversizing range of up to 200%, accepting a photovoltaic field of Up to 16,000 WP power in solar plates To ensure maximum energy exploitation in winter or for days with low irradiance. Its topology without transformer reaches a Maximum efficiency of 97.5% and one 99.90% MPPT tracking efficiency. When you connect this inverter with solar panels mounted solar guaranteed, customers Tienda Solar They obtain a solid and profitable self-consumption installation.

Maximum load of 140A, backup UPS Instant 0 MS and Intelligent Management

The battery conversion stage of the HIS-8L-G3S highlights by managing a Charging and discharge current of up to 140A (reaching a Maximum load power of 8,000 W and download of 8,300 W), optimizing the fast transfer of photovoltaic surpluses towards lithium batteries.

In case of unexpected falls of the distribution network, the inverter react through its emergency output offering a Switching time 0 ms at level SAI/UPS. This answer avoids the exumpor or unwanted restart of critical loads or sensitive ofemic, delivering a Apparent power of peak in support of 16,000 goes for 10 seconds. Integrate Energy management by IA With support for strategies Peak Shaving, self-consumption and even 8 24-hour time schedules, facilitating direct control of Support diesel generators, heat pumps and smart charges (Smart Load).

IP66 grade, intelligent fan and scalability up to 80KW

Your industrial chassis is approved with the Degree of protection IP66, offering full immunity against dust and high pressure water jets in weather facilities. To efficiently manage its large power capacity of 8 kW, this model incorporates a smart fan which the unit is thermally regulating according to the operating load.

For systems with high energy demands, the team admits the Parallel connection of up to 10 inverters both network and in isolated facilities (Off-grid). Incorporates a comprehensive security deployment with Protection against Type II CC Overvoltage and CA Type II, Insulation detection, reverse polarity protection of the FV chain and RCD residual current control unit. To consult user manuals, wiring schemes and information written by technicians, it enters the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles HIS-8L-G3S

• Nominal output power AC / Backup: 8,000 W (single-phase L / N / PE, 220/230 / 240VAC)

• Maximum apparent power of exit AC: 8,000 VA

• Maximum recommended photovoltaic power (PMAX): 16,000 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 140 A / 140 A

• Maximum load power / battery discharge: 8,000 W / 8,300 W

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)

• Maximum PV input current per MPPT: 18 a / 18 a

• Maximum short circuit current (ISC): 27 a / 27 a

• Maximum PV input tension: 550 V

• Nominal voltage of PV input: 360 V

• System start voltage: 100 V

• MPPT voltage range: 90 V at 500 V

• Maximum efficiency / Follow-up efficiency MPPT: 97.50% / 99.90%

• Backup switching time (UPS): 0 ms (level SAI instant)

• Power peak in isolated mode (OFF-GRID): 16,000 goes for 10 seconds

• Maximum output current AC: 36.4 a

• Degree of protection of the chassis: IP66 (Apt for demanding weather)

• Refrigeration system: Smart fan

• Physical dimensions (wide x high x deep x): 506 x 495 x 120 mm

• Net weight of the team: 20.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: Type II / CA CC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What advantages does the response time of 0 ms in the Hoymiles HIS-8L-G3S?

When you answer in 0 ms Faced with a ruling of the main network, it works as a system SAI/UPS High Speed This guarantees that precision devices, computers or servers do not experience cuts or operational interruptions.

2. Can 48V lithium or lead-acid batteries be connected?

Yes, it operates within the voltage range of 40V to 60V And it admits both accumulation technologies. Its port Can Integrated Set direct communication with the BMS of the battery to adjust the load profile in three stages in a self-optable way.

3. How does management by AI work to control generators or heat pumps?

Through your ports 2xdi and 2xdo, the software with IA manages the activation of an auxiliary diesel generator or derives surplus towards a heat pump or secondary loads (Smart Load), allowing to configure up 8 slots daily.

4. Is it possible parallel to several inverters To expand photovoltaic power?

Yes, this model admits the Parallel connection of up to 10 units, allowing to build single-phase systems connected to network or isolated up to 80 kW of nominal power.

5. Where can I find other photovoltaic products or components in Tienda Solar?

On Tienda Solar We have a wide catalog of Inverters solar, including Microinverters, inverters hybrid, Inverters Networking Direct and stationary batteries Gel batteries or Inverters AGM.
