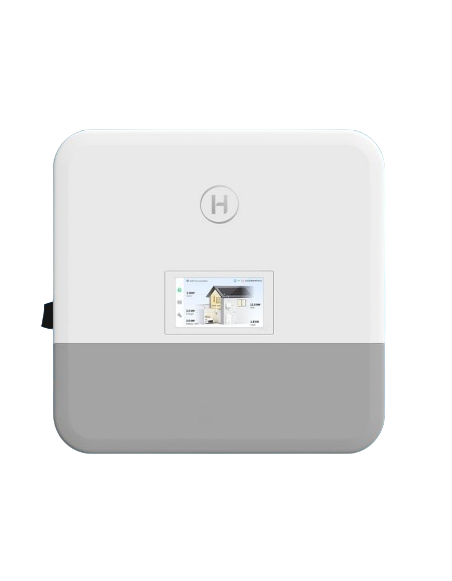

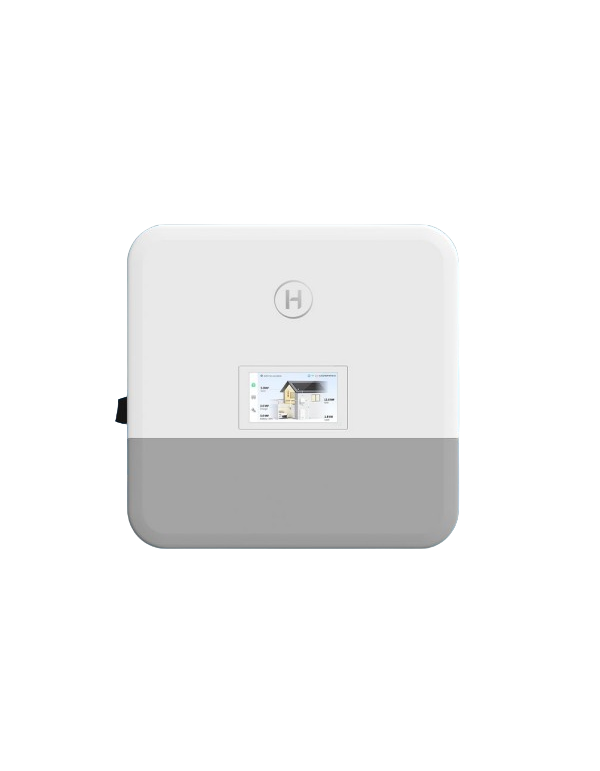

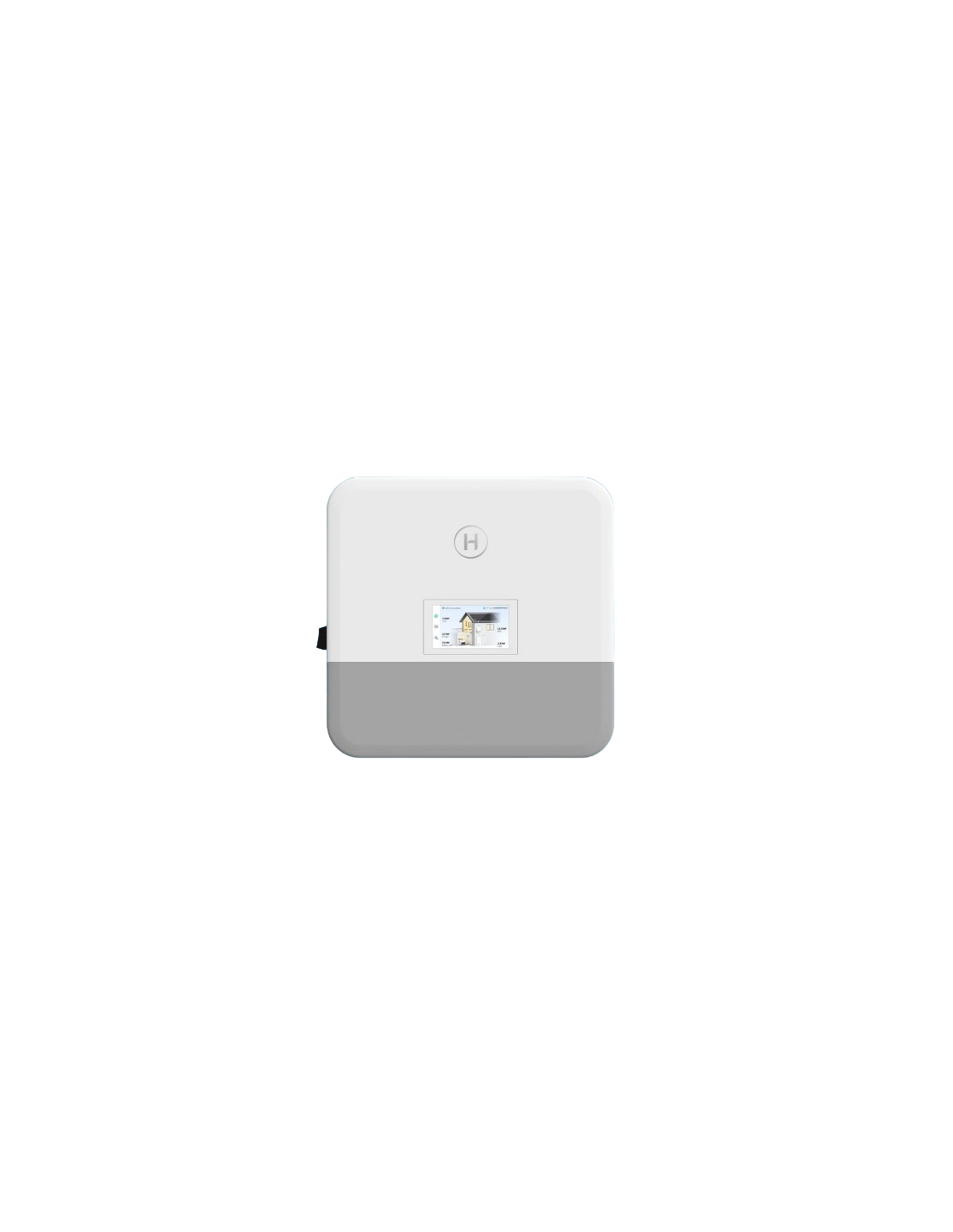

Hybrid Inverter Single-phase Hoymiles 6kw HIS-6L-G3S

Benefits Hybrid Inverter Single-phase Hoymiles 6kw HIS-6L-G3S

The inverter Hoymiles HIS-6L-G3S Lead the segment of residential single-phase self-consumption thanks to an unprecedented ultra-thin format and an advanced electrical conversion architecture. With some dimensions of only 506 x 495 x 99 mm and a weight of 17 kg, this equipment reduces wall installation times and optimizes the volume available in technical enclosures. Designed to operate on a bus of 48V low voltage batteries (40V functional range to 60V), minimizes the economic outlay against high voltage systems and integrates self-adaptable communication via BMS with lithium or lead-acid accumulators.

Its high oversizing capacity admits Up to 12,000 WP of installed solar power, guaranteeing a superior energy use even in days with reduced solar radiation. Offers a Maximum efficiency of 97.7%, a European efficiency of 97.0% and one 99.90% MPPT tracking efficiency. When you connect this inverter to solar panels set solar Certificates, customers Tienda Solar They ensure maximum profitability in their photovoltaic investment.

135A load, switching UPS Snapshot 0 ms and management by IA

The stage of accumulation of the HIS-6L-G3S administer a Maximum current of loading and unloading 135A (offering a Maximum load power of 6,000 W and download of 6,300 W), which speeds up the injection of surpluses towards lithium batteries To have energy during nightly teaching hours.

In case of falls from the electricity network, the equipment switches in an uninterrupted manner with a Switching time 0 ms at level SAI/UPS. This makes it impossible or restarted in sensitive electronic devices, counting on a apparent power peak in backup up to 12,000 goes for 10 seconds. Its technology Energy management by IA Admitted advanced operating modes (Peak Shaving, self-consumption and 8 24-hour time schedules), controlling the interaction directly with Support diesel generators, heat pumps and smart charges (Smart Load).

IP66 grade, silent refrigeration and scalability up to 60KW

The chassis of the HIS-6L-G3S Stresses by incorporating sealing certification Ip66, guaranteeing an impenetrable protection against dust entry and high pressure water jets in outdoor installations. Your Natural Convection Refrigeration System Fully dispenses from fans, keeping acoustic emissions below the 35 dB To ensure absolute comfort in the home.

For facilities with higher consumption demands, the inverter admits Parallel connection of up to 10 units Both connected to network and in isolated mode (Off-grid). Integrates complete protections with CC Type II and CA Type II overvoltage, Isolation monitoring, protection against reverse polarity and residual current supervision RCD. If you want to inform you about assembly guides or start-up manuals, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles HIS-6L-G3S

• Nominal output power AC / Backup: 6,000 W (single-phase L / N / PE, 220/230 / 240VAC)
• Maximum apparent power of exit AC: 6,600

• Maximum recommended photovoltaic power (PMAX): 12,000 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 135 A / 135 A

• Maximum load power / battery discharge: 6,000 W / 6,300 W

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)

• Maximum PV input current per MPPT: 18 a / 18 a

• Maximum short circuit current (ISC): 27 a / 27 a

• Maximum PV input tension: 550 V

• Nominal voltage of PV input: 360 V

• System start voltage: 100 V

• MPPT voltage range: 90 V at 500 V

• Maximum efficiency / European efficiency: 97.70% / 97.00%

• Efficiency of the MPPT follower: 99,90%

• Backup switching time (UPS): 0 ms (level SAI instant)

• Power peak in isolated mode (OFF-GRID): 12,000 goes for 10 seconds

• Maximum output current AC: 30 a

• Degree of protection of the chassis: IP66 (Apt for demanding weather)

• Sound emission level:

• Physical dimensions (wide x high x deep x): 506 x 495 x 99 mm

• Net weight of the team: 17.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: Type II / CA CC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What benefit does the switching of 0 ms del Hoymiles HIS-6L-G3S?

When you answer in 0 ms During a failure in the supply of network, this inverter It works like an authentic SAI/UPS. This ensures that computers, domotic systems or servers do not suffer any unwanted type of microcorte or shutdown.

2. Can 48V lithium and lead-acid batteries be connected?

Yes, it works in a voltage range of 40V to 60V and supports both accumulation technologies. Its port Can Integrated Allows a direct connection with the BMS of the battery to coordinate the loadingly loading.

3. How does control acts for the management of energy consumption?

Your IA algorithm allows you to define self-consumption priorities, manage the Peak Shaving and configure up 8 slots daily. By their ports 2xdi and 2xdo, intelligently control the activation of a support diesel generator, secondary charges (Smart Loador heat pumps.

4. The IP66 protection degree allows installation in weather?

Of course. The index Ip66 ensures total protection against fine dust and powerful water jets from any angle. In addition, as heat dissipates through natural convection, its noise level is lower than 35 dB.

5. What other investment and accumulation equipment are available in Tienda Solar?

In the catalog of Tienda Solar We have a wide range of Inverters solar, including Microinverters Hoymiles, inverters hybrid single-phase and three-phase, Inverters Networking Direct and stationary batteries Gel batteries or Inverters AGM.
