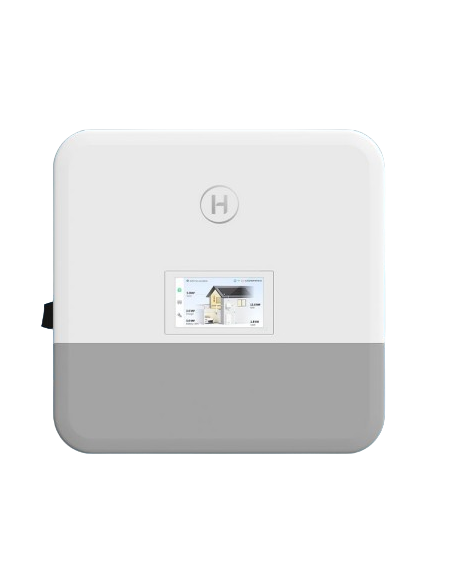

Hybrid Inverter Single-phase Hoymiles 5kw HIS-5L-G3S

Benefits Hybrid Inverter Single-phase Hoymiles 5kw HIS-5L-G3S

The inverter Hoymiles HIS-5L-G3S highlights in the residential market to combine an ultra-compact chassis with advanced energy conversion benefits. Designed with an ultra-thin structure of 506 x 495 x 99 mm and a weight of only 17 kg, significantly simplifies the wall fixing and optimizes the use of the technical space. This team operates with a bus of 48V low voltage batteries (40V functional range to 60V), which allows reducing initial investment costs against high voltage alternatives, self-adapting to the BMS of lithium or lead-acid batteries.

Supports a high level of solar oversizing, accepting up to 10,000 wp power in solar to guarantee the maximum generation even on days with low irradiance. The electronics offers a maximum efficiency of 97.7%, a european efficiency of 97.0% and a mPPT performance of 99.90%. By combining this model with solar panels set in structures for solar approved, users of Tienda Solar they ensure maximum energy efficiency.

120A load, switching UPS Snapshot 0 ms and management by IA

His accumulation stage administers a 120A loading and loading current (with a maximum load power of 5,000 W and download of 5,250 W), quickly transferring the surplus energy towards lithium batteries to dispose of it in peak consumption hours.

Before cuts of the electricity network, your backup system goes into isolated way with a switching time 0 ms at level SAI/UPS. This instant transfer prevents interruptions or restarts in sensitive electronic equipment, offering a apparent Power of Peak in 10,000 Backup is for 10 seconds. Includes energy management for integrated AI support Peak Shaving, self-consumption and even 8 24-hour time schedules, also coordinating the activation of support diesel generators, heat pumps and smart charges (Smart Load).

IP66 grade, silent dissipation and scalability up to 10 units

The envelope of the HIS-5L-G3S account with sealing certification Ip66, guaranteeing superior resistance against dust and powerful water jets in weather facilities. Your natural Convection Refrigeration it does not use noisy fans, keeping acoustic emissions below the 35 dB for ultrasilencious operation in housing.

In projects that require greater power, the inverter allows the parallel connection of up to 10 units both in systems connected to network and outside it (Off-grid). Includes protections of type II CC Overvoltage and Type II CA, protection against investment of polarity, Isolation resistance test and residual current supervision RCD. If you want to consult technical schemes, manuals and specialized items, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles HIS-5L-G3S

• Nominal output power AC / Backup: 5,000 W (single-phase L / N / PE, 220/230 / 240VAC)
• Maximum apparent power of exit AC: 5,500 VA
• Maximum recommended photovoltaic power (PMAX): 10,000 WP
• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)
• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)
• Maximum loading / battery discharge: 120 A / 120 A
• Maximum load power / battery discharge: 5,000 W / 5,250 W
• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)
• Maximum PV input current per MPPT: 18 a / 18 a
• Maximum short circuit current (ISC): 27 a / 27 a
• Maximum PV input tension: 550 V
• Nominal voltage of PV input: 360 V
• System start voltage: 100 V
• MPPT voltage range: 90 V at 500 V
• Maximum efficiency / European efficiency: 97.70% / 97.00%
• Efficiency of the MPPT follower: 99,90%
• Backup switching time (UPS): 0 ms (level SAI instant)
• Power peak in isolated mode (OFF-GRID): 10,000 goes for 10 seconds
• Maximum output current AC: 25 a
• Degree of protection of the chassis: IP66 (Apt for demanding weather)
• Sound emission level:
• Physical dimensions (wide x high x deep x): 506 x 495 x 99 mm
• Net weight of the team: 17.0 kg
• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)
• Integrated overvoltage protections: Type II / CA CC Type II Downloaders
• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)
• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. What advantages does the switching of 0 ms contribute to the Hoymiles HIS-5L-G3S?

When you answer in 0 ms before a ruling of the main network, the inverter it works as a true SAI/UPS. This avoids the interruption or unwanted restart of electronic devices, computers or telecommunications systems.

2. Is 48V low voltage batteries compatible with different technologies?

Yes, work with a voltage range of 40V to 60V and supports both lithium and lead-acid accumulators. Its port CAN it facilitates direct communication with the BMS of the battery to adjust the load parameters automatically.

3. How does control acts for the surplus and consumption management act?

Management by IA allows establishing energy priority modes, Peak Shaving and up 8 programmable schedules. Thanks to your digital outputs 2XDO and 2XDI, manage the startup of support diesel generators, heat pumps or secondary charges (Smart Load).

4. Can this equipment be located on the outside exposed to the weather?

Of course. Thanks to its level of sealing Ip66, it offers full protection against dust and pressure jets. In addition, its natural convection thermal dissipation avoids annoying noises ().

5. What other options of inverters or accumulation can I buy in Tienda Solar?

In the catalog of Tienda Solar you will find a variety of Inverters solar, including Microinverters, , inverters hybrid network, Inverters Networking direct and technology batteries Gel batteries or Inverters AGM.
