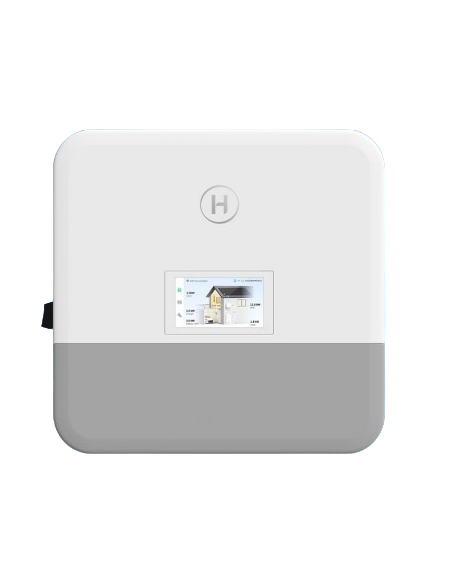

Hybrid Inverter Single-phase Hoymiles 3.6kw HIS-3.6L-G3S

Benefits Hybrid Inverter Single-phase Hoymiles 3.6kw HIS-3.6L-G3S

The inverter Hoymiles HIS-3.6L-G3S mark the difference in the residential photovoltaic market by integrating an extremely compact design with advanced energy conversion capabilities. Thanks to its ultra-thin dimensions (506 x 495 x 99 mm) and its light weight of only 17 kg, significantly simplifies wall mounting tasks and optimizes usable space. Opera on a bus of 48V low voltage batteries (40V functional range to 60V), which substantially reduces the overall cost of the system against high voltage alternatives, automatically adapting to BMS lithium and lead-acid batteries.

This model allows a high level of solar oversizing, admitting up 7,200 WP power in photovoltaic plates to ensure superior performance even under conditions of low irradiance. The power electronics offers a maximum efficiency of 97.7%, a european efficiency of 97.0% and one efficiency of the MPPT follower of 99.90%. By combining this equipment with solar panels set in structures for solar approved, customers Tienda Solar they get a robust solution and maximum energy savings.

90A load, switching UPS Snapshot 0 ms and management by IA

Your accumulation stage manages a current loading and continuous download of 90A (reaching a maximum load power of 3,600 W and download of 3,800 W), efficiently transferring the remaining production to lithium batteries for later use.

Before an interruption of the public supply, its support function commute to an isolated mode with a step time from 0 ms at level SAI/UPS. This instantaneous response guarantees that sensitive electronic equipment does not suffer restarts or tension falls, also providing a apparent power of peak in 7,360 support for 10 seconds. Incorporates a system of energy management Integrated by IA that admits smart modes as Peak Shaving, self-consumption and even 8 24-hour time schedules, coordinating direct operation with support diesel generators, heat pumps and smart charges (Smart Load).

Degree of protection IP66, Silent cooling and scalability

The chassis of the HIS-3.6L-G3S raise the industrial standard by having degree of protection IP66, offering total immunity against dust and high pressure water jets in outdoor installations. Its system natural Convection Refrigeration dispenses from noisy fans, keeping acoustic emissions below the 35 dB for an ideal integration in residential environments.

Designed for facilities with possibility of expansion, the equipment allows the parallel connection of up to 10 units both in network and in isolated mode (Off-grid). Integrates safety protections like dC Type II and AC Type II surge downloaders, protection against investment of polarity, Supervision of insulation resistance and RCD residual current monitoring. To access installation diagrams, operating guides and articles written by photovoltaic engineers, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Hoymiles HIS-3.6L-G3S

• Nominal output power AC / Backup: 3.680 W (single-phase L / N / PE, 220/230 / 240VAC)

• Maximum apparent power of exit AC: 3.680 VA

• Maximum recommended photovoltaic power (PMAX): 7,200 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium or lead-acid ions (self-adaptable to BMS)

• Maximum loading / battery discharge: 90 A / 90 A

• Maximum load power / battery discharge: 3,600 W / 3,800 W

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 entries (1 + 1)

• Maximum PV input current per MPPT: 18 a / 18 a

• Maximum short circuit current (ISC): 27 a / 27 a

• Maximum PV input tension: 550 V

• Nominal voltage of PV input: 360 V

• System start voltage: 100 V

• MPPT voltage range: 90 V at 500 V

• Maximum efficiency / European efficiency: 97.70% / 97.00%

• Efficiency of the MPPT follower: 99,90%

• Backup switching time (UPS): 0 ms (level SAI instant)

• Power peak in isolated mode (OFF-GRID): 7.360 goes for 10 seconds

• Maximum output current AC: 16 a

• Degree of protection of the chassis: IP66 (Apt for demanding weather)

• Sound emission level:

• Physical dimensions (wide x high x deep x): 506 x 495 x 99 mm

• Net weight of the team: 17.0 kg

• Parallelization capacity: Up to 10 units in parallel (On-grid / off-grid)

• Integrated overvoltage protections: Type II / CA CC Type II Downloaders

• Communication interfaces: CAN, RS485, Wi-Fi / Ethernet / 4G (Optional)

• Digital Tickets / Outputs: DRM, 2 x DI, 2 x DO (Smart Load / Generator / Heat Pump)

Frequently Asked Questions (FAQ)

1. How important is the switching time of 0 ms in the Hoymiles HIS-3.6L-G3S?

By offering a switching time 0 ms, the inverter it works like a SAI/UPS high-speed. During a fall of the electricity network, the house continues to receive energy without any microcorte that affects computers, servers or delicate appliances.

2. Is this compatible inverter with 48V low voltage batteries?

Yes, it is designed to work with accumulators 48V (range of 40V to 60V) both lithium and lead-acid. It communicates natively through its port CAN with the manufacturer's BMS to manage the loading process self-adaptable.

3. How does management by AI and programmable work modes work?

Your energy management system with IA allows you to configure modes as Peak Shaving and up 8 slots to charge the battery from the network when the power is cheaper. Also, your ports 2xdi and 2xdo they allow you to directly control a diesel generator or derive surplus to a heat pump or smart charging.

4. Can you install the inverter to the weather in areas with rain or continuous dust?

Completely. Your envelope certifies a degree of protection Ip66, superior to the common IP65 standard, which guarantees sealing against powerful water jets and fine dust. Its dissipation by natural convection dispenses with external fans, ensuring ultrasilence operation ().

5. What other investment and accumulation solutions can I find in Tienda Solar?

On the web Tienda Solar have a complete catalog that covers Inverters solar, , Microinverters, , inverters hybrid single-phase and three-phase, Inverters Networking, as well as stationary batteries type Gel batteries or Inverters AGM.
