Inverter Bidirectional SunenergyXT EV3600 3.680W Wallbox

Benefits of SunenergyXT EV3600

The big difference of Sunenergyxt ev3600 in front of a inverter conventional is your Bidirectional load function: Not only allows you to download the energy stored in the battery to feed the home, but also charge it directly from the domestic power network. This is especially interesting for those who have a Dynamic electric fee, since it allows you to schedule the battery charge in the cheapest hours of the day and use that energy later, without depending exclusively for solar production.

Another of the great strengths of this inverter two-way It is its direct integration with electric mobility: it incorporates a dedicated taking compatible with the Wallbox Sunenegyxt aurora, with load powers of 3.6 to 11kw, which converts the EV3600 at the point of joining between the solar storage system of the home and recharge of the electric vehicle, without the need to install independent equipment for each function.

Your Island function (mode SAI/ EPS) It also provides an additional layer of energy security: In case of power supply, the system can continue to feed home autonomously from stored energy, functioning as an uninterrupted power supply for connected essential equipment.

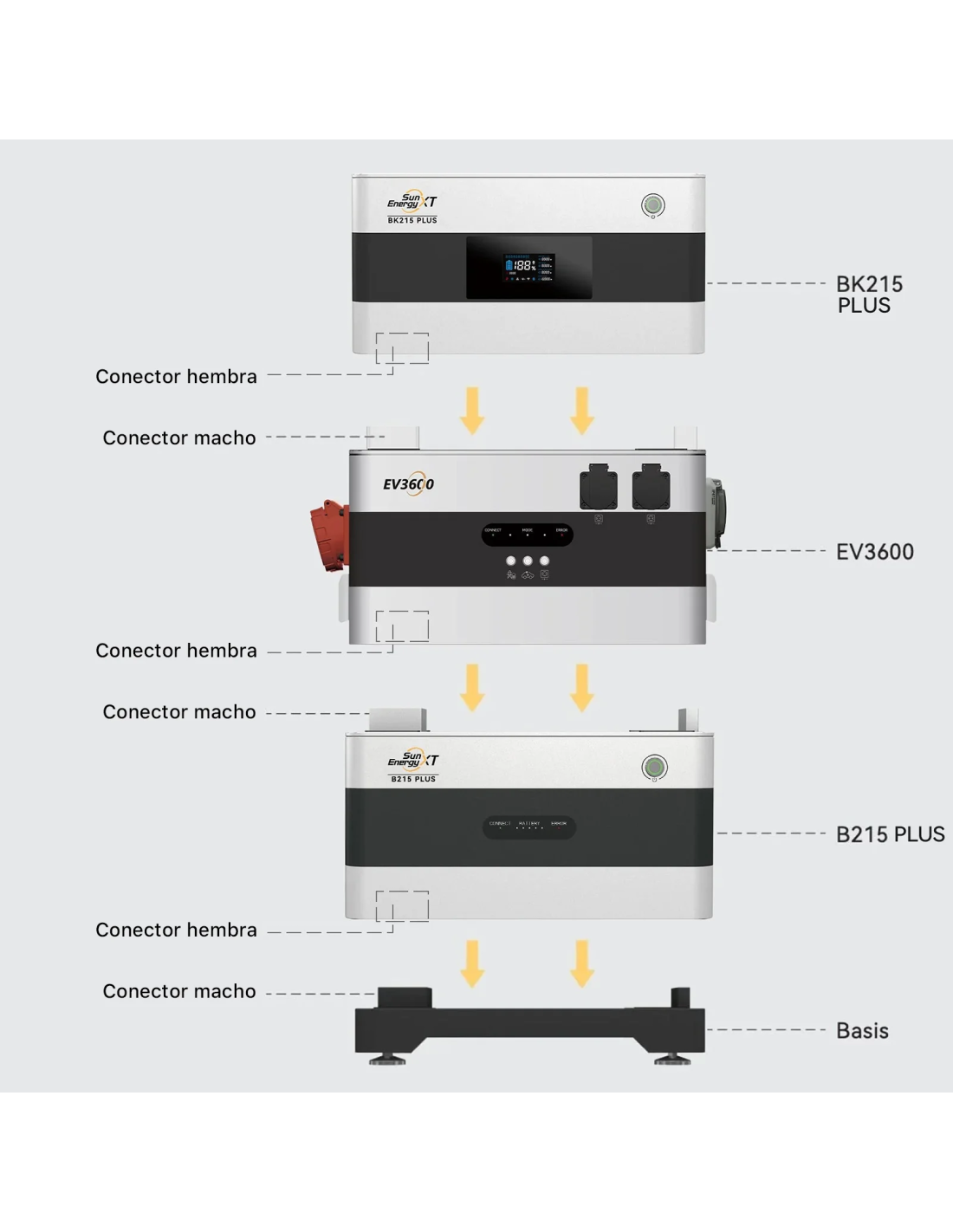

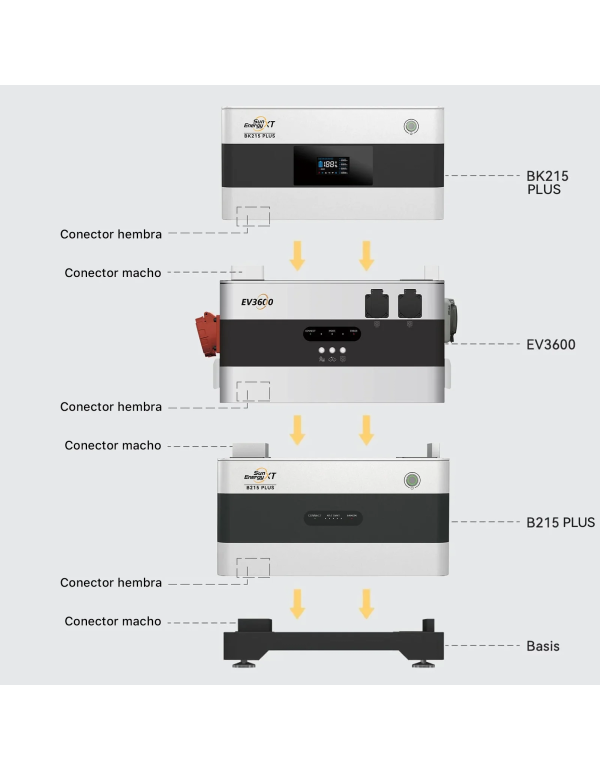

Thanks to his modular design, the EV3600 is integrated effortlessly with the Battery for Solar Kits SunenergyXT BK215 Plus: Just place it on the main unit to have it operative immediately, without the need for complex wiring or additional electrical installation, maintaining the same modular growth philosophy that characterizes the entire range Sunenergyxt

Bidirectional load, Dynamic rates and electric vehicle recharge

The added value of the EV3600 goes beyond being a simple inverter: his ability to bidirectional load It makes it a key piece to maximize the economic savings of a self-consumption installation. By being able to charge the battery both with solar energy and with network energy at the lowest cost hours, the user can optimize the use of his storage system throughout the year, even in the months of lower photovoltaic production.

The dedicated connection for the Wallbox Sunenegyxt aurora It also extends the possibilities of the system towards electric mobility: with load powers of 3.6 to 11kw, the owner of an electric vehicle can take advantage of both the surplus solar energy and the battery stored to recharge your car, all managed from a single application and a single product ecosystem.

If you have doubts about how to integrate the existing EV3600 into your BK215 PLUS system, what Wallbox best suits your electric vehicle, or how to configure your electric fee to take full advantage of bidirectional load, in Tienda Solar We can help you design the complete configuration for your home. Also, in the Blog Tienda Solar You will find guides on integration of storage systems with recharge points for electric vehicle, comparatives of dynamic electric rates and technical items on how to get the most out of your solar installation.

Detailed technical characteristics

General Specifications

• Weight: 18.8 kg
• Dimensions: 524 x 338 x 292mm
• Protection class: Ip44 (Water splash resistant)
• Operating temperature: -20 ° C A + 45 ° C
• Heat dissipation: Air cooling

Electrical specifications

• Output voltage: 230V CA
• Output power: 3.680w
• Power sockets for appliances: 2 x 230v, up 2.400w
• Connection for Wallbox: 1 x, compatible with Wallbox SunenergyXT Aurora from 3.6 to 11kw

Compatibility

• Compatible systems: Sunenergyxt bk215 plus (main unit) and Sunenergyxt b215 plus (expansion modules)
• Wallbox compatible: Sunenegyxt aurora

Main functions

• Bidirectional load: load the battery both from solar energy and from the electrical network, taking advantage of dynamic rates
• Island function (SAI/ EPS): Guarantees the power supply before a network cut
• Management from the app: Control of operating modes, monitoring of charge status and consumption through the SUNEENERGYXT SOLAR APP

Installation

• Modular design: It is placed directly on the main unit BK215 Plus, without additional complex wiring

Frequently Asked Questions (FAQ)

1. What exactly does the EV3600 mean is a inverter two-way? Means that this inverter two-way can download the energy stored in the battery to the home as load From the domestic electric network, allowing you to take advantage of cheaper electric rates in certain slots to recharge the system.

2. Is EV3600 compatible with any SunenergyXT battery? The EV3600 is designed specifically to function with the system Sunenergyxt bk215 plus and its expansion modules B215 Plus, integrating directly on the main unit without the need for additional wiring.

3. Can I upload my electric vehicle directly with this inverter? The EV3600 includes a dedicated taking compatible with the Wallbox Sunenegyxt aurora, which allows charging powers of 3.6 to 11kw; The wallbox is acquired separately and connects directly to this outlet inverter.

4. What happens in case of a power supply cut? Thanks to his Island function (mode SAI/ EPS), the EV3600 can continue to supply energy home from the connected battery, running as an uninterrupted power system for essential equipment.

5. Do I need additional electrical installation to use the EV3600? No, thanks to his modular design, the EV3600 is placed directly on the main unit Battery for Solar Kit BK215 Plus And it is ready to use immediately, without the need for works or additional complex wired.
