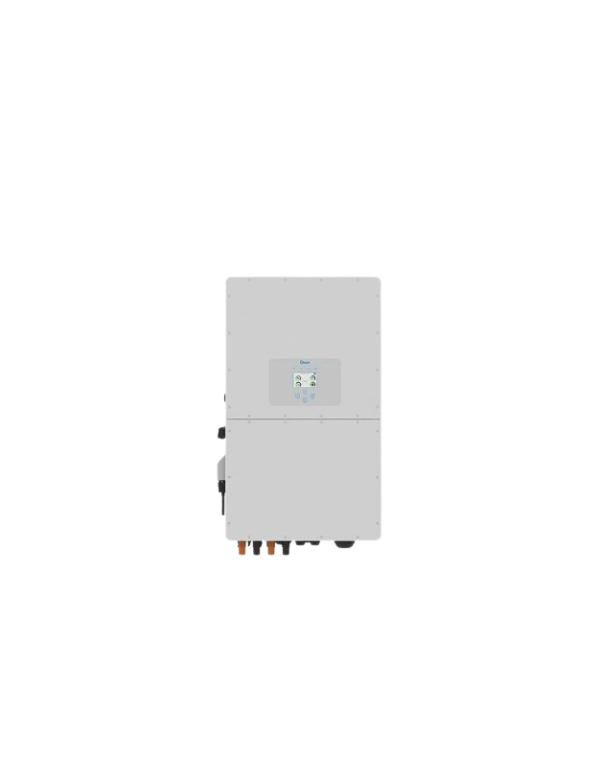

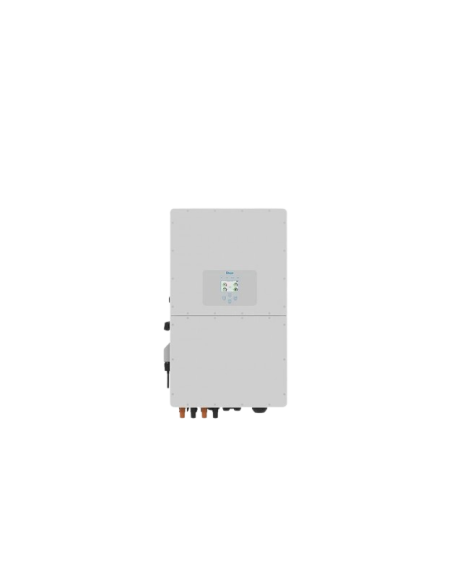

Hybrid Inverter Three-phase Deye 50kw SUN-50k-sg01hp3-EU-bm4

Profit Hybrid Inverter Three-phase Deye 50kw SUN-50k-sg01hp3-EU-bm4

The inverter Deye SUN-50k-sg01hp3-EU-bm4 of 50kw elevate business self-consumption standards thanks to its infrastructure based on high voltage technology (HV). Working with accumulators at high voltages allows significant current in the load and discharge cycles significantly, which minimizes overheating of the conductors, reduces tension falls and trims the losses due to Joule effect. This guarantees a global efficiency of the 97,6%, prolonging the useful life of the photovoltaic system and reducing the necessary investment in large section wiring.

This converter is ideal for connecting extensive generating fields of solar panels and integrate with structures for solar in Industrial Covers. As one of the inverters hybrid more powerful catalog of Tienda Solar, It allows millimeter control of energy costs, helping companies to drastically cut their light invoice.

100% output decompensated by phase and network flexibility

In most industries, three-phase consumption lines do not consume energy uniformly. The Deye 50kw HV solves this problem incorporating a capacity of 100% output unbalanced by phase, allowing to independently adjust the power delivered to each of the lines without forcing the system to import energy from the public network. This surgical compensation avoids penalties for spilling or costs due to accidental consumption.

In addition, the equipment stands out for its coupling function in alternating current (AC coupling), which allows to integrate high voltage storage into existing solar plants that have former Inverters Networking. In this way, the company can modernize its infrastructure and add storage without discarding the Inverters solar that already had in operation.

Uninterrupted cut, diesel management and scalability

To ensure the continuity of the productive process before blackouts, the inverter it has an uninterrupted feeding function (UPS / Backup) Ultra fast switching. In milliseconds, it feeds the critical loads connected to the system by combining the energy of photovoltaic plates and lithium accumulators. It also incorporates a specific entry port for diesel generators with automatic start signal when the battery bank decreases from a certain threshold.

If operational needs grow, the equipment allows the parallelization of up to 10 units, reaching management capabilities up 500 kW of nominal power under a single centralized monitoring. To consult studio cases on high-power microRedes, installation guides or commercial sizing tips, you can access the Blog Tienda Solar, developed by our team of specialized engineers.

Detailed technical characteristics

• Product code: SUN-50k-sg01hp3-EU-bm4.
• EAN code: 3800156694446.
• Type of product: Hybrid Inverter High-voltage three-phase (HV).
• Nominal output power AC: 50,000 W (50 kW).
• Maximum power of entry FV: 65,000 WP.
• Maximum conversion efficiency: 97,6%.
• Number of independent MPPT followers: 4 Followers MPPT.
• Operating temperature range: -20 ° C to +40 ° C.
• Degree of protection of the chassis: Ip65 (Full protection against dust and water).
• Net weight of the team: 79.03 kg.
• Gross weight with packaging: 98.00 kg.
• Official Commercial Guarantee: 10 years warranty backed by Deye.
• Connectivity and Communication: Ports Rs485, , CAN and support for WiFi.
• Parallel work support: Allow to connect up to 10 units in parallel (500 kW total).

Frequently Asked Questions (FAQ)

1. What advantages does high voltage provide against conventional low voltage systems in 50KW?

When operating in high voltage, the current strength that circulates by the system is drastically reduced. This minimizes heat losses in the transmission lines, allows to use smaller wiring and optimizes the speed and stability of the load of the lithium batteries high-voltage.

2. Is it possible to connect this hybrid Inverter to an existing diesel generator?

Yes, the inverter Deye 50kw it has an entrance port exclusively dedicated to generator sets. The team manages the automatic start of the generator at times of low solar radiation or when the accumulators reach their download limit, ensuring uninterrupted supply in the industry.

3. How does the 100% unbalanced output function acts per phase?

This function allows the inverter provide different power levels at each of the three electrical phases totally independently. Thus, the typical unequal loads of the industrial sector are compensated, avoiding taking energy from the public electricity network when the photovoltaic installation or batteries have coverage capacity.

4. Can I use this model to expand an old solar installation?

Of course. Thanks to its AC coupling mode (AC Coupling), you can add this inverter next to a bank of batteries without the need to remove the Inverters Networking or to replace the solar panels previous. If individualized modular solutions are sought, it is also possible to complement the system by Microinverters.

5. What type of preventive maintenance does this need inverter industrial?

By owning a housing held iP65 protection without vulnerable moving parts abroad, maintenance is reduced to periodic inspections of cooling air inlets and the annual review of the electrical protections of the installation.
