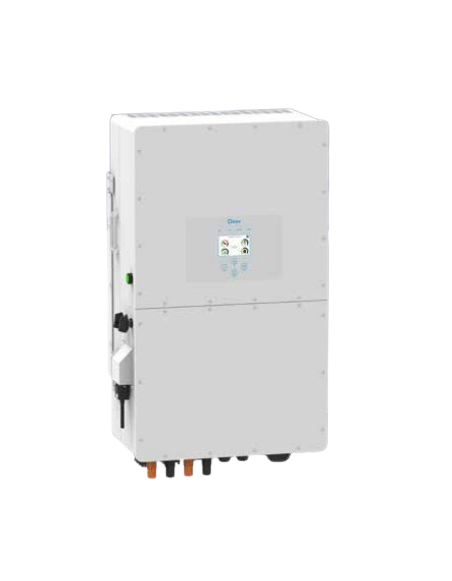

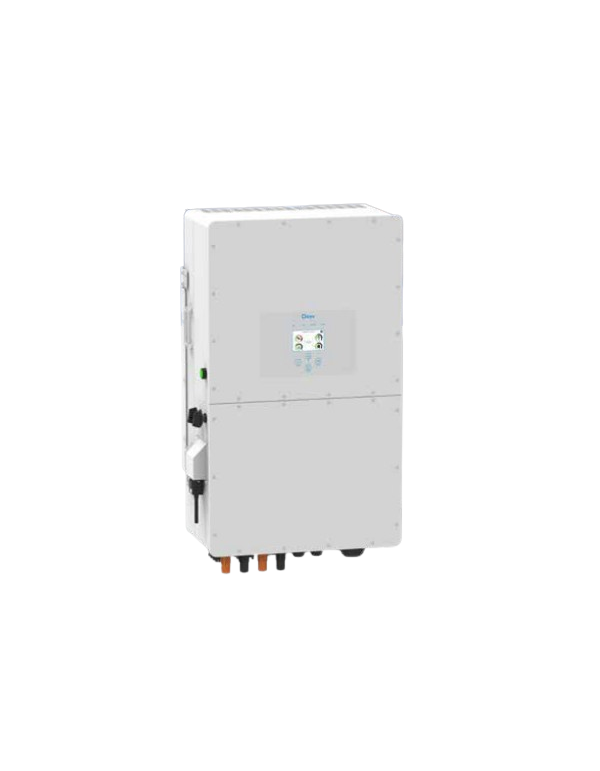

Hybrid Inverter Three-phase deye 40kw SUN-40K-SG01HP3-EU-BM4 High Voltage

Benefits Hybrid Inverter Three-phase deye 40kw SUN-40k-sg01hp3-EU-bm4

The inverter industrial Deye SUN-40k-sg01hp3-EU-bm4 establishes a higher standard in commercial photovoltaic storage when working in ranges of High battery voltage (160V to 800V). Working at high voltages reduces the necessary current intensity, drastically minimizing the thermal losses due to Joule effect and raising the overall efficiency of the system (Round-Trip Efficiency). Its advanced electronic conversion topology guarantees a Maximum efficiency of 97.6% and one MPPT efficiency of 99.9%, maximizing the return of the investment in front of others inverters of its category.

Integrated in an installation next to a field of solar panels mounted solar industrial, this converter allows you to perform work Peak Shaving or cutting peaks. Available in the specialized catalog of Tienda Solar, this inverter It is the definitive solution to provide energy independence to naves and industries.

Quadruple MPPT, Management Unbalanced by Phase and Capacity Backup

To take advantage of the available surface in covers or industrial warehouses with heterogeneous orientations, the equipment incorporates 4 independent MPPT followers accept 2 Entries by MPPT (2 + 2 + 2 + 2). This configuration allows subdividing field power up 52,000 WP Without partial shades or unequal inclinations penalize the global generation of the system.

Also, the team manages 100% unbalanced outputs per phase, supplying asymmetric powers for each three-phase line to supply disparate single-phase consumption without decompetitioning the system. In case of failure in the electrical network, its emergency mode (backup) Provide a POWER PICO of up to 1.5 times the nominal for 10 seconds, Guaranteeing the Current of Inrush needed to start engines and critical machinery.

Parallel scalability, IP65 protection and technical backing

The architecture of the series SUN-40k-sg01hp3-EU-bm4 Allows you to connect in parallel until 10 units, creating industrial micro-companies up 400 kW of nominal power both in connected mode and island (off-grid). His cabinet with Degree of protection IP65 And immunity to the Interior is designed to withstand demanding environments. It has integrated overvoltage protections (DC type II and AC type III) and quick disconnection by arc failures (Afci).

To obtain personalized advice on photovoltaic engineering projects or consult specialized technical articles, we recommend visiting the Blog Tienda Solar, developed by our technical team of specialists.

Detailed technical characteristics

• Pattern inverter: SUN-40k-sg01hp3-EU-bm4

• Nominal output power AC: 40,000 W

• Maximum apparent power AC: 44,000 VA

• Maximum photovoltaic entry power (DC): 52,000 WP

• Number of MPPT followers: 4 MPPT (2 entries by MPPT: 2 + 2 + 2 + 2)

• Maximum DC input voltage: 1,000 V

• MPPT voltage range: 150 V to 850 V

• Nominal battery voltage: 160 V to 800 V (High Voltage)

• Maximum loading / battery discharge: 100 A (50A + 50A)

• Maximum conversion efficiency: 97,6%

• MPPT efficiency: 99,9%

• Degree of protection of the enclosure: Ip65 (Apt for aperture)

• Physical dimensions (wide × high × deep): 527 × 894 × 294 mm

• Net weight of the team: 80 kg

• Operating noise level: (Intelligent air cooling)

• Parallel capacity: Up to 10 units in parallel (400 kW)

• Communication ports: RS485, Can, Wi-Fi / Ethernet (optional)

• Commercial guarantee: 10 years of official manufacturer

Frequently Asked Questions (FAQ)

1. What kind of accumulation is compatible with this hybrid Inverter of 40kw?

It is fully compatible with systems of lithium batteries High voltage (operating range of 160V to 800V) that use communication protocols Can or Rs485, like the industrial series Deye BOS-G or equivalents of LIFEPO4 technology.

2. Is it possible to operate in Isolated U Off-grid with generator set?

Yes, the inverter It is trained to operate in isolated mode by supplying energy from the solar field and batteries. In addition, it has a specific entrance to manage the automatic integration of backup diesel generators.

3. How does charging management decompensated in three-phase networks work?

The team admits asymmetrical downloads up to the 100% by phase, assigning the exact power that each line demands without forcing an equitable distribution. This avoids depending on the public network when the loading of the ship or industry is concentrated in a single phase.

4. What expansion capacity offers for commercial projects that will grow?

The inverter Supports the interconnection in parallel up to 10 units, which allows you to scale the system's power progressively from the initial 40 kW up to a maximum of 400 kW.

5. Where can I find less power alternatives or solutions for other types of installations?

On Tienda Solar We have a wide range of solutions. You can explore our catalog Inverters solar conventional Inverters Networking, residential facilities with Microinverters, or isolated solutions with Gel batteries and Inverters AGM.
