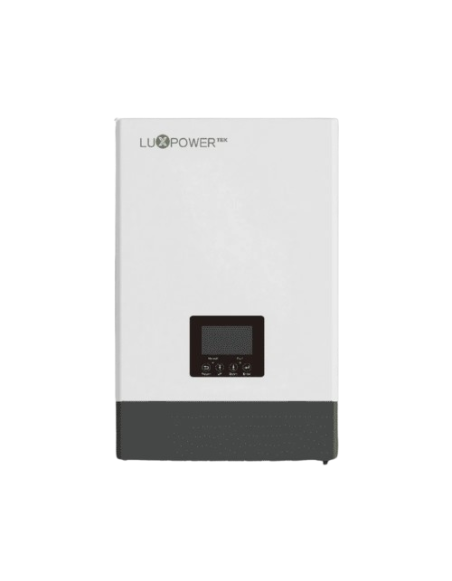

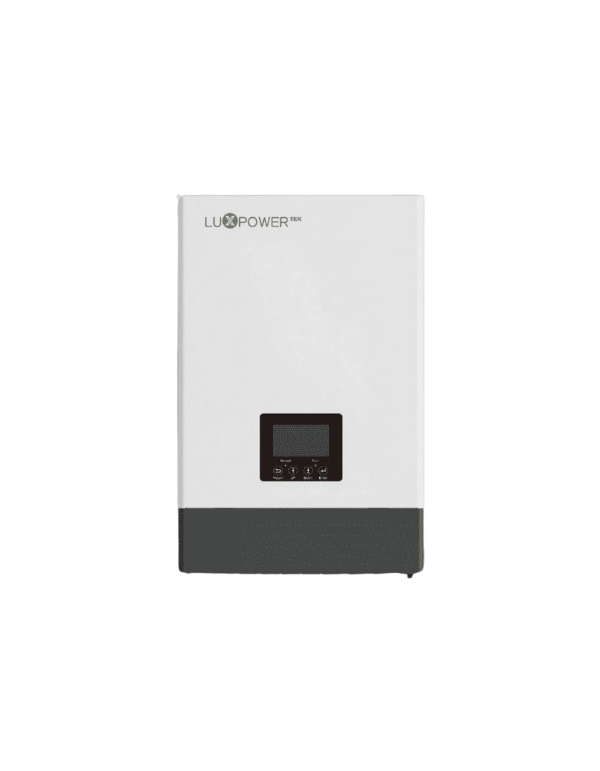

Inverter Single-phase charger Luxpower Hybrid Hybrid SNA2-EU-LT 12K 12.0KW with BackUp

LuxPower SNA2-EU-LT 12K: 12KW power, 24KW solar entrance and uninterrupted backrest UPS on

To address high-volume energy demands with total autonomy, an electronics capable of processing massive solar and battery flows are simultaneously massive. The inverter charger LuxPower Hybrid Eco SNA2-EU-LT 12K it is positioned as the intelligent core of the most ambitious single-phase installations in the sector. . This robust device combines the flexibility of working hard or fully isolated with intelligent algorithms designed to reduce electrical costs, significantly accelerating the return on investment through advanced monitoring and control.

24KW industrial MPPT and massive load 250A

The main genius of engineering in this inverter charger 12.0kw it lies in the ability of your continuous current stage. Houses 2 independent MPPT inputs prepared to manage a photovoltaic field of up 24000W maximum power (distributed symmetrically in 12000W per follower). This wide oversizing margin guarantees that, under unfavorable conditions such as cloudy days or in the middle of winter, the system continues to collect enough energy to maintain alternating output at full capacity. The regulators operate in a range of 120V to 440V with a boot voltage just 100v, Ensuring that the plaque chains awaken with the first flashes of the morning. If you need to safely set a solar field of these dimensions on tile or metal covers, we recommend using the solutions of our section of structures for .

In the storage section, its electronics is compatible with technologies of Ion-lithium or lead-acid in nominal tensions of 48V and 51.2V. . Capable of handling a maximum current of loading and unloading of 250A, the equipment can channel up 12000W direct power to your accumulators. . In addition, it includes the function of woke up forced battery (force Wake Up) both from solar as from the network, an essential field tool to reactivate lithium modules whose internal management system (BMS) has been blocked by a deep accidental discharge.

Switching UPS Criticism, automated gene port and modularity

The LuxPower SNA2-EU-LT 12K is designed to be an insurmountable shield before the power failures. In case of a cut in the general distribution network, the inverter activate its backup mode in a transfer time less than 10 milliseconds (. . This switching speed converts it into a system UPS (SAI) Perfect pure sine wave, guaranteeing that servers, computers, motor appliances and security systems continue operational without suffering microcortes or restarts. If your project requires a purely commercial approach focused on the injection to direct network on a large scale without physical accumulation, you can review the options of our menu of inverters networking.

This equipment marks the difference thanks to its peripheral flexibility. Incorporate a separated generator port (gene) capable of interacting with an external generator set by automatic start and stop, Configuring an ideal support system for locations without electric grid. . At the level of expansion, its professional architecture supports connecting up to 16 units in parallel. This allows you to scale the power of the installation in a modular way, allowing to design powerful single-phase systems or configurations three-phase unbalanced (Unbalanced 3-phase) where a inverter acts as a host and autogenrate the management of the entire plant intelligently. Your chassis dispenses weighing transformers in the AC / Battery stage , maintaining an optimized weight of 32.5 kg that facilitates assembly , with local monitoring through a screen LCD + RGB and complete connectivity by RS485, Wi-Fi and Can.

Technical characteristics:

• Nominal output power (network / fv + battery): 12000 W.
• Nominal output power in backup (UPS): 12000 W.
• AC nominal voltage input and output: 230 VAC (Single-phase, acceptable range of 130-280V).
• Nominal output current CA: 52 a.
• Maximum PV input power (CC): 24000 W (Distribution of 12000W / 12000W).
• Number of independent MPPT regulators: 2 MPPT.
• MPPT voltage range: 120 VDC at 440 VDC.
• Maximum voltage of photovoltaic input (VOC): 480 VDC.
• Solar circuit boot voltage: 100 VDC.
• Maximum PV input current per MPPT: 35 a (Short circuit current 44 a).
• Battery compatibility: Ion-lithium / lead-acid.
• Nominal voltage of the battery bank: 48 V / 51.2 V (Operating range of 46.4-60V / 38.4-60V).
• Maximum load current / battery discharge: 250 a.
• Maximum load power / battery discharge: 12000 W.
• Switching time in backup mode (UPS): .
• Dedicated generator port (gene): 15000 W of nominal input power (230V / 65A).
• Maximum load efficiency / MPPT efficiency: 93.5% / 99.0%.
• Integrated protections: Overcurrent, overvoltage, short in AC, network monitoring and overvoltage protection DC / AC type III.
• Communication interface: Screen LCD + RGB, ports RS485, Wi-Fi and Can.
• Dimensions of the chassis (an x at x PR): 520 x 580 x 163 mm.
• Structural net weight: 32.5 kg.
• Degree of environmental protection: Ip20 (Internal use or protected technical rooms).

Frequently Asked Questions section (FAQ)

1. Why is it a great technical advantage than this inverter 12kw accept up to 24000W of entry in ? It allows a massive oversizing of 200% in continuous current. . This means that, even in the winter months, with rainy days, skies totally encapped or at the extreme hours of dawn and sunset, your solar they will capture enough diffuse radiation to cover the 12000W of household consumption and, simultaneously, recharge the battery bank at maximum speed.
2. Which houses in the house are safe from turning off thanks to the 10MS switching time? A transfer less than 10 milliseconds ( it is the professional standard required for systems UPS (Uninterrupted feeding systems). . This time is so fast that it is imperceptible for any sensitive electronic component, which prevents computers, servers, home automation systems, routers or appliances with digital plates suffer microcortes or annoying restarts.
3. What implications does the load and discharge current of the battery have to reach 250a? Move 250a intensity on a 48V battery bank allows you to manage a power flow of up to 12000W in real time. . Thanks to this, if the house demands very high energy peaks at night, the inverter charger can draw it from batteries without blinking and, likewise, you can fill large capacity accumulators in very few hours when the sun shines hard.
4. How does the inverter autonomously with the dedicated port for generator (gene)? The SNA2-EU-LT 12K model has an independent AC input and internal relays to control a generator set. . If the battery bank descends at a critical level after several sun-free days and the electric network is not available, the inverter send a signal automatic boot to the generator to feed the house and recharge the batteries, turning it automatically as soon as the system recovers the stability.
5. What does it mean that this equipment supports parallel configurations for unbalanced three-phase networks? Means you can interlace multiple units of this inverter modularly (up to a 16-piece limit). . When grouping them three in three, you can create an industrial three-phase current network where each inverter governs a phase independently; If one of the phases suffers a massive consumption and the others, the master team compensates that imbalance automatically to keep the network stable.
