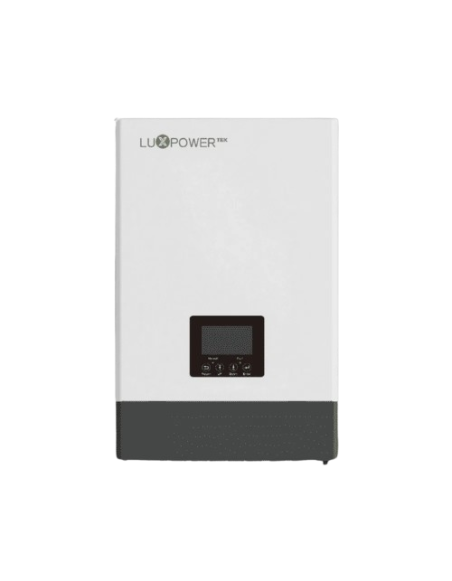

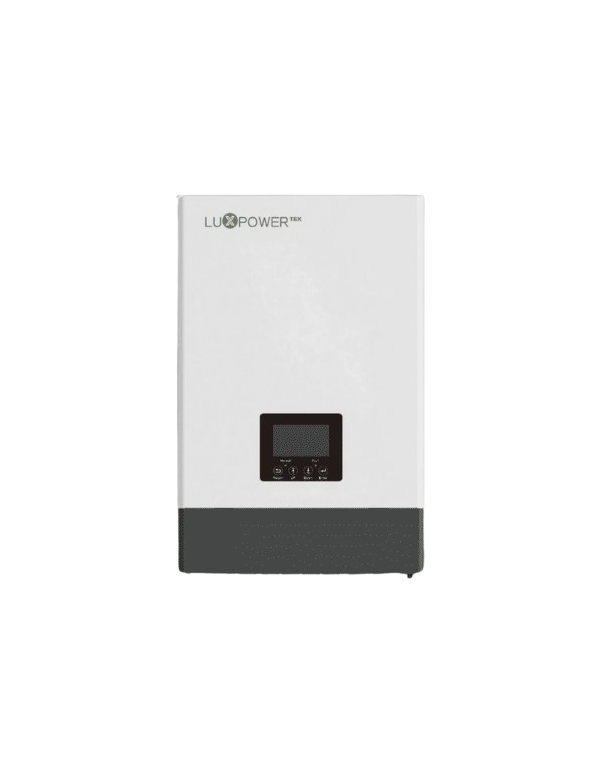

Inverter Single-phase charger Luxpower Eco Hybrid SNA6000 6.0KW with BackUp

LuxPower SNA6000 48V: 6KW Continuous Power, Double MPPT and Intelligent Backup Off-Grid No Microcortes

Ensuring the energy stability of a demanding housing or an installation in rural environment requires equipment with a superior tolerance and a robust electronic design. The inverter charger Luxpower Eco Hybrid SNA6000 (known in the market as the 6KW model of low-voltage SNA SNA series) is consolidated as the ideal monophasic solution for those seeking total autonomy of the electricity grid or an absolute shield against extended blackouts. . By integrating the functions of inverter pure sine wave, high-speed battery charger and a fast transfer switch, this equipment becomes the intelligent heart of the solar infrastructure of any home.

8KW photovoltaic input stage with double MPPT and advanced load to 48V

The main competitive advantage of this inverter charger 6.0kw resides in the architecture of its DC section. . Has 2 independent MPPT inputs operating in a voltage range 120V to 385V. . This allows you to perform a massive oversion of up 8000W solar (4000W for each follower) , ensuring that the team delivers its 6000W of nominal power in alternates even during the winter months, cloudy days or in conditions of low radiation. . By having separate tracking channels, It is possible to design two different roof orientations without the losses of a chain affect the other. If you want to calculate the ideal fixation for your solar modules on metal surfaces or tiles, we suggest you review our catalog in the section of structures for .

In the storage area, the Luxpower SNA6000 stands out for its technical flexibility, being supported natively with 48V Lithium-Ion and Lead Batteries (with a working range of 38.4V to 60V). . Its internal electronics allows colossal energy flows, offering a maximum load of 125A load and a discharge of up to 140A to consumption. . In addition, it incorporates the valuable software of woke up forced battery (force Wake Up) both from the energy of the as from the electrical network. This function is indispensable to reactivate those lithium accumulators whose management system (BMS) has been blocked by an accidental overload.

Support UPS instant, dedicated generator port and professional scalability

Unlike inverters conventional direct injection that stop their activity completely during a light cut, the 6KW luxpower of Tienda Solar has a function of uninterrupted switching (seamless Switching) Minor to 15 ms operating on the individual (and less than 30 ms if it is configured in parallel). . This ultra-fast response acts exactly as a system UPS or SAI pure sine wave, preventing household appliances with electronic plaques, routers, refrigerators or domestic servers to experience unwanted microcortes or reboots. If for your project you are assessing industrial alternatives destined exclusively to inject surplus to the commercial network without storing power in batteries, you can take a look at the options available in our section of inverters networking.

This inverter charger marks the difference in versatility thanks to the inclusion of a separated generator port Available (GEN) , safely insulating the entrance of an external support generator group. . At the level of expansion, its platform supports up to 16 units in parallel. . This modularity allows you to increase the power of the installation in a scalable manner in the future, opening a step to large single-phase or networks configurations three-phase unbalanced (Unbalanced 3-phase) where a inverter masterHost) It is automatically autoemnered to govern the communication from the entire photovoltaic system. . Its chassis dispenses from heavy magnetic transformers (topology Transformer-Less), which allows you to maintain a light weight of 14.5 kg that facilitates the installation, and has an intelligent ventilation system (Smart Cooling) that restricts the typical noise below the 50db.

Technical characteristics:

• Nominal power output power (network / bypass): 6000 W.
• Nominal output power in backup (BackUp): 6000 W.
• Nominal exit voltage CA / UPS: 230 VAC (Phase).
• Nominal output current CA: 26.5.
• Maximum power ADMITTED (DC Entry): 8000 W (Distribution of 4000W / 4000W).
• Number of independent MPPT: 2 MPPT.
• Voltage range of the MPPT: 120 VDC at 385 VDC.
• Maximum input voltage of CC (VOC): 480 VDC.
• Solar circuit boot voltage: 100 VDC.
• Maximum input current PV / short circuit by MPPT: 17 a / 25 a.
• Nominal voltage of the battery bank: 48 V (Operating Range of 38.4V to 60V).
• Maximum loading / battery discharge: 125 A / 140 A.
• Maximum load power / battery discharge: 6000 W.
• Maximum efficiency Inverter / MPPT efficiency: 93% / 99.6%.
• Switching time (mode BackUp): in individual use and in parallel.
• Nominal current of bypass relays: At.
• Integrated electrical protections: Overvoltage, overcurrent, short in AC, network monitoring, protection against reverse battery polarity and cA surge protection Type III.
• Regulations and international certifications: IEC 62109-1, , IEC 61000 and IEC 62040.
• Communication interfaces: Screen LCD + LED, ports RS485, Wi-Fi and Can.
• Dimensions of the chassis (an x at x PR): 330 mm x 505 mm x 135 mm.
• Structural net weight: 14.5 kg.
• Degree of environmental protection: Ip20 (Installation indoors or technical cabinets).

Frequently Asked Questions section (FAQ)

1. What advantages does it provide that this inverter 6KW Luxpower Charger Enter two independent MPPT? Allows you to divide the field of solar in two series or independent orientations (for example, a chain oriented to the east and one to the west). . Each MPPT follower looks for the maximum performance point of its group separately, which prevents partial shadows from a fireplace, dirt or a poor inclination on one side affect or limit the production of the other channel, asiming the daily generation.
2. What exactly does it mean that switching backUp be less than 15 milliseconds? Means that before an unexpected cut of the electricity supply of the street or the external network, the inverter charger is able to react in less than 15 ms to transfer home feeding towards batteries and solar plates. . Being such a fast and automated time interval, it complies with the standards of a system UPS pure sine wave, preventing computers, consoles, routers or refrigerators to suffer annoying microcortes or reboots.
3. Why is a large technical advantage a battery discharge current up to 140a? When operating with a low-voltage bank at 48V, dispose of 140th Download it allows you to extract massive energy flows up to 6000W in real time directly from batteries. This implies that, during the night or at times of null sunscreting, you can simultaneously light high consumption appliances (such as an oven, a microwave or a water pump) without the inverter it is saturated or required external support.
4. What is the dedicated generator port (gene) that includes this model? The LuxPower SNA6000 has an exclusive alternating current entrance for generators, separated from the entrance of the general electrical network. This allows you to connect a support fuel generator for those isolated installations that go through prolonged periods of storms or winter, allowing the inverter load the batteries safely and stabilize the consumption of the house when the sun is not enough.
5. How does parallel scalability for single-phase or three-phase networks work? If your demand for residential or commercial consumption increases in the future, you do not need to replace this device. Its professional architecture supports connecting up to 16 units in parallel ease. . This flexibility allows you to interlace multiple equipment to multiply the single-phase power on the same network, or group them from three in three to generate a network unbalanced three-phase completely autonomous and managed by a master team.
