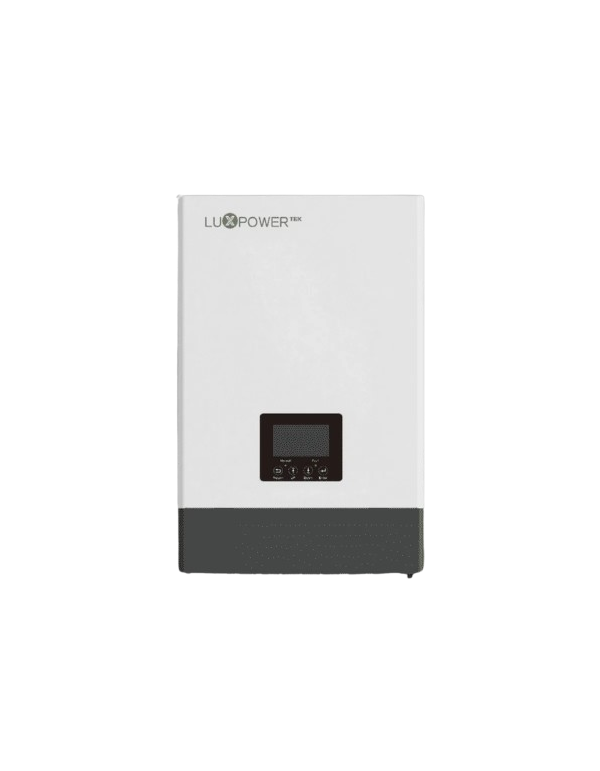

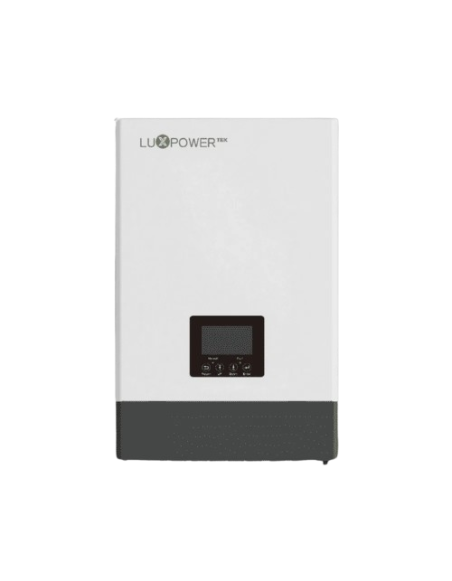

Inverter Single-phase charger Luxpower Eco hybrid SNA2-EU-LT 10K 10.0kw with BackUp

LuxPower SNA2-EU-LT 10K: 10KW power, 18KW double MPPT and backrest UPS Critic in less than 10ms

The search for total energy independence and the integral protection of large-scale domestic or commercial consumption find their definitive solution in the new generation of inverters chargers. The LuxPower Hybrid Eco SNA2-EU-LT 10K it is consolidated as one of the most powerful and versatile single-phase options of the current photovoltaic sector. . This robust electronic brain centralizes the generation of the plates, the accumulation in high capacity batteries and the support of external sources , achieving an accelerated investment return thanks to its intelligent hybrid work modes that automatically prioritize the cheapest energy sources.

18KW massive photovoltaic entrance with double MPPT and load to 250A

The most outstanding technical aspect of this inverter charger 10.0kw it is its imposing power stage in continuous current. . Has 2 independent MPPT inputs capable of managing a photovoltaic field up 18000W DC in Entrance (distributed in 9000W per follower). . This level of oversimement ensures a stable supply of 10000W in alternating current even during winter days, very covered skies or low radiation conditions. . The operating range of its followers covers from the 120V Up to 440V, with a very low boot voltage of Solo 100v, guaranteeing that the inverter start producing from the first sunbeams of sunrise. To anchor a volume safely so important about any surface or roof, we recommend you explore our catalog structures for .

In the storage section, this team works with accumulators Ion-lithium or lead-acid of 48V or 51.2V. . Your industrial electronics breaks conventional standards by offering a 250A maximum loading and loading current , which is equivalent to 11000W Direct power towards batteries. . In addition to its loading speed, it integrates the essential function of woke up forced battery (force Wake Up) From the FV field or from the network , sending a pulse of reactivation to lithium systems whose BMS has been blocked by a deep accidental discharge.

Switching UPS Ultravelop, smart generator port and scalability

Reliability in the continuity of electricity supply is an absolute priority in this model. Facing Falls or Blackouts in the Conventional Distribution Network, the LuxPower SNA2-EU-LT 10K switches for backup in a record time less than 10 milliseconds (. . This transfer time makes it a system UPS (SAI) Pure sine wave of instant response, preventing computer equipment, air conditioning systems or medical devices to experience reboots or stops. If in your planning you are looking for a purely intended alternative to direct injection to the network to reduce diurnal costs without batteries, we have a wide range in our category of inverters networking.

This inverter charger also stands out for its exceptional connectivity and peripheral management. It has a separated generator port (gene) that allows the integration of a generator set with automatic start and stop, Ideal for isolated installations requiring automated emergency support. In addition, its professional architecture supports up to 16 units in parallel , opening the doors to a massive modular expansion in both large-scale single-phase systems and networks three-phase unbalanced (Unbalanced 3-phase). . All with a design without transformer on the ac side that reduces its weight a 32.5 kg and incorporate a screen LCD + RGB together with communication ports RS485, Wi-Fi and Can serial.

Technical characteristics:

• Nominal output power AC (network): 10000 W.
• Nominal output power in back mode (UPS): 10000 W.
• Nominal AC voltage Operation: 230 VAC (Single-phase, Range 130-280V).
• Nominal output current CA: 43.5.
• Maximum PV input power (CC): 18000 W (Distributed in 9000W / 9000W).
• Number of independent MPPT: 2 MPPT.
• MPPT Work Voltage Range: 120 VDC at 440 VDC.
• Maximum voltage of photovoltaic input (VOC): 480 VDC.
• Solar circuit boot voltage: 100 VDC.
• Maximum PV input current per MPPT: 26 a (Short circuit intensity 32.5).
• Battery compatibility: Ion-lithium / lead-acid.
• Nominal voltage of the battery bank: 48 V / 51.2 V.
• Maximum loading / unloading current: 250 a.
• Maximum load power / battery discharge: 11000 W.
• Switching time in backup mode (UPS): .
• Dedicated generator port (gene): 15000 W of maximum input (230V / 65A).
• Maximum efficiency Inverter / MPPT efficiency: 93.5% / 99.0%.
• Electrical protections: Overvoltage, overcurrent, short in AC, network monitoring and overvoltage protection DC / AC type III.
• Interfaces and communications: Screen LCD + RGB, ports RS485, Wi-Fi and Can.
• Dimensions of the chassis: 520 mm wide x 580 mm high x 163 mm depth.
• Structural net weight: 32.5 kg.
• Environmental protection index: Ip20 (Recommended installation indoors or technical rooms).

Frequently Asked Questions section (FAQ)

1. What advantages does it provide that this inverter charger admits up to 18000W in solar? It allows to ovenex dime the field of solar by 180% compared to the power output power (10kw). . This is crucial to ensure that, during the most unfavorable days of the year, with very covered skies or at the extreme hours of dawn and sunset, the plates continue to capture enough energy to cover the house consumption of the house and simultaneously upload the 10000W Bench of batteries at great speed.
2. What does it mean that the switching time is less than 10 milliseconds? Means that if an unforeseen cut occurs in the outer electric network, the inverter charger changes its supply source towards batteries and solar in less than 10 ms. . Being such a fast process, it acts as a system UPS or SAI pure sine wave, avoiding computer equipment, servers, routers or domotic systems suffer microcortes, off or data losses.
3. Why is a 250A load and unloading current as relevant in batteries? A stream of 250a it allows to move massive energy flows (up to 11000W) between the inverter and the 48V battery bank. This means that you can recharge lithium batteries from large capacity in a very short time when there are full solar surpluses, and at the same time, the system can extract a great accumulated power to feed high consumption appliances without the need for support from the network.
4. How does the automatic management of the separate generator port (gene) work? The LuxPower SNA2-EU-LT 10K has an exclusive AC input channel for generators. . This port has signal contacts to order the automatic start and stop generator. . If the battery bank is on a critically low level after several days of rain and there is no available electric network, the inverter start the engine, cover the household consumption, recharge the batteries and turn it off automatically at the end.
5. Can multiple computers be connected if in the future I need to change to a three-phase network? Yes, it is totally viable. The team is prepared for a professional scalability, allowing parallelf up to 16 units ease. . This allows you to increase the single-phase power in the same home or interlace the inverters of three in three to generate a network unbalanced three-phase, where a master team centrally manages communication and the distribution of phases of the entire installation.
