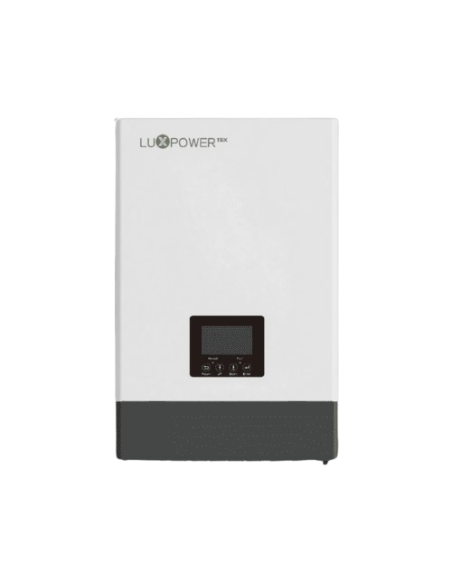

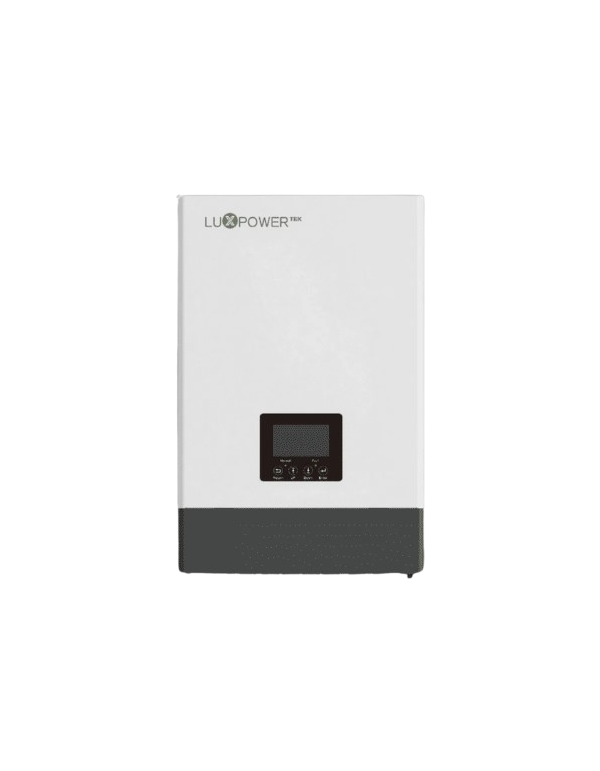

Inverter Single-phase charger Luxpower Eco Hybrid SNA5000 5.0KW with BackUp

LuxPower SNA5000 48V: 8KW double MPPT, uninterrupted and parallelizable switching up to 16 units

Energy decentralization and the search for maximum resilience in the home require solutions capable of operating with or without the support of the commercial network. . The inverter charger LuxPower Eco Hybrid SNA5000 from the SNA 3-6K series it is specifically designed as a multifunctional energy brain for direct and alternate current management. . Whether for rural homes completely isolated from electrical distribution or for urban residential projects that seek immunity against permanent or temporary cuts of light , this device provides robust reliability and unprecedented expansion flexibility in the sector.

High power processing with double MPPT and advanced load to 48V

The main competitive advantage of this inverter charger 5.0kw lATES IN THE ARCHITECTURE OF YOUR PHOTOVOLTAIC ENTRY STAGE. . Incorporates 2 independent MPPT entries operating in a voltage range 120V to 385V. . This allows a massive oversioning of up 8000W solar , ideal to ensure that the inverter deliver 5000W output power AC even under adverse climatic conditions or low radiation. . By having separate tracking channels, the installer can design two different orientations or inclinations on the roof, mitigating the losses by partial shading. To guarantee the maximum fastening of your photovoltaic collectors on any surface, we advise you to complement your purchase with the mechanical options of our section of structures for .

In the storage section, the equipment has native compatibility to manage 48V Lithium-Ion or Lead Batteries (with an operating range of 38.4V to 60V). . It has a load capacity and maximum discharge of 110A / 110A software regulated , allowing to inject up 5000W of direct power towards accumulators. . One of its most valuable engineering functions is the system of woke up forced battery (force Wake Up), which is capable of reactivating storage systems blocked by overloads using both the energy of the solar as that of the conventional electrical network (Grid) or an external generator coupled to its dedicated port.

Support UPS Instant, Three-phase scalability and certified security

Unlike inverters of standard network connection that suspend its production immediately before a blackout, the Luxpower SNA5000 Tienda Solar integrates a function of uninterrupted switching (seamless Switching) Minor to 15 ms in individual installations and less than 30 ms in parallel systems. . This response time is so fast that it acts as an uninterrupted feeding system (SAI/UPS) pure sine wave, protecting critical appliances, servers or water pumps without experiencing restarts. If you are planning a purely focused deployment in the injection to a large-scale direct network injection without the use of batteries, you can explore the alternatives in our range of inverters networking.

The flexibility of growth of this model is extraordinary, since supports up to 16 units connected in parallel. . This quality allows to expand the system in a modular way as consumption needs grow, opening the door to high-power single-phase configurations or networks three-phase unbalanced (Unbalanced 3-phase) where a inverter masterHost) Autogenerates intelligently to govern the communication from the entire photovoltaic plant. . Its internal structure dispenses with heavy transformers (topology Transformer-Less) , achieving a light weight of 14.5 kg and keeping noise emissions below 50db through an intelligent ventilation system (Smart Cooling). . It has international certifications of industrial safety of first level as IEC 62109-1, , IEC 61000 and IEC 62040.

Technical characteristics:

• Nominal output power AC (network): 5000 W.
• Nominal output power in backup (UPS): 5000 W.
• Nominal exit voltage CA / UPS: 230 VAC (Phase).
• Nominal output current CA / UPS: 22 a.
• Maximum power ADMITTED (DC Entry): 8000 W (Balanced distribution of 4000W / 4000W).
• Number of independent MPPT: 2 MPPT.
• Voltage range of MPPT: 120 VDC at 385 VDC.
• Maximum input voltage of CC (VOC): 480 VDC.
• Boot voltage of the photovoltaic circuit: 100 VDC.
• Maximum entry intensity by MPPT: 17 a.
• Maximum short circuit current (ISC): 25 a by MPPT.
• Nominal voltage of the battery bank: 48 V.
• Battery voltage range: 38.4 V A 60 V.
• Maximum loading / battery discharge: 110 A / 110 A.
• Maximum load power / battery discharge: 5000 W.
• Maximum efficiency Inverter: 93% (Maximum efficiency of MPPT of 99.6%).
• Switching time (mode BackUp): in individual use and in parallel.
• Nominal current of bypass relays: At.
• Integrated protections: Overvoltage, overcurrent, short in AC, network monitoring, protection against reverse battery polarity and protection against atmospheric discharges (arises) Type III.
• Communication and interface interfaces: Screen LCD + LED Series, ports RS485, Wi-Fi and Can.
• Physical dimensions of the chassis: 330 mm wide x 505 mm high x 135 mm depth.
• Structural net weight: 14.5 kg.
• Degree of environmental protection: Ip20 (Installation in technical or interior rooms).

Frequently Asked Questions section (FAQ)

1. What advantages does it provide that this inverter 5KW Luxpower Charger Enter two independent MPPT? Allows you to divide the field of solar in two rows or independent orientations (for example, a chain oriented to the east and one to the west). . Each MPPT seeks the maximum power point of its separate series, Avoiding the shadows of a fireplace, dirt or poor inclination of a group negatively affects the performance of the other, maximizing total daily production.
2. What does it mean that switching backUp be less than 15 millisecondsIt means that when a blackout occurs or a fall of the outer electric network, the inverter charger reacts in less than 15 ms to automatically transfer the supply of the house to the batteries and solar. . Being such a fast and imperceptible time interval, it acts as a system UPS pure sine wave, avoiding the off or restarting of computers, routers or sensitive appliances.
3. Can I use this inverter hybrid charger without connecting batteries in a first phaseYes, the team allows direct photovoltaic management to cover the diurnal consumption of housing. . However, being designed primarily for hybrid and isolated systems (off-grid) , it is recommended to incorporate a storage bank 48v (with a recommended capacity superior to 200ah) to take advantage of the night power of 5000w and ensure total continuity in backup mode.
4. What refers to the forced battery activation function (force Wake Up)Many modern lithium batteries have an internal management system (BMS) that, before a deep discharge due to prolonged abranchment, disconnects the terminals for safety so as not to be damaged, leaving in a state "asleep". The LUXPower SNA5000 has a software capable of injecting a pulse from reactivation from the solar panels or the network to awaken the battery and resume the load automatically.
5. How does parallel scalability of up to 16 units of this model workIf your consumption needs or the power of your home increase in the future, it is not necessary to replace the equipment. You can connect multiple modular shape inverters identical of the SNA series up to a limit of 16 pieces in parallel. . This flexibility allows you to multiply the power in a single phase or group them from three in three to create unbalanced three-phase current networks managed by a master team.
