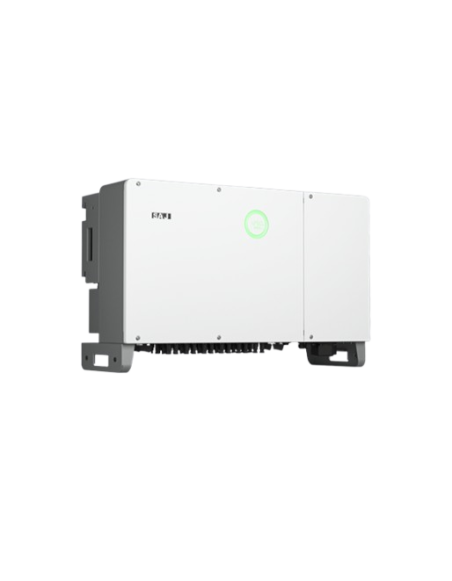

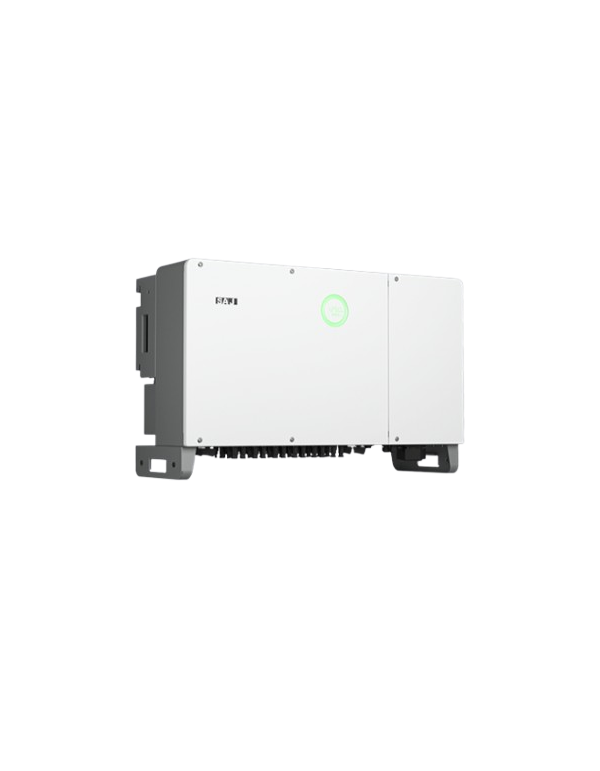

Inverter Commercial network SAJ 100KW Three-phase 9MPTP C6-100K-T9

SAJ C6-100k-t9: Inverter connecting to Industrial Network, 9 independent MPPT followers for flexible Strings configuration and active protection AFCI against arc failures

The deployment of photovoltaic infrastructures on large-scale commercial and industrial surfaces demand inverters high density that combine intelligent management of the Strings of with a robust constructive security. The inverter SAJ C6-100k-t9 it is established as an advanced three-phase yield core that allows companies and factories to accelerately amortize the investment of their solar gardens through direct injection to their internal consumption lines, softening global energy costs.

Elevated multi-MPPT performance, overpassing DC and high-power cell integration

The competitive advantage of the C6 series SAJ it lies in the decentralized architecture of its DC section. By incorporating 9 MPPT followers with 2 String entries for each, The installer has the flexibility of grouping and orienting the rows of solar panels in multiple directions and inclinations on the roofs of the ships, without partial shading degrade general productivity.

The inverter admits a entry current of 30 A for each MPPT (With variants that reach up to 40 A in their reinforced configurations), which gives it direct compatibility with the latest generation and high-power photovoltaic cells and modules. All this power is processed with a maximum conversion efficiency of the 98.8% and a weighted European efficiency of 98.5%, ensuring that heat losses remain at strict minimes. If your industrial project requires adding mass storage blocks interconnected in alternating to retain these large generation flows, we suggest you consult our specialized catalog of batteries commercial and deep cycle bess modules.

IP66 perimeter protection, active fire defense and remote diagnosis 24/7

Built under the standards of maximum demand for severe outdoor, the SAJ C6-100K-T9 presents an enclosure with certification Ip66 and a system of smart forced air cooling IP68. This design proactively expels internal heat depending on the workload, guaranteeing a continuous operation even in locations with temperatures up to 60 ° C (applying power reduction from 45 ° C).

In the preventive field, the inverter integrates overvoltage protections (SPD) type II both on the current current and alternating, and optionally offers the functionality of detection of Arc Failure (AFCI), which turns off the current flow in milliseconds if hazardous electric arcs are detected in the roof wiring. If you want to attach this inverter to residential hybrid networks or evaluate lower powers for medium commercial facilities, you can explore the options of our menu of inverters hybrid three-phase of the brand.

Technical specifications (model C6-100K-T9):

Continuous current entry (photovoltaic):

• Maximum recommended power of the FV field: 150,000 WP (150 KWP).

• Maximum input voltage in CC: 1,100 V.

• MPPT operating voltage interval: 180 V at 1,000 V.

• System start voltage: 200 V.

• Number of independent MPPT followers: 9 MPPT.

• Chain tickets (strings) for each MPPT: 2

• Maximum entry current by MPPT: 30 A (standard models) / 40 A (reinforced models).

• Maximum short circuit current by MPPT: 45 A / 50 A (according to version).

Alternating current output (network connection):

• Nominal power output: 100,000 W (100 kW).

• Maximum apparent output power: 110,000 VA (110 kVA).

• Nominal Network Supply Supported: Three-phase 3L + N + PE / 3L + PE (230 V / 400 V).

• Nominal output current in CA: 144.3 A.

• Maximum output current in CA: 158.8 A.

• Nominal work frequency: 50 Hz / 60 Hz.

• Adjustable power factor: Greater than 0.99 (adjustable range of 0.8 inductive to 0.8 capacitive).

• Total Harmonic Distortion (THDI): Less than 3%.

Performance, protections and general data:

• Maximum conversion efficiency: 98.8%.

• Weighted European efficiency: 98.5%.

• Degree of exterior environmental insulation: Certification Ip66 (Suitable for Industrial Interior).

• Air conditioning method: Intelligent fan with IP68 protection index.

• Integrated overvoltage protections: Type II surge downloaders in CC and CA.

• Advanced security options: Integrated CC cutting switch and optional ACCI.

• Available communication ports: Wi-Fi / Ethernet / RS485 / RS232 / Bluetooth.

• Total physical dimensions (an x at x PR): 1045 mm × 660 mm × 364 mm.

• Net weight of the team: 93 kg.

Frequently Asked Questions (FAQ)

1. What advantages does it provide to have 9 independent MPPT in a inverter of 100KW? Having 9 independent MPPT followers grants maximum design flexibility in complex commercial roofs. If the surface of your ship has different inclinations, skylights that project shadows at certain hours of the day or if you use different brands of , Each MPPT will separately optimize the performance of your Strings group. This ensures that a production drop in a roof area does not affect other chains connected at all inverter.
2. What does it mean that this team admits a photovoltaic oversion of 150%? Means that, although the inverter deliver a maximum power of 100 kW in alternates to your network, you can connect a field of solar up to 150 kW in continuous current. This is especially useful in commercial ships to take full advantage of cloudy days, the first hours of the morning or the last of the afternoon, achieving that the inverter work at maximum capacity of 100 kW for many more hours throughout the day.
3. The model SAJ C6-100K-T9 is suitable for installation to the weather in coastal or high pollution areas? Yes, it is totally apt. Your envelope has a degree of protection Ip66, which is greater than the usual IP65 standard of the residential sector. This shield guarantees an airtight seal against industrial thin powder and absolute resistance against powerful water jets and relative high humidity environments. In addition, its external cooling fans are certified under the IP68 standard to withstand continued weather without holding it.
4. Is this inverter industrial with zero injection systems to meet local regulations? Yes. By integrating a network analyzer or external smart meter connected through the RS485 communication bus, the software of SAJ it allows you to simply configure export power limits to the public network, including the zero injection option (pure instant self-consumption) to perfectly adapt to the regulations of the local distributor.
