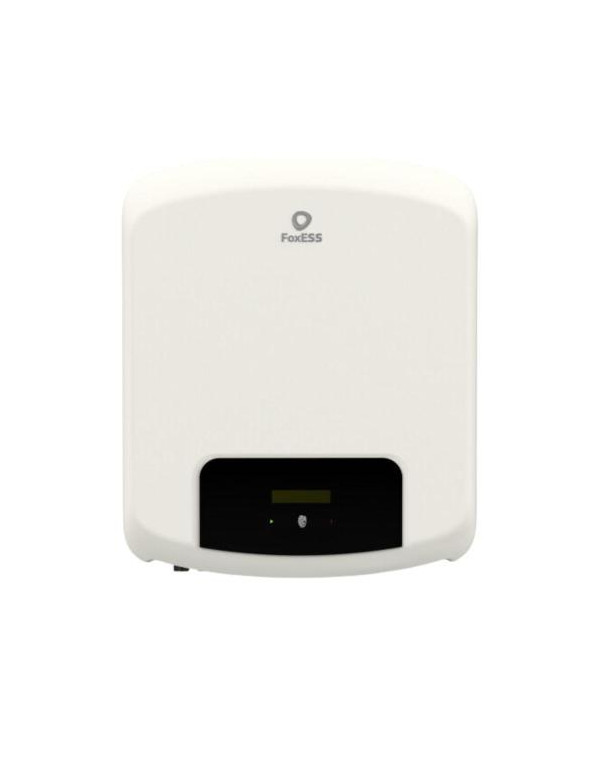

Inverter Single-phase network FOX ESS 3600W Double MPPT WiFi F3600

Fox ESS F3600: Inverter Single-phase high efficiency, double MPPT and intelligent wifi connectivity

The development of residential self-consumption systems requires conversion technologies capable of squeezing each watt generated under any weather condition. The inverter single-phase Fox ESS F3600 It stands out in the photovoltaic market by offering a robust double-follower MPP architecture (double MPPT). This technology is key to the design of facilities with two-waters or presenting different orientations, since it allows to fully manage two chains of Solar without radiation or partial shading differences negatively affect the global photovoltaic performance of the plant.

Superior photovoltaic performance and wide voltage tolerance

At the level of energy recruitment, the F3600 model of Fox ESS series is prepared to work under demanding conditions. Admits a Maximum power of DC input up to 5400W, Facilitating an optimal oversizing of the solar field. Its low boot voltage of just 120V ensures that the inverter Start injecting energy to the home network early in the morning and prolong its activity until dusk. With a Maximum efficiency of 97.40% and a European efficiency of 96.80%, the equipment minimizes the thermal conversion losses. This device is fully prepared to work in harmony with Solar kits of network injection and is easily storable and expandable to the future if it is decided to incorporate systems of lithium batteries Using compatible external load controllers of the brand.

Robustez IP65, Integrated Security and Remote Management Platform

Operational security is another of the pillars of this inverter Fox ESS single-phase. It incorporates as standard a wide range of advanced electronic protections that reduce the need to add costly additional elements in the protections table. Among them stand out the monitoring of isolation, the protection against reverse polarity in direct current, anti-island protection and short-circuit defenses, overcurrents and overvoltages on the alternating current side.

Its physical design dispenses with external mechanical fans, opting for a system of Natural Convection Refrigeration That keeps noise emissions below 30 dB, which makes it an ideal team to install within inhabited areas. The chassis has certification of Degree of protection IP65, also allowing its safe installation to the weather in facades or patios. In addition, thanks to its integrated monitoring module (LAN / WIFI), users and installers can monitor all energy flow and injections in real time 24 hours a day from anywhere in the world through the web portal or the mobile application of Fox ESS. To optimize your assembly on any cover, it is recommended to combine your use with solar They guarantee the suitable tilt and fixation.

Technical characteristics:

• Commercial model: F3600.

• Maximum entry power of CC: 5400 W.

• Max input voltage of CC: 600 V.

• Starting voltage: 120 V.

• Nominal input voltage: 360 V.

• MPPT Operation Voltage Range: 80 to 550 V.

• Maximum input current (by MPPT): 12.5 A.

• Maximum short circuit current (by MPPT): 15 A.

• Number of independent MPP followers: 2.

• Number of strings (strings) by MPPT: 1.

• Nominal AC output power: 3600 W.

• Maximum apparent power of AC output: 3960 VA.

• Nominal voltage of the network: 220, 230 or 240 V.

• Maximum AC output current: 17.2 A.

• Maximum efficiency Inverter: 97.40%.

• European efficiency (Euro-efficiency): 96.80%.

• Follow-up efficiency MPPT: 99.00%.

• Degree of environmental protection: Ip65.

• Typical noise emission: Less than 30 dB.

• Operating temperature range: From -25 to +60 degrees.

• Night internal consumption: Less than 1 W.

• Physical dimensions: 402 mm wide x 476.5 mm high x 148 mm thick.

• Net weight: 15.5 kg.

Frequently Asked Questions section (FAQ)

1. What advantages does the inverter FOX ESS F3600 has double MPPT?

Having two independent MPP (double MPPT) followers allows you to connect two series of Solar in different orientations or inclinations (for example, east and west roofs) without the differences of solar irradiation harm the performance of the other chain, maximizing the overall production of your self-consumption.

2. Is it possible to install this inverter Single-phase on an external wall exposed to sun and rain?

Yes, the inverter Fox ESS F3600 has a robust chassis with IP65 degree of protection. This certification ensures a total seal against dust entry and a high resistance against water jets and intense rains, so it is suitable for placement both indoors and outdoors.

3. How does monitoring work and what data can be consulted remotely?

The equipment has Internet connectivity through an optional module (LAN / WIFI). Through the official application or web portal of Fox ESS, the daily energy production of the solar boards can be consulted in real time, the instantaneous photovoltaic performance of the plant and the historical operating state of the protections.

4. What level of noise generates this inverter When is it running at maximum power?

The typical noise level of the inverter It is less than 30 dB. This is possible because it employs a transformer-free topology and a natural convection cooling system, eliminating the noisy internal mechanical fans and allowing extremely silent operation within the home.

5. Is this inverter Single-phase network prepared to connect batteries in the future?

The Fox ESS F3600 is originally designed as a inverter of classic network However, your technical sheet specifies that it is an updateable and prepared equipment for storage (Battery Ready) subsequently coupling an additional battery charging controller of the Fox ESS brand.
