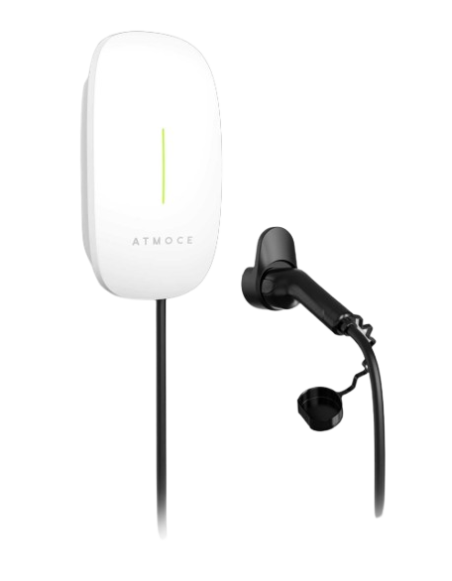

Charger sees three-phase Atmoce MEV-22K-T 22kw

Beneficios del Cargador VE Atmoce MEV-22K-T

With a Nominal power of 22kw, the MEV-22K-T is the fastest option of the range Atmoce M-EV Charger, designed for those who need to recharge their electric vehicle in the shortest possible time, provided that the electrical installation of the household has sufficient contracted power to support the 32a of nominal current in three-phase. Your IP65 protection and resistance to impact Ik10 guarantee a reliable operation both indoors and abroad, backed by a Dear service life of 15 years.

In terms of security, it incorporates 30mA Type A + 6MA DC Current Length Protection, protection against overcurrent, overvoltage, subtension, overfigh, subfrequency and overtemperature, as well as cybersecurity and reinforced insulation, especially relevant aspects in a charger of this power connected to the home network.

Like the rest of the range, it integrates functions of Pv-storage-go that allow prioritizing the load with auto-generated solar energy, resulting in an ideal complement to facilities with solar and inverters hybrid of greater power, capable of taking advantage of all the load capacity of this equipment.

Intelligent loading functions

The MEV-22K-T It incorporates the same "smart" functions that the rest of the M-EV Charger family: schedule, Priority to green energy, Dynamic loading and up Four load start modes (Plug and Play, RFID card, mobile application or Bluetooth). The Dynamic loading It is especially useful in this model of greater power, since it allows you to automatically adjust the current delivered to the vehicle based on the simultaneous consumption of the rest of the house, avoiding shots from the overload overload switch.

Detailed technical characteristics

Electrical specification:

• Model: MEV-22K-T
• Network configuration: 3p + no + PE
• Nominal voltage: 380/400 / 415V AC
• Operating voltage range: 320V ~ 480V AC
• Nominal current: 32a
• Nominal frequency: 50 / 60Hz
• Nominal power: 22kw
• Own consumption: ≤8w
• Overvoltage protection (AC): Type 2
• Power measurement accuracy: 2%

Mechanical specification:

• Color: white
• Dimensions (at x an x PR): 374 x 226 x 164mm
• Weight: 5.8kg
• Operating temperature: -30 ° C ~ + 50 ° C
• Moisture of operation: 5% ~ 95%
• Maximum performance altitude: ≤2000m
• Differential protection (RCD): 30mA Type A + 6MA DC
• Protection against impacts: Ik10
• Degree of protection: Ip65
• Load connector: Type 2 with cable
• Case material: PC (polycarbonate)
• Installation: Mounting on wall or post (optional)

Electrical protections: Overcurrent, residual current, grounding, overvoltage, surge of network, subtension, overfrecuency, subfrequency and overtemperature.

Interface and interaction:

• LED indicator: Green / yellow / red
• RFID Reader: MiFare Classic ISO / IEC 14443-A, Dopire Duox (Optional), Felica (Optional)
• Start Modes: Plug and Play, RFID card, mobile application

Communication:

• Interface: WiFi, Ethernet, Bluetooth
• Ocpp: 1.6 JSON / 2.0.1 J (upgradeable)

Certifications: CE, CB, ROHS, REACH, EN 18031-1compliance EMC (In IEC 62311, at 300 328, at 300 330, at 301 489 series, in IEC 61000-6-1 / 6-3, in IEC 61851-21-2) and Safety In IEC 61851-1: 2019.

Frequently Asked Questions (FAQ)

1. What loading does the MEV-22K-T?
This model offers a Nominal power of 22kw in three-phase configuration 3p + no + PE, with a Nominal current of 32a, the fastest option of the M-EV Charger range.

2. Do I need a special electrical installation for 22kw?
This charger requires a hired power and a suitable wiring section to support 32a three-phase. We recommend consulting with an electric installer certified before start-up.

3. Can it be installed abroad?
Yes, thanks to your IP65 protection and resistance to impact Ik10, the charger is prepared for both indoor installation and outdoor, supporting a temperature range of -30 ° C A + 50 ° C.

4. Is it compatible with photovoltaic installations?
Yes, it incorporates a function of Integration PV-storage-se that allows prioritizing the cargo of the vehicle with auto-generated solar energy, ideal next to solar of greater power.

5. Is it compatible with OCPP load management systems?
Yes, it is compatible with OCPP 1.6 JSON and OCPP 2.0.1 J (Upgradeable), facilitating its integration into remote recharge points management platforms. Consult more technical content in the Blog Tienda Solar.
