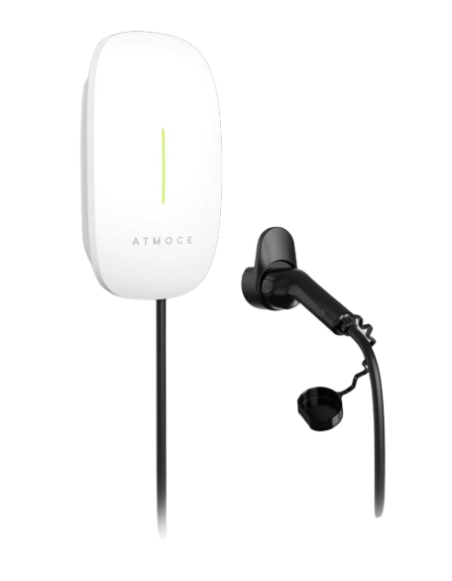

Charger sees single phase Atmoce MEV-7K-S 7kw

Beneficios del Cargador VE Atmoce MEV-7K-S

The MEV-7K-S is the option of entry of the range Atmoce M-EV Charger, especially indicated for housing with single-phase installation, the most common power supply in residential homes. With a Nominal power of 7kw and one Nominal current of 32aIt allows a remarkably faster recharge than a conventional plug, without having to have a three-phase rush. Your IP65 protection and resistance to impact Ik10 guarantee a reliable operation both indoors and abroad, backed by a Dear service life of 15 years.

At the security level, it incorporates 30mA Type A + 6MA DC Current Length Protection, protection against overcurrent, overvoltage, subtension, overfigh, subfrequency and overtemperature, as well as cybersecurity and reinforced insulation, Specially relevant guarantees on a permanently connected equipment to the home network and the WiFi of the home.

Its function of Integration PV-storage-se It allows to prioritize the cargo of the vehicle with self-generated solar energy, making it a natural complement for residential facilities that have already solar and inverters hybrid, Maximizing the self-consumption of the home.

Intelligent loading functions

The MEV-7K-S It incorporates the same "smart" functions that the rest of the M-EV Charger family: schedule, Priority to green energy, Dynamic loading and up Four load start modes (Plug and Play, RFID card, mobile application or Bluetooth). The schedule It is especially useful in this model of residential use, allowing you to take advantage of more economical electricity rates in valley hours without the need for manual intervention every night.

Detailed technical characteristics

Electrical specification:

• Model: MEV-7K-S
• Network configuration: 1p + no + PE
• Nominal voltage: 220/230 / 240V AC
• Operating voltage range: 184V ~ 276V AC
• Nominal current: 32a
• Nominal frequency: 50 / 60Hz
• Nominal power: 7kw
• Own consumption: ≤5w
• Overvoltage protection (AC): Type 2
• Power measurement accuracy: 2%

Mechanical specification:

• Color: white
• Dimensions (at x an x PR): 365 x 201 x 99.5mm
• Weight: 3.3kg
• Operating temperature: -30 ° C ~ + 50 ° C
• Moisture of operation: 5% ~ 95%
• Maximum performance altitude: ≤2000m
• Differential protection (RCD): 30mA Type A + 6MA DC
• Protection against impacts: Ik10
• Degree of protection: Ip65
• Load connector: Type 2 with cable
• Case material: PC (polycarbonate)
• Installation: Mounting on wall or post (optional)

Electrical protections: Overcurrent, residual current, grounding, overvoltage, surge of network, subtension, overfrecuency, subfrequency and overtemperature.

Interface and interaction:

• LED indicator: Green / yellow / red
• RFID Reader: MiFare Classic ISO / IEC 14443-A, Dopire Duox (Optional), Felica (Optional)
• Start Modes: Plug and Play, RFID card, mobile application

Communication:

• Interface: WiFi, Ethernet, Bluetooth
• Ocpp: 1.6 JSON / 2.0.1 J (upgradeable)

Certifications: CE, CB, ROHS, REACH, EN 18031-1compliance EMC (In IEC 62311, at 300 328, at 300 330, at 301 489 series, in IEC 61000-6-1 / 6-3, in IEC 61851-21-2) and Safety In IEC 61851-1: 2019.

Frequently Asked Questions (FAQ)

1. What loading does the MEV-7K-S?
This model offers a Nominal power of 7kw in single-phase configuration 1p + no + PE, with a Nominal current of 32a, Ideal for most residential homes.

2. Do I need three-phase installation to use this charger?
No, the MEV-7K-S It is designed specifically for installations single-phase (220/230 / 240V), the most common supply type in residential homes.

3. Can it be installed abroad?
Yes, thanks to your IP65 protection and resistance to impact Ik10, the charger is prepared for both indoor installation and outdoor, supporting a temperature range of -30 ° C A + 50 ° C.

4. Is it compatible with photovoltaic installations?
Yes, it incorporates a function of Integration PV-storage-se that allows prioritizing the cargo of the vehicle with auto-generated solar energy, ideal next to solar.

5. Is it compatible with OCPP load management systems?
Yes, it is compatible with OCPP 1.6 JSON and OCPP 2.0.1 J (Upgradeable), facilitating its integration into remote recharge points management platforms. Consult more technical content in the Blog Tienda Solar.

Complete your self-consumption installation in Tienda Solar with solar, inverters hybrid and lithium batteries to maximize your self-consumption.
