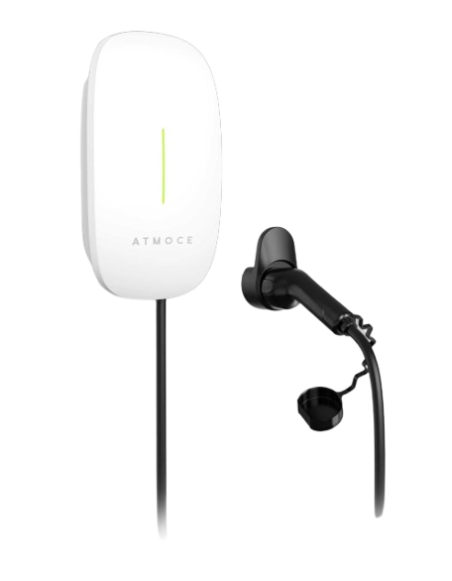

Charger sees three-phase Atmoce MEV-11K-T 11kw

Beneficios del Cargador VE Atmoce MEV-11K-T

This three-phase charger stands out by combining a particularly robust construction with intelligent load management. Your IP65 protection and resistance to impact Ik10 They make it a reliable solution for both indoor installation and abroad, capable of supporting adverse weather conditions without compromising their operation, backed by a Dear service life of 15 years.

At the electrical safety level, it incorporates 30mA Type A + 6MA DC Current Length Protection, protection against overcurrent, overvoltage, subtension, overfigh, subfrequency and overtemperature, as well as cybersecurity and reinforced insulation, a set of guarantees especially relevant for domestic installations connected to the WiFi network of the home.

Its function of Integration PV-storage-se It allows to maximize photovoltaic self-consumption, prioritizing the vehicle's load with own solar energy when it is available. This makes it a natural complement for facilities that already have solar and inverters hybrid, allowing to charge the electric car with self-generated energy and reduce dependence on the network.

Intelligent loading functions

The MEV-11K-T It incorporates a set of "SMART" functions designed to optimize the power consumption of the home: schedule, Priority to green energy, Dynamic loading and up Four load start modes (Plug and Play, RFID card, mobile application or Bluetooth). These functions allow, for example, to program the recharge of the vehicle in valley hours or automatically adjust the available power according to the simultaneous consumption of other household appliances, avoiding overloads in the electrical installation.

Detailed technical characteristics

Electrical specification:

• Model: MEV-11K-T
• Network configuration: 3p + no + PE
• Nominal voltage: 380/400 / 415V AC
• Operating voltage range: 320V ~ 480V AC
• Nominal current: 16a
• Nominal frequency: 50 / 60Hz
• Nominal power: 11kw
• Own consumption: ≤5w
• Overvoltage protection (AC): Type 2
• Power measurement accuracy: 2%

Mechanical specification:

• Color: white
• Dimensions (at x an x PR): 374 x 226 x 164mm
• Weight: 5.8kg
• Operating temperature: -30 ° C ~ + 50 ° C
• Moisture of operation: 5% ~ 95%
• Maximum performance altitude: ≤2000m
• Differential protection (RCD): 30mA Type A + 6MA DC
• Protection against impacts: Ik10
• Degree of protection: Ip65
• Load connector: Type 2 with cable
• Case material: PC (polycarbonate)
• Installation: Mounting on wall or post (optional)

Electrical protections: Overcurrent, residual current, grounding, overvoltage, surge of network, subtension, overfrecuency, subfrequency and overtemperature.

Interface and interaction:

• LED indicator: Green / yellow / red
• RFID Reader: MiFare Classic ISO / IEC 14443-A, Dopire Duox (Optional), Felica (Optional)
• Start Modes: Plug and Play, RFID card, mobile application

Communication:

• Interface: WiFi, Ethernet, Bluetooth
• Ocpp: 1.6 JSON / 2.0.1 J (upgradeable)

Certifications: CE, CB, ROHS, REACH, EN 18031-1compliance EMC (In IEC 62311, at 300 328, at 300 330, at 301 489 series, in IEC 61000-6-1 / 6-3, in IEC 61851-21-2) and Safety In IEC 61851-1: 2019.

Frequently Asked Questions (FAQ)

1. What loading does the MEV-11K-T?
This model offers a Nominal power of 11kw in three-phase configuration 3p + no + PE, with a Nominal current of 16a, Ideal for electric vehicles compatible with three-phase load of this level.

2. Can it be installed abroad?
Yes, thanks to your IP65 protection and resistance to impact Ik10, the charger is prepared for both indoor installation and outdoor, supporting a temperature range of -30 ° C A + 50 ° C.

3. Is it compatible with photovoltaic installations?
Yes, it incorporates a function of Integration PV-storage-se that allows prioritizing the cargo of the vehicle with auto-generated solar energy, optimizing self-consumption with your solar.

4. What loading forms of load do you admit?
It offers up to four modes: Plug and play (Connect and load automatically), RFID card, mobile application and Bluetooth For local configuration.

5. Is it compatible with OCPP load management systems?
Yes, it is compatible with OCPP 1.6 JSON and OCPP 2.0.1 J (Upgradeable), the most commonly used standard in remote recharge points, which facilitates its integration into fleet management platforms or cargo communities. Consult more technical content on electrical mobility and self-consumption in the Blog Tienda Solar.

Complete your self-consumption installation in Tienda Solar with solar, inverters hybrid and lithium batteries to maximize your self-consumption.
