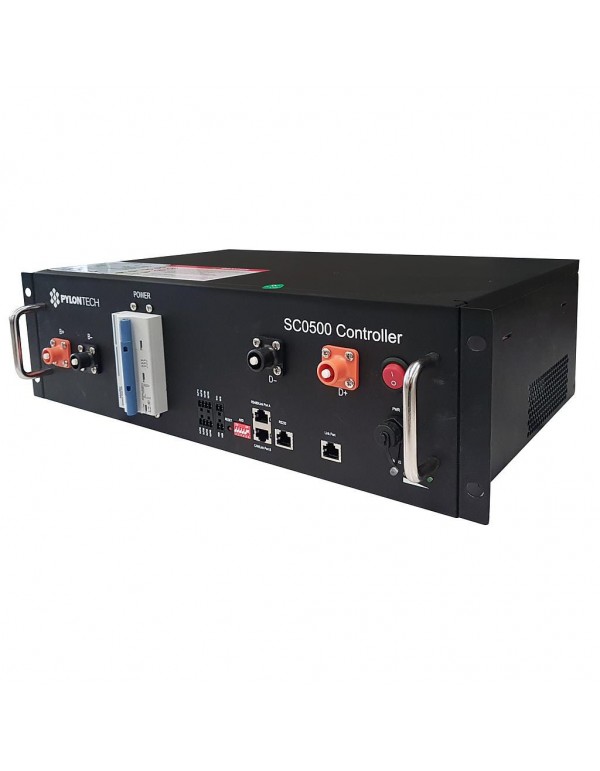

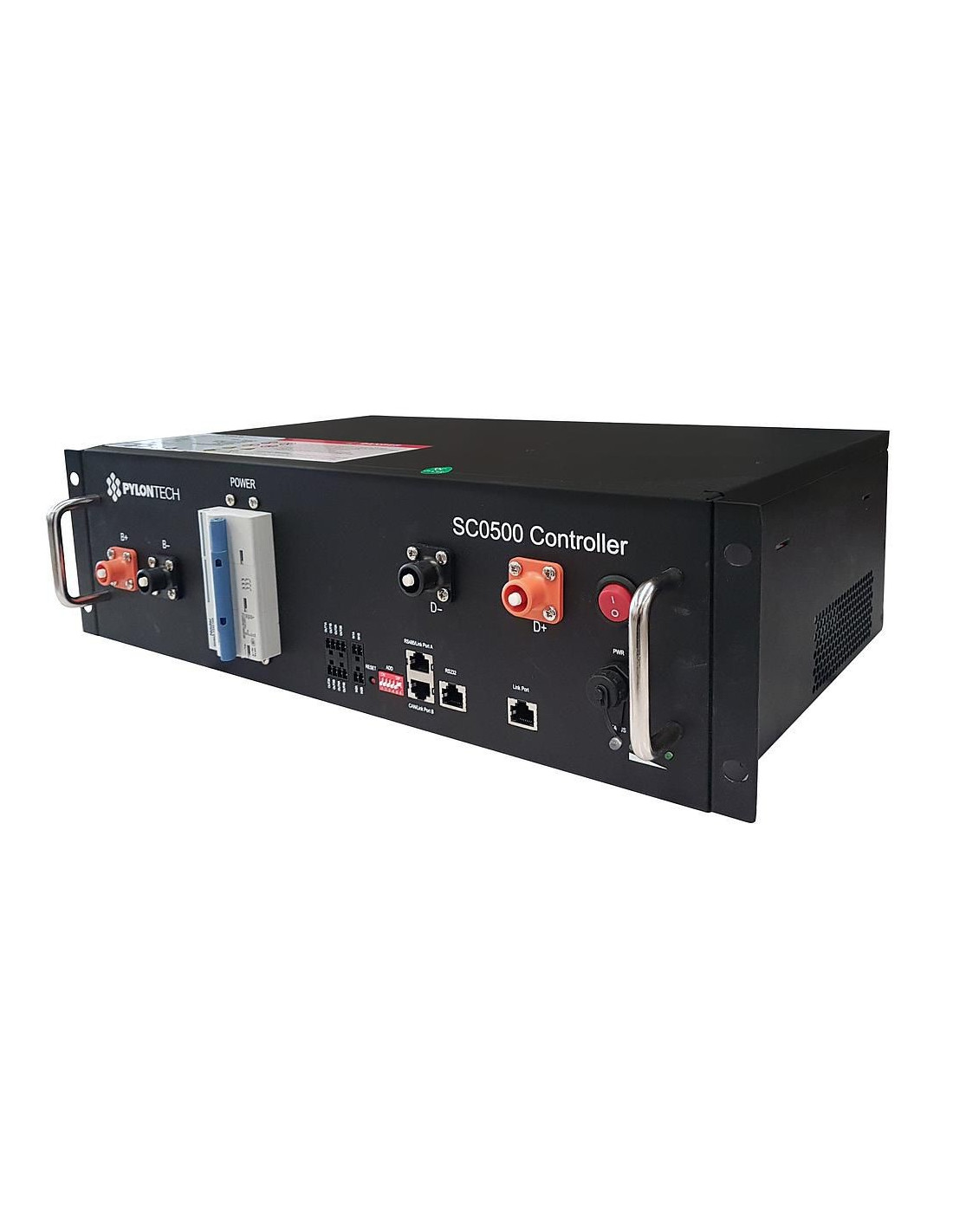

BMS Pylontech SC500-100S - Controller Pylontech for PowerCube-X1

Benefits of the BMS Pylontech Sc500-100s

The BMS SC500-100S It is positioned as a reference solution for high voltage installations thanks to its centralized management capacity of up 10 Battery modules In the same rack PowerCube-X1. Unlike more basic market controllers, it incorporates a Smart loading model that automatically optimizes the loading and unloading cycles, prolonging the useful life of the battery set beyond the 15 years of operation.

Its rank of Work voltage of 60 to 600 VDC It makes it especially versatile for residential and commercial projects that require scalability, allowing us to combine it with lithium batteries High capacity without compromising system security. In addition, the Isolation and protection Electric integrated, together with the Active cell rolling, they ensure a homogeneous performance between modules and reduce the risk of premature degradation of cells.

Its bass Own consumption of 8W minimizes energy losses of the system, while communication Modbus RTU / Can guarantees a fluid integration with Inverters solar Latest generation, allowing a complete monitoring of the state of charge (SOC) and health (SOH) of the battery in real time. If you also need to reinforce the physical installation of the system, in the store you will find solar Compatible with any roof or soil configuration.

Why choose a PowerCube-X1 system with this controller?

Modular systems such as PowerCube-X1 allow for dimensioning storage installation progressively: you can start with 2 modules and expand 10 units As the energy needs of the home or business grow, without the need to replace the controller. This converts the SC500-100S into a long-term investment, especially in facilities combined with solar panels High production, where to maximize storage capacity is key to self-consumption.

Integration with other system equipment

The protocol Modbus RTU / Can of the SC500-100S ensures compatibility with most market teams, from Inverters Networking Until configurations with Microinverters, thus facilitating hybrid and network injection projects. If you have doubts about how to size your full installation, in the Blog Tienda Solar You will find purchase guides, comparative techniques and tips prepared by our experts in photovoltaic energy.

Detailed technical characteristics

• Related product: Powercube-x1
• Driver working voltage: 60-600 VDC
• System operating voltage: 60-600 VDC
• Maximum loading / unloading current: 100a
• Own consumption: 8w
• Dimensions (an × prof × al): 442 × 390 × 132 mm
• Weight: 8.5 kg
• Communication: Modbus RTU / Can
• Degree of protection: Ip20
• Operating life: 15+ years
• Operating temperature: -20 ° C to 65 ° C
• Storage temperature: -40 ° C to 80 ° C
• Compatible modules: H48050 and H48074
• Rack configuration: minimum 2 modules, maximum 10 modules

Protection and alarm functions:

• End of charge / download
• Upload
• Cargo / unloading overcurrent
• High / Low Temperature
• Operating record
• Current monitoring, tension, temperature, SOC and SOH

Management and monitoring functions:

• Cell rolling
• Smart loading model
• Capacity retention calculation
• Isolation and protection
• Alarm management

Frequently Asked Questions (FAQ)

1. With what batteries is the BMS SC500-100S compatible?
The controller Sc500-100s It is compatible exclusively with high voltage battery modules Pylontech H48050 and H48074, within the system Powercube-x1.

2. How many battery modules can I connect to a single BMS?
You can connect between a minimum of 2 modules and a Maximum of 10 units In the same rack, depending on the energy capacity you need your installation.

3. What type of communication used to integrate with the inverter?
Use protocols Modbus RTU and Can, which guarantees a stable and compatible communication with the majority of inverters hybrid of the current market.

4. What protections incorporate this BMS?
Includes protection against Overloads, loading / unloading overcurrents, high and low temperatures, as well as a system of electrical insulation and continuous registration of all operating events.

5. What is the estimated useful life of the SC500-100S controller?
The manufacturer indicates a useful life of operation over 15 years, in line with the typical durability of the Gel batteries and high-voltage lithium that manages.

6. What degree of IP protection does the equipment have and where can it be installed?
It has a degree of protection Ip20, so it is indicated for indoor installation, in technical rooms or protected spaces of moisture and dust. For doubts about location and installation, you can consult the specialized guides of the Blog Tienda Solar.
