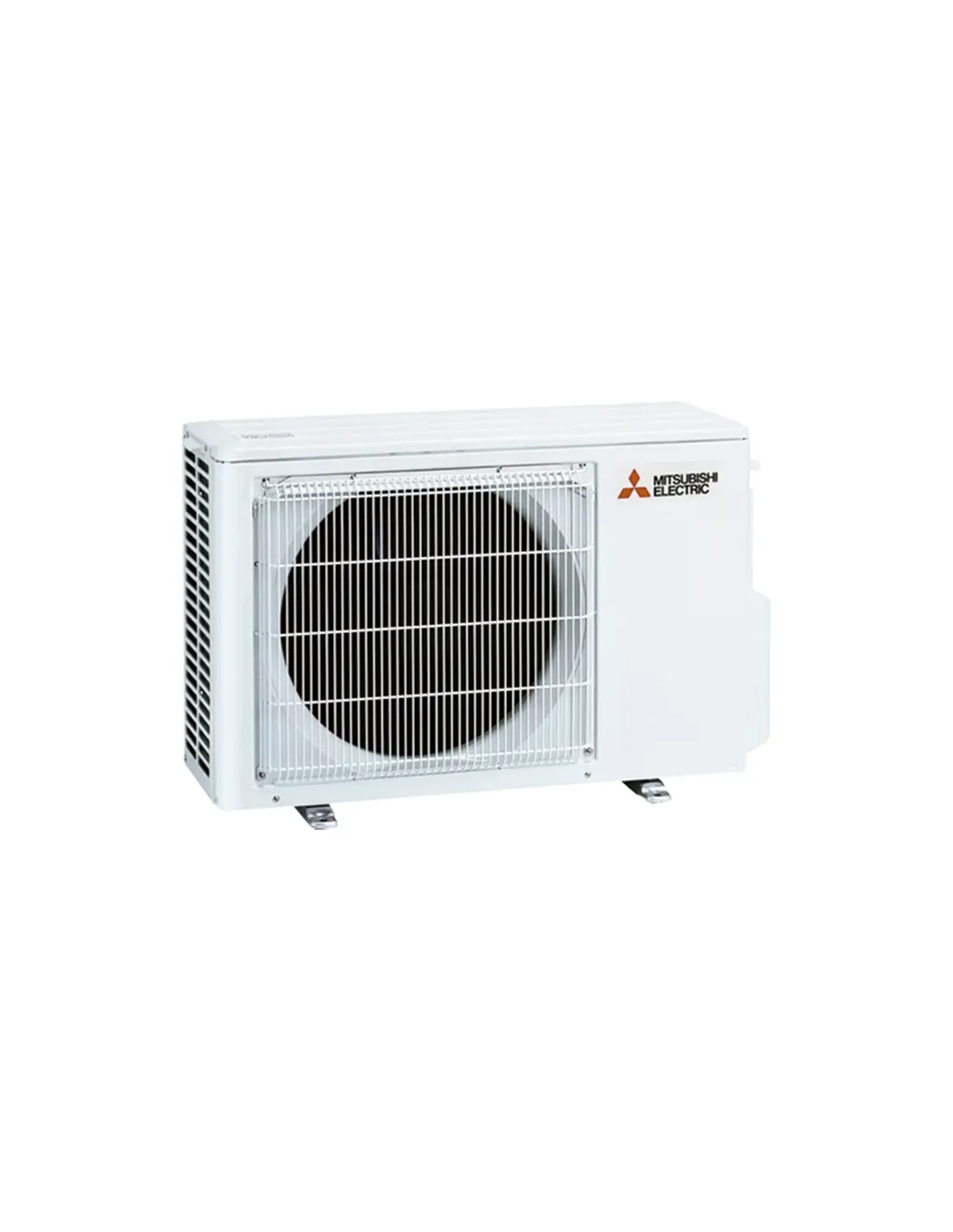

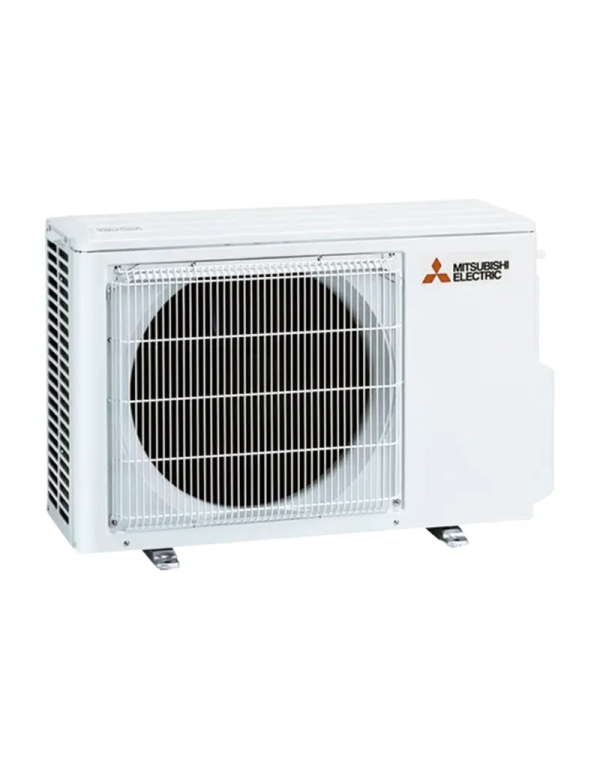

Outdoor unit Mitsubishi MXZ-2HA50VF Multi 2x1
MXZ-2HA50VF
€1,107.15
Tax included
Lto outdoor unit Mitsubishi Electric MXZ-2HA50VF is the condenser module Greater power within the range Multi Split 2x1, compatible Exclusively with interior units series Msz-hr, allowing air-condition 2 rooms simultaneously. Reaches a 5KW cold nominal capacity (range 1,1-5,4KW) and in 6KW (range 1-6,4KW), with a Seer of 7.78 (A ++) and a SCOP of 4.30 (A +). Works with gas R32 (0.9kg), with an intensity maximum 12:2A to 230V, a 225KWh annual electrical consumption in cold and 1.043KWh in heating. Maintains the same dimensions as the Lower model (550 x 800 x 285mm, 37kg), with an air flow of 32.7 m³ / min and a sound level of 47db (a), admitting 30 meters of total pipe and a Outdoor operation range up -15 ° C. In Heating.
More power, same compact format
The MXZ-2HA50VF offers 1kw additional cold and 1.7kw more in heat with respect to the MXZ-2HA40VF, keeping exactly the Same dimensions and the same weight (550 x 800 x 285mm, 37kg), which facilitates the replacement or dimensioning of projects without having to reserve more space at the external installation point. This higher power makes it especially suitable for combinations of two live-large-sized stays, such as a living room and a master bedroom.
Despite its greatest power, the Seer of 7,78 It is maintained at a very competitive level, slightly lower than that of the MXZ-2HA40VF (8, 12) but still much higher than that of the individual split teams of the HR series. Complement this system with the energy of your solar It is especially profitable given its highest annual electrical consumption with respect to the lower power model.
Prepared for cold winters
Like the rest of the MXZ-HA range, this outdoor unit operates in heating until -15 ° C., a markedly broader range than that of the individual split units of the HR series (limited at -10 ° C), guaranteeing the functioning of the heat pump even in the most demanding winter conditions.
Detailed technical characteristics
- Maximum interior units: 2
- Compatibility: Exclusive with internal units MSZ-HR
- Nominal cold (min-max): 5KW (1.1-5.4kw)
- Nominal heat (min-max): 6KW (1-6,4KW)
- Cold capacity: 4,300 kcal / h
- Capacity in heat: 5.160 Kcal / h
- Cold nominal consumption: 1,52kw
- Nominal consumption Heat: 1,54kw
- Annual electrical consumption (cold): 225kwh / year
- Annual electrical consumption (heat): 1.043kwh / year
- EER / COP: 3.29 / 3,90
- Seer (Label): 7.78 (A ++)
- SCOP (tag): 4.30 (A +)
- Air flow: 32.7 m³ / min
- Sound level: 47db (a)
- Sonora power: 64db (a)
- Dimensions (X an X FO): 550 x 800 x 285mm
- Weight: 37kg
- Coolant: R32, 0.9kg (PCA 675, 0.61 TCO2EQ)
- Tension / phases - Maximum intensity: 230V / 1 - 12:2A
- Diameter Pipes (Liquid / Gas): 6,35mm x2 / 9,52mm x2
- Maximum tubing length (vertical / total): 15 (10 Yes Outside over) / 30m
- Maximum tubing length per unit indoor: 20m
- Operation range (cold): -10 ° C ~ + 46 ° C
- Operation range (heat): -15 ° C ~ + 24 ° C
Frequently Asked Questions (FAQ)
1. How is MXZ-2H40VF difference?
It offers greater power (5kw versus 4kw cold, 6kw versus 4,3kw in heat), maintaining identical dimensions and weight, although with a slightly lower SEE (7.78 versus 8.12).
2. With what interior units is compatible?
It is compatible Exclusively with interior units of the MSZ-HR series, as specified by the manufacturer.
3. How many rooms can I have air condition?
Until 2 independent stays, each with its own internal unit MSZ-HR operating autonomously.
4. Does it work well in cold climates?
Yes, it operates in heating until -15 ° C of outside temperature, a broader range than that of the individual split units of the HR series.
5. What maximum distance does it admits to the interior units?
Admits 30 meters of total pipe, with a maximum of 20 meters per unit. Consult more technical content in the Blog Tienda Solar.
