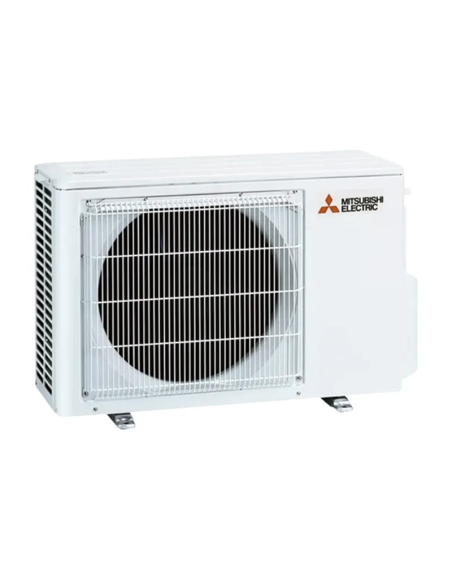

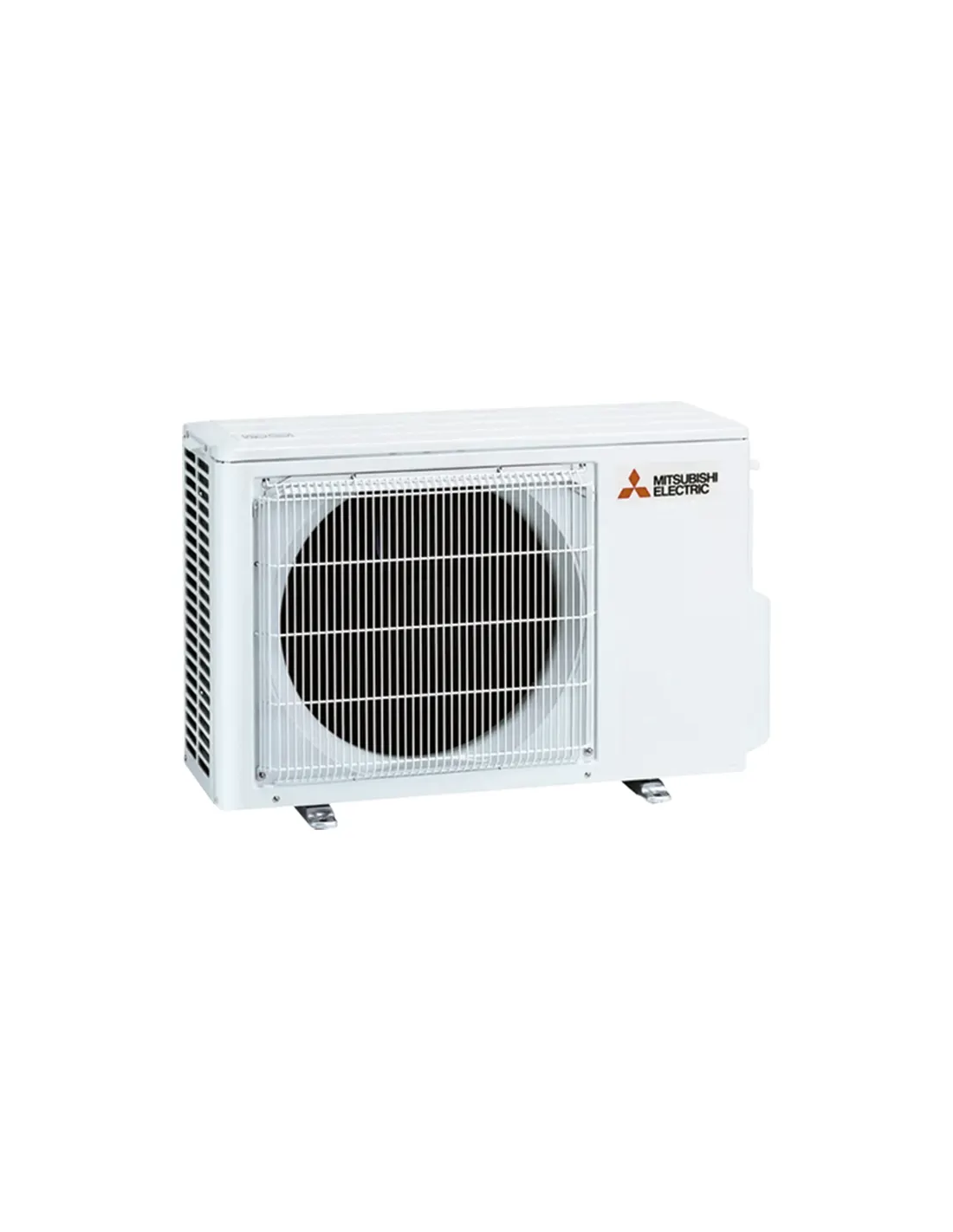

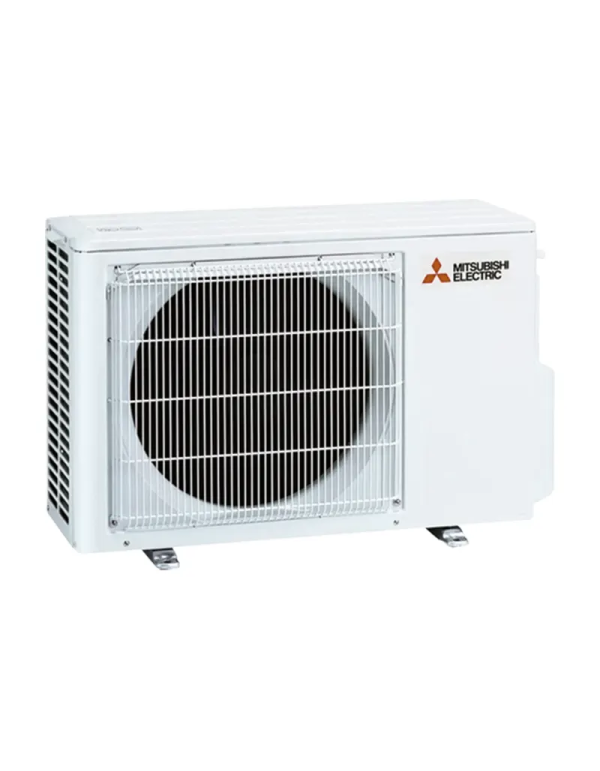

Outdoor unit Mitsubishi MXZ-2HA40VF Multi 2x1
Outdoor unit Mitsubishi MXZ-2HA40VF Multi 2x1

Outdoor unit Mitsubishi MXZ-2HA40VF Multi 2x1

MXZ-2HA40VF
€975.26
Tax included

The outdoor unit Mitsubishi Electric MXZ-2H40VF is the condenser module of a system Multi Split 2x1, exclusively compatible with the interior units of the series Msz-hr, allowing to air upgrade 2 rooms With a single external equipment. Offers a 4KW cold nominal capacity (range 1,1-4,3kw) and in 4,3kw heat (range 1-4.7kw), with the Seer higher in its category (8,12, A ++) and a SCOP of 4.30 (A +). Works with gas R32 (0.9kg), with a maximum intensity of 12:2A to 230V, a Annual electricity consumption of single 172kwh and 1.043KWh in heating. Dimensions 550 x 800 x 285mm and a weight of 37kg, it admits 30 meters of total pipe and operates in an outer temperature range up to -15 ° C. In heating, very resistant to cold climates and demanding winters.



Designed specifically for the MSZ-HR series

Unlike other multi-split exterior units of the market, the manufacturer specifies that the MXZ-2H40VF is compatible exclusively with interior units of the MSZ-HR series (as the models MSZ-HR25VFK, MSZ-HR35VFK or MSZ-HR42VFK Already available in our store), which guarantees an optimized integration between both equipment, maximizing the joint performance of the system. This combination allows air conditioning 2 independent stays With a single external equipment, reducing the impact on facade.

Your Seer of 8,12 It is notably higher than that of the individual split teams of the HR series itself (which are around 6.2-7.2), thanks to the optimization of the Inverter compressor by distributing the load between two interior units, a usual pattern in multi-split quality systems. Complement this system with the energy of your solar It allows to maximize savings in facilities that air climate to two rooms simultaneously.

Performance in cold climates

A remarkable aspect of this outdoor unit is your Range of operation in heating up to -15 ° C, significantly broader than that of the individual split units of the HR series (limited at -10 ° C), which makes it especially suitable for housing in areas of cold winters where it is needed to guarantee the functioning of the heat pump even with outer temperatures very Low

Detailed technical characteristics

  • Maximum interior units: 2
  • Compatibility: Exclusive with internal units MSZ-HR
  • Nominal cold (min-max): 4KW (1,1-4.3kw)
  • Nominal heat (min-max): 4,3kw (1-47kw)
  • Cold capacity: 3.440 kcal / h
  • Capacity in heat: 3.698 kcal / h
  • Cold nominal consumption: 1,05kw
  • Nominal consumption Heat: 0,91kw
  • Annual electrical consumption (cold): 172kwh / year
  • Annual electrical consumption (heat): 1.043kwh / year
  • EER / COP: 3,81 / 4,73
  • Seer (Label): 8,12 (A ++)
  • SCOP (tag): 4.30 (A +)
  • Air flow: 28.4 m³ / min
  • Sound level: 44db (a)
  • Sonora power: 59db (a)
  • Dimensions (X an X FO): 550 x 800 x 285mm
  • Weight: 37kg
  • Coolant: R32, 0.9kg (PCA 675, 0.61 TCO2EQ)
  • Tension / phases - Maximum intensity: 230V / 1 - 12:2A
  • Diameter Pipes (Liquid / Gas): 6,35mm x2 / 9,52mm x2
  • Maximum tubing length (vertical / total): 15 (10 Yes Outside over) / 30m
  • Maximum tubing length per unit indoor: 20m
  • Operation range (cold): -10 ° C ~ + 46 ° C
  • Operation range (heat): -15 ° C ~ + 24 ° C

Frequently Asked Questions (FAQ)

1. With what interior units is the MXZ-2HA40VF compatible?
It is compatible Exclusively with interior units of the MSZ-HR series, as specified by the manufacturer itself, not being compatible with other interior series Mitsubishi Electric.

2. How many stays can I air condition with this outdoor unit?
Until 2 independent stays, each with its own internal unit MSZ-HR operating autonomously.

3. Does it work well in cold climates?
Yes, it operates in heating until -15 ° C of outside temperature, a broader range than that of the individual split units of the HR series.

4. How maximum distance does it admits to the interior units?
Admits 30 meters of total pipe, with a maximum of 20 meters per unit, and up to 15 meters of vertical level difference (10m if the outdoor unit is installed above the inside).

5. Is it more efficient than installing two individual split teams?
Yes, with a Seer of 8,12It exceeds significantly that of the individual split teams of the HR series (6.2-7.2), thanks to the joint optimization of the compressor. Consult more technical content in the Blog Tienda Solar.
