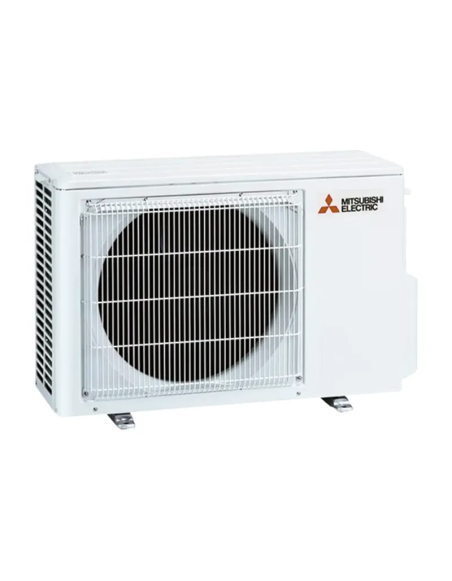

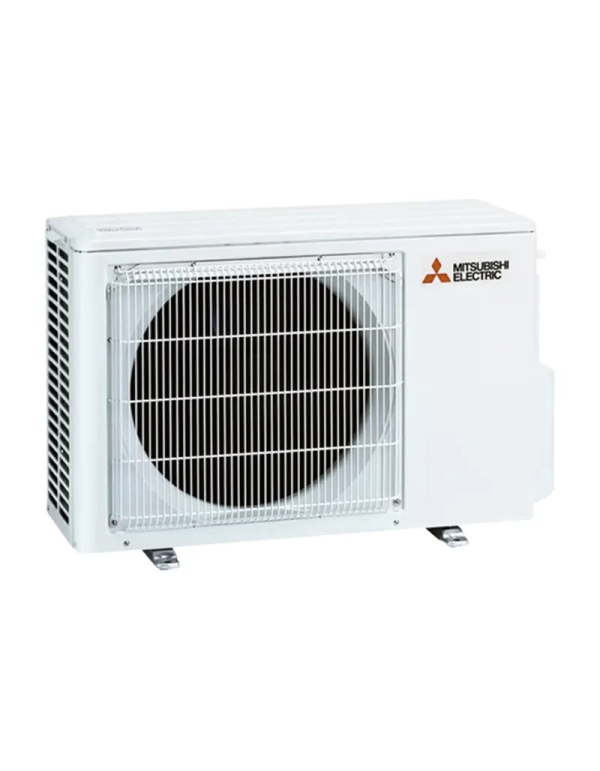

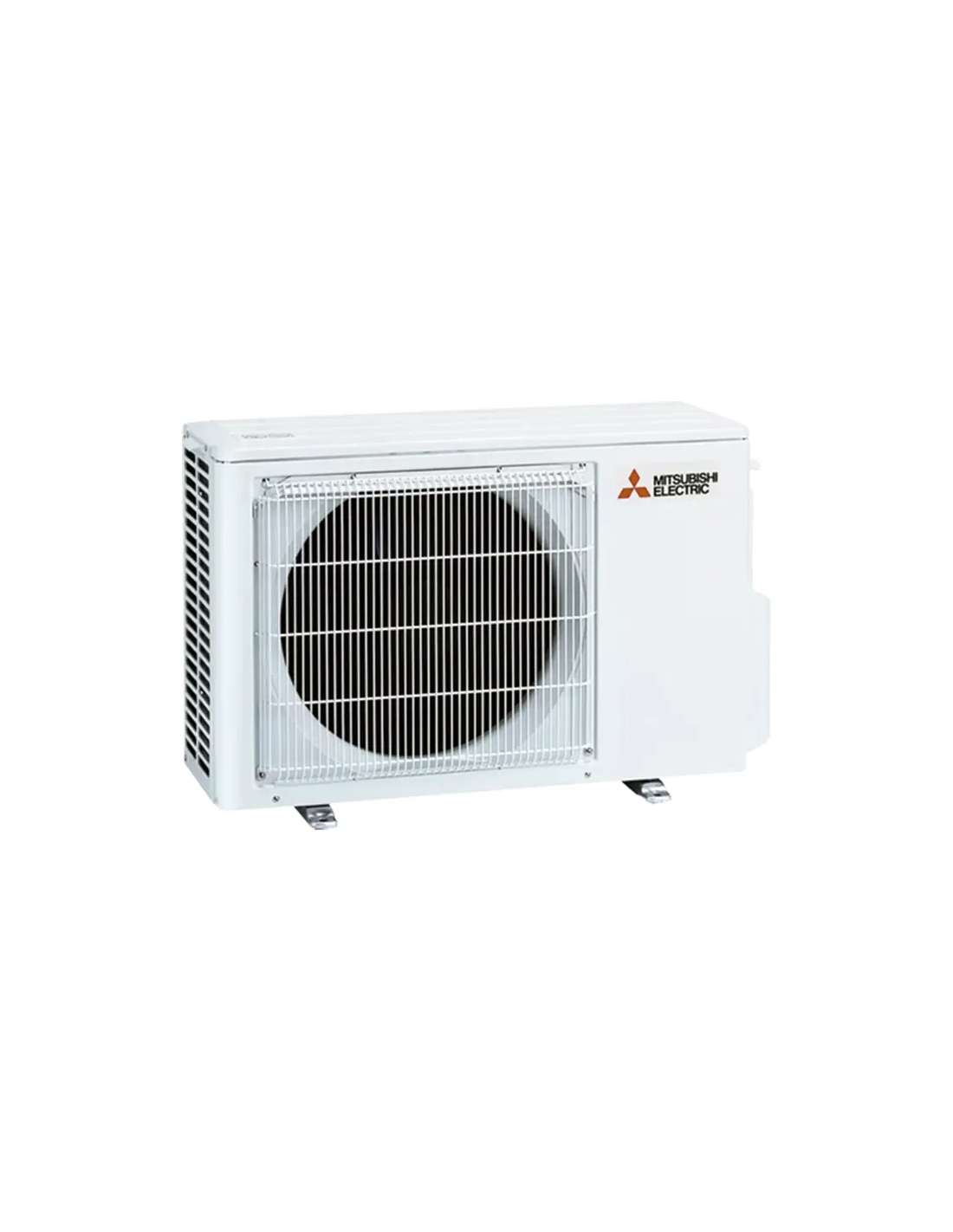

Outdoor unit Mitsubishi MXZ-3HA50VF Multi 3x1

Climate to 3 stays with a single team

The MXZ-3HA50VF extends the capacity of the MXZ-HA range by managing 3 indoor units MSZ-HR Simultaneously and independently, ideal for homes where three rooms are needed (for example, two bedrooms and a living room) without installing three different exterior units. Its rank of cold nominal power (2,9-6,5kw) Part of a higher higher than the 2x1 models, a reflection that it is designed to work habitually with a minimum load distributed among the three rooms.

Despite managing an additional indoor unit with respect to 2x1 models, it maintains a Seer 7.26, slightly lower than MXZ-2H40VF (8, 12) but still much higher than that of the individual split teams of the HR series. Complement this system with the energy of your solar It is especially profitable in homes where several rooms are climated at the same time, given the highest added consumption of the whole.

Greater scope for more complex projects

The MXZ-3HA50VF supports a Maximum tubing length of 50 meters, SENSIOUSIAN higher than 30 meters from the 2x1 models, distributed among the 3 connection lines (each of up to 25 meters). This greater available length is especially useful in housing of greater surface or several plants, where the rooms to be climated are further away from each other.

Resistance to cold like the rest of the range

Like the rest of MXZ-ha units, operates in heating up -15 ° C of outside temperature, guaranteeing the operation of the heat pump even in cold winters, much higher than the limit of -10 ° C of the individual split equipment.

Detailed technical characteristics

• Maximum interior units: 3
• Compatibility: Exclusive with internal units MSZ-HR
• Nominal cold (min-max): 5KW (2.9-6.5kw)
• Nominal heat (min-max): 6KW (2,6-7,5KW)
• Cold capacity: 4,300 kcal / h
• Capacity in heat: 5.160 Kcal / h
• Cold nominal consumption: 1,26kw
• Nominal consumption Heat: 1,30kw
• Annual electrical consumption (cold): 241kwh / year
• Annual electrical consumption (heat): 1.394kwh / year
• EER / COP: 3.97 / 4,62
• Seer (Label): 7.26 (A ++)
• SCOP (tag): 4,02 (A +)
• Air flow: 31.0 m³ / min
• Sound level: 46db (a)
• Sonora power: 61db (a)
• Dimensions (X an X FO): 710 x 840 x 330mm
• Weight: 57kg
• Coolant: R32, 1,4KG (PCA 675, 0.95 TCO2EQ)
• Tension / phases - Maximum intensity: 230V / 1 - 18A
• Diameter Pipes (Liquid / Gas): 6,35mm X3 / 9,52mm X3
• Maximum tubing length (vertical / total): 15 (10 Yes Outside on Interior) / 50m
• Maximum tubing length per unit indoor: 25m
• Operation range (cold): -10 ° C ~ + 46 ° C
• Operation range (heat): -15 ° C ~ + 24 ° C

Frequently Asked Questions (FAQ)

1. How many rooms can I air with this unit?
Until 3 independent stays, each with its own internal unit MSZ-HR operating autonomously.

2. With what interior units is compatible?
It is compatible Exclusively with interior units of the MSZ-HR series, as specified by the manufacturer.

3. How maximum distance does it admits to the interior units?
Admits 50 meters of total pipe, distributed between 3 lines of up to 25 meters each, above that of the 2x1 models.

4. Is it larger than 2x1 models?
Yes, it measures 710x840x330mm and weighs 57kg, significantly larger than the 550x800x285mm and 37kg of MXZ-2H40VF / 50VF models.

5. Does it work well in cold climates?
Yes, it operates in heating until -15 ° C of outside temperature, like the rest of the MXZ-HA range. Consult more technical content in the Blog Tienda Solar.
