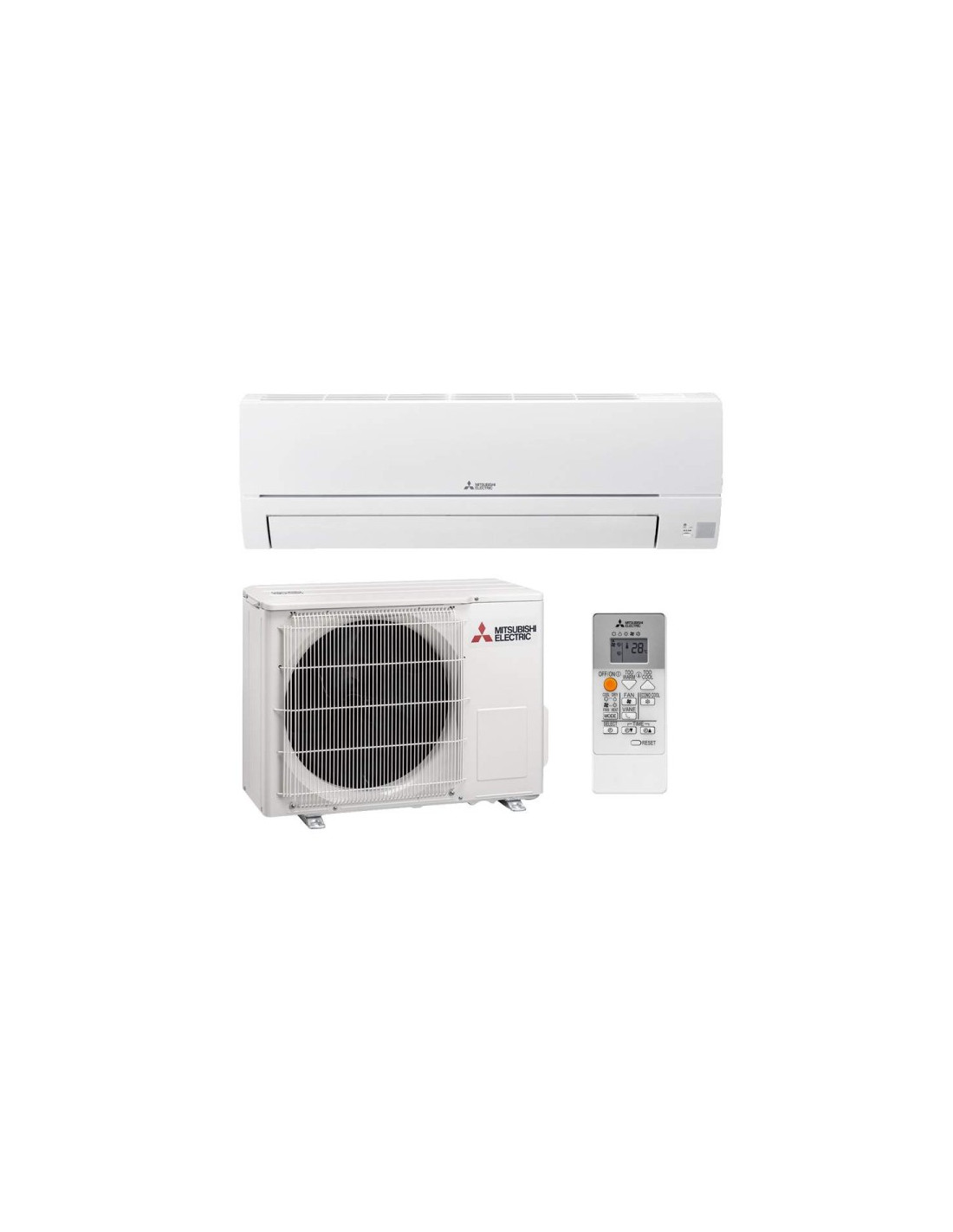

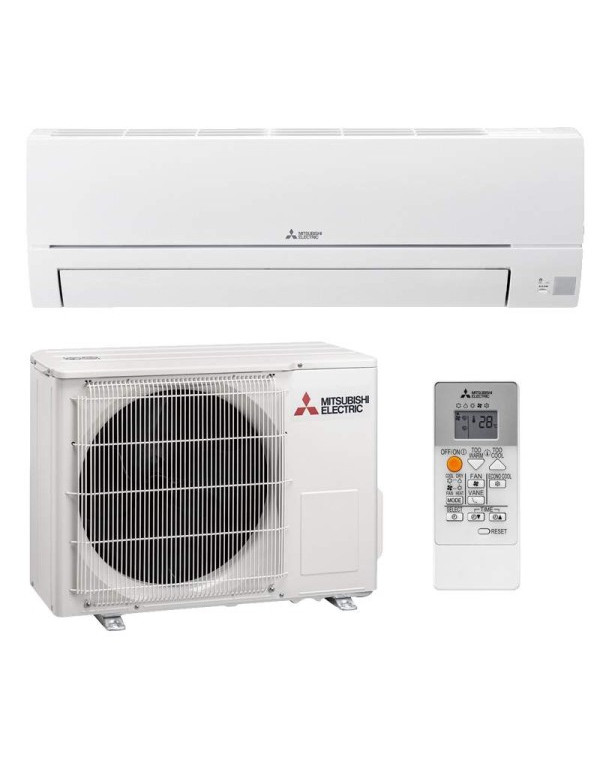

Air conditioning Mitsubishi MSZ-HR60VFK WIFI

The most efficient model of the HR series

The MSZ-HR60VFK stands out for offering the Seer highest of the entire range (7.2), surpassing even models MSZ-HR42VFK and MSZ-HR50VFK (both with Seer 6,5), in addition to Higher SCOP in warm climate area (5,4). This shows that, in Mitsubishi Electric, the jump to greater power not only does not penalize efficiency, but in this section of the range Improvement notably, making it the most recommendable option who prioritizes energy savings in large rooms or open spaces.

With this model, both the indoor and the exterior unit give a size jump with respect to the previous models: the interior happens to measure 305 x 923 x 263mm (compared to 280x838x228mm), and the gas connection is extended to 12,7mm, reflection of the highest the necessary thermal exchange capacity. Feed this equipment with the energy of your solar It is highly recommended given its annual electrical consumption sensitive above that of the lower-end models.

Greater scope of installation

The MSZ-HR60VFK supports 30 meters of total pipe and 15 meters of vertical level difference, figures above 20/12 meters of lower-end models, facilitating projects where the outdoor unit should be located further from the inside.

Intelligent control from the mobile

With Integrated wifi, MSZ-HR60VFK allows you to control the temperature, operating modes and schedule schedules directly from the smartphone, without the need for additional modules.

Detailed technical characteristics

Capacity and performance:

• Nominal cold (min-max): 6,1kw (1,7-7,1kw)
• Nominal heat (min-max): 6,8kw (1.5-8.5kw)
• Cold capacity: 5.246 Kcal / h
• Capacity in heat: 5.848 Kcal / h
• Cold nominal consumption: 1,81kw
• Nominal consumption Heat: 1,81kw
• Annual electrical consumption (cold): 296kwh / year
• Annual electrical consumption (heat, intermediate zone): 1.430kwh / year
• Annual electrical consumption (heat, warm zone): 674kwh / year
• EER / COP: 3.37 / 3,76
• Seer (Label): 7.2 (A ++)
• SCOP Intermediate Zone (Label): 4.5 (a +)
• SCOP CLEAR ZONE (tag): 5.4 (A +++)

Indoor unit:

• Air flow (Silence / low / medium / high / maximum): 10.4 / 12.6 / 15.4 / 19.6 m³ / min
• Sound level (silence / low / medium / high / maximum): 33/38/44/50 dB (A)
• Sonora power: 65db (a)
• Dimensions (X an X FO): 305 x 923 x 263mm
• Weight: 12,5kg

Outdoor unit:

• Air flow: 42.8 m³ / min
• Sound level: 53db (a)
• Sonora power: 65db (a)
• Dimensions (X an X FO): 714 x 800 x 285mm
• Weight: 40kg
• Coolant: R32, 1,05kg (PCA 675, 0.70 TCO2EQ)
• Tension / phases - Maximum intensity: 230v / 1 - 14.1a
• Diameter Pipes (Liquid / Gas): 6.35 / 12.7mm
• Maximum tubing length (vertical / total): 15 / 30m
• Outdoor operation range (refrigeration): -10 ° C ~ + 46 ° C
• Outdoor operation range (heating): -10 ° C ~ + 24 ° C

Frequently Asked Questions (FAQ)

1. Which surface can the MSZ-HR60VFK air climate?
With a Nominal power of 6.1kw cold, This model is indicated for wide open spaces or spaces, typically between 60-65m² according to isolation and orientation.

2. Is the most efficient model of the range?
Yes, with a Seer from 7.2, It is the highest of the entire HR series, even surpassing the minor power models.

3. How maximum distance does it admits to the outdoor unit?
Admits 30 meters of total pipe and 15 meters of level difference, superior to lower-end models.

4. Does it include WiFi as standard?
Yes, this model incorporates Integrated wifi For control from the mobile, without the need to acquire an additional module.

5. Can I feed it with solar energy from my photovoltaic installation?
Yes, as a standard 230V single-phase electrical computer, you can feed on your energy solar, highly recommended given its greatest electricity consumption. Consult more technical content in the Blog Tienda Solar.
