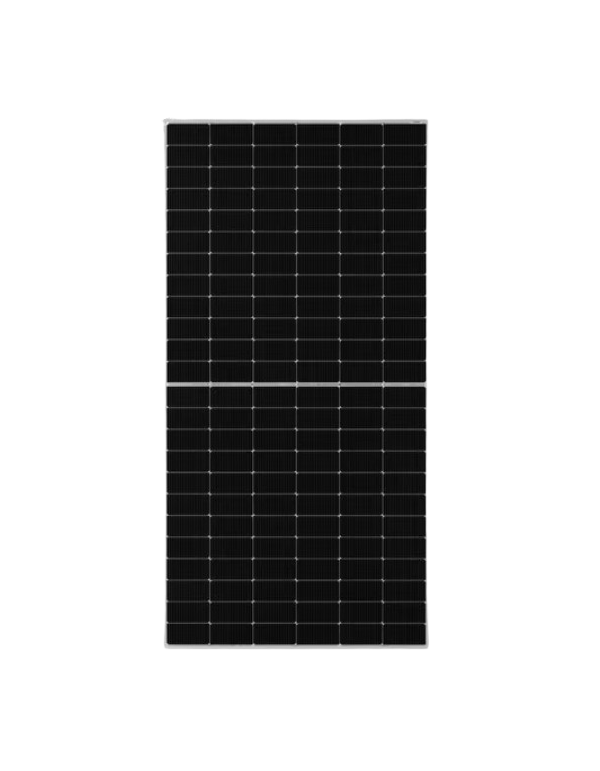

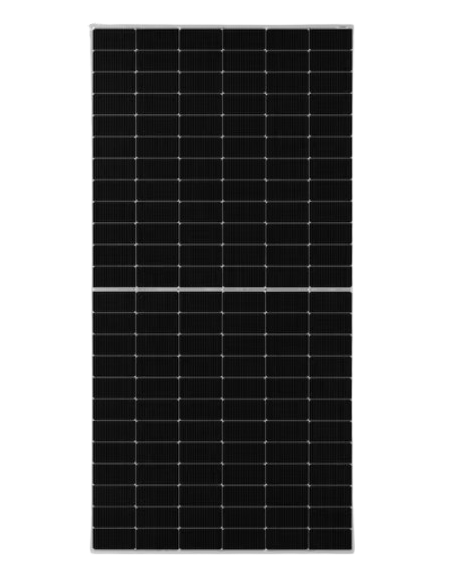

Solar panel JA Solar 605W JAM72D40-605 / MB Bifacial Double Glass DeepBlue 4.0 Pro

JA Solar DeepBlue 4.0 Pro 605W: Bifacial Technology N-Type, BYCUM + 16BB cells and MC4 connectors

The optimization of energy costs in companies and large surfaces requires the integration of components that guarantee maximum generation per square meter and resist wear of time. The solar panel JA Solar DeepBlue 4.0 Pro 605W responds with excellence this challenge through an engineering bifacial double glass (Double Glass) seated on silicon wafers no-type high purity. By simultaneously capturing direct light on the front and reflection of the floor on the back, this module transforms large commercial covers or solar gardens into mass production centers with the lowest standardized energy cost (LCOE).

Premium BYCUM + 16 busbars cells and superior thermal performance

The key of model production Jam72d40-605 / mb resides in their patented cells BYCIUM + N-TYPE, that completely eliminate the degradation induced by the common light (LID) in the traditional P type. Its design of average cell with 16 busbars technology (16bb) it shortens the transit distances of the electrons, which drastically reduces internal resistance and prevents hot spots caused by partial shades. This configuration allows you to reach an excellent efficiency of the 23.4% module under standard conditions.

By having a rate of 80% bifiality, the reverse adds up to 30% extra energy if it is installed on clear or reflective surfaces, raising the actual power above the combined 780W. In addition, its outstanding temperature coefficient of -0.30% / ° C mitigate the loss of power in hot climates. If you want to take advantage of this huge daytime flow to supply critical industrial consumption or inject to the network with total stability, you can coordinate these with the powerful inverters network from our catalog.

Encapsulated Double Glass, MC4 terminals and maximum 30-year reliability

The architecture of double tempered glass it replaces the traditional plastic rear sheet, granting the panel a total impermeability against moisture, corrosion by ammonia and degradation by induced potential (PID). In its interconnection section, it incorporates terminals MC4 high strength watertight, Ideal to guarantee a perfect and lasting coupling over the decades. Supports with total security severe mechanical loads of 5400 PA on the front (snow) and 2400 Pa on the back (wind). If you are coordinating installation engineering and looking for profiles and fixings that guarantee an equivalent resistance against temporary, you have suitable options in our section of structures for .

At the level of electrical integration, this panel of 605w opera with a MPP voltage of 45.02v and a current MPP of 13.44a, under an insulation designed for high-voltage chains up to 1500V DC, which drastically decreases the cost of structured wiring. If your project also contemplates an absolute control over surpluses for night use, we suggest complementing the design with storage systems available in our section of lithium batteries. . JA Solar support the module with 12 years of product guarantee and 30 years of linear power guarantee, certifying that the panel will maintain an imposing 87.4% of its initial performance when you meet the three decades.

Technical characteristics:

• Nominal maximum power (PMAX): 605 WP.

• Maximum Module Efficiency: 23.4%.

• Voltage at the point of maximum power (VMP): 45.02 V.

• Current at the point of maximum power (imp): 13.44.

• Voltage in open circuit (VOC): 53.22 V.

• Short circuit current (ISC): 14.28.

• Type of cells: Monocristalinas n-Type Bycum + premium.

• Internal configuration: Average cell with 16 busbars technology (16bb).

• Protective technology: Double Glass (Double Glass) symmetric.

• Certified bipiality rate: 80% +/- 5%.

• Coefficient of power temperature: -0.30% / ° C.

• Maximum system voltage: 1500 V DC (IEC).

• Maximum serial fuse allowed: 30 a.

• Built-in connectors: Terminals MC4 originals high sealing.

• Connection box: Grade Ip68 with integrated bypass diodes.

• Dimensions of the panel: 2333 mm long x 1134 mm wide x 30 mm thick.

• Structural net weight: 31.8 kg.

• Factory guarantees: 12 years of product and 30 years of linear production.

Frequently Asked Questions section (FAQ)

1. What benefits does BYCUM + N-TYPE cell technology provide in this 605W panel? The cells BYCIUM + N-TYPE they represent the elite in purity of monocrystalline silicon. Being doped with phosphorus instead of boron, they are totally exempt from the initial lighting degradation (LID). This ensures that the performance is extremely stable from the first day of use, capturing much more efficiently the energy in the early hours of dawn, at sunset or during densely cloudy days.
2. What does it mean that this module has a bifiality of 80%? Means that the back face of the panel is highly efficient and is capable of capturing the light reflected by the ground (albedo) and turning it into electricity with up to a 80% of the efficiency of the front face. If you fix the on reflective surfaces such as light colored industrial covers, white gravel or concrete, the rear face will add an extra considerable contribution, increasing the actual generation of the system noticeably.
3. Why is an advantage using MC4 connectors on this solar board? The connectors Mc4 they are quick connection terminals designed specifically to hold high streams and system voltages up to 1500V. They emphasize by offering extremely low contact resistance and a superior sealed seal, which avoids leakage of water and reduces zero the risk of electrical failures by thermal arcs, guaranteeing a safe and constant link with the rest of the installation.
4. How does the design of double glass influence the resistance of the panel to extreme climates? When encapsulating the cells between two solid sheets of tempered glass, the need to use a posterior plastic sheet is eradicated (backsheet). Double glass acts as an impenetrable barrier against environmental moisture, marine saline and corrosive gases such as ammonia in agricultural areas, also offering superior mechanical protection against hail impacts and strong deformations Winds or snow.
5. What energy efficiency guarantees JA Solar after 30 years? Thanks to the very low degradation of Silicon type N, JA Solar ensures that the loss of power in the first year will be maximum 1%. Of the year 2 to year 30, linear wear will be limited to a strict 0.4% per year. This means that, after three decades of sun exposure, your modules will continue to produce energy to a spectacular 87.4% of its original nominal capacity.
