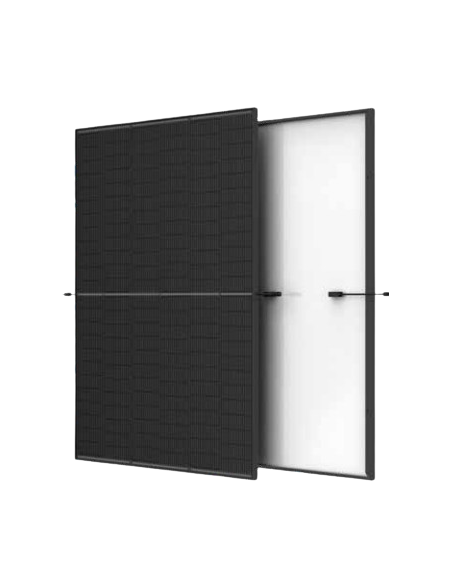

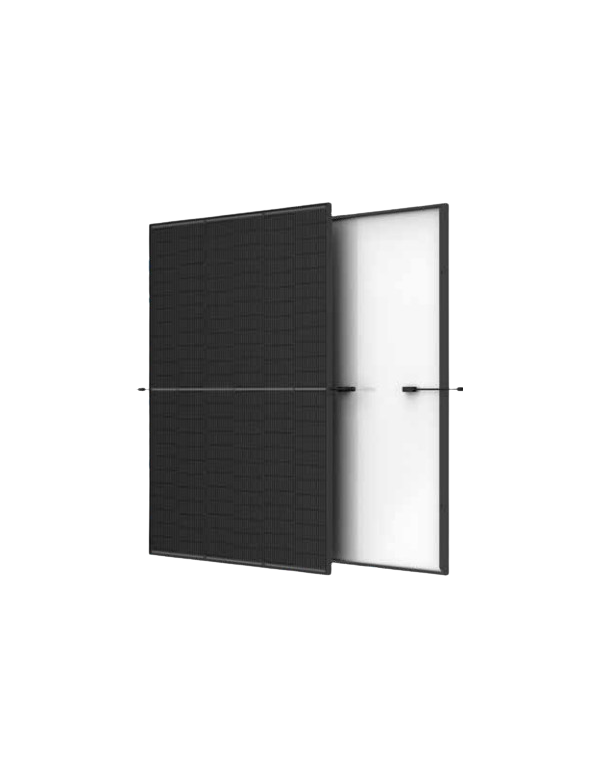

Solar panel Trina Vertex S + 455WP | Double Glass Module N-Type I-Topcon Full Black

Trina Solar Vertex S + 455W Full Black: Exclusive Elegance and Maximum Double Glass Reliability

When a photovoltaic installation is planned in single-family homes or modern corporate buildings, architectural aesthetics becomes the same weight as technical performance. The photovoltaic panel Trina Solar Vertex S + 455WP Full Black It has been awarded by its iconic completely black design, where both solar cells and frame and busbars are unified in a homogeneous dark tone that integrates in a fluid and elegant manner in any type of roof.

Premium Type N and Maximum Immunity in the face of degradation

The true power of this optimized size module resides in its internal chemistry. By using cell technology N-Type I-Topcon, the silicon experiences a superior purity that completely eliminates the effects of light-induced degradation (LID). This allows Trina Solar Certify a wear of Just 1% during the first year of use and ensure an annual power retention of Only 0.4% of the year 2 per year 30. To achieve an extremely integrated installation that combines with the visual sophistication of these dark modules, we recommend you review our Inverters Solar and three-phase solar High efficiency, ideal for stabilizing these generation curves so advanced.

In front of the traditional ones using rear plastic (backsheet), the Vertex S + model rides a Symmetrical structure of double tempered glass. This physical innovation contributes a Excellent resistance to fire and blocks the penetration of environmental moisture or saline environments, structurally eradicating the risk of microfixes or corrosion by ammonia. Despite its double glazed layer, the panel maintains a Weight content of only 21.1 kg and compact dimensions of 1762 x 1134 mm, making their handling in inclined roofs quickly and safely.

Compatibility of electric network and high mechanical strength

The alloy framework 30 mm black anodized aluminum It gives the structure of an outstanding rigidity, certified to withstand severe climatic conditions up to 5400 PA Snow Load on the front face and 4000 PA wind suction on the back. To ensure that this chassis is perfectly fixed and resist the passage of time.

Also, the connection box is a classification Ip68 with Integrated bypass diodes To protect the system against localized overheating. If your residential roof has intermittent partial shades caused by trees or fireplaces, you can associate these plates with our Optimizers, managing to independent production at the module level so that no panel penalizes the general circuit or to take the next step with lithium batteries, that will allow you to store the energy and take advantage of it at the time you want.

Technical specifications (Model TSM-455NEG9R.25):

Electrical characteristics in STC conditions (irradiation 1000 W / m2; t Cell of 25 ° C):

• POWER PICO MAXIMUM (WP): 455 W

• Output power tolerance: 0 / +5 W

• Maximum power voltage (VMPP): 42.3 V

• Maximum power current (ImpP): 10.77 a

• Voltage in open circuit (VOC): 50.6 V

• Cortosimetric current / short circuit (ISC): 11.39

• Real Efficiency of the Module: 22,8%

Mechanical characteristics and components:

• Type of cells: N-Type I-Topcon Monocrystallines

• Dimensions of the module: 1762 x 1134 x 30 mm

• Structural net weight: 21.1 kg

• FRONT GLASS: Glass 1.6 mm, with anti-reflective treatment (AR) and thermally hardened

• Subsequent glass: Glass 1.6 mm, hardened thermally

• Panel frame: Alloy 30 mm anodized aluminum, Color finish black

• Connection box (J-BOX): Degree Ip68 with 3 bypass diodes

• Output wiring: Photovoltaic technology cable 4.0 mm2 section

Frequently Asked Questions (FAQ)

1. What advantages does Full Black design visually contributes in this panel? The finish Full Black (completely black) It means that both the silicon wafers, the bottom of the panel, the front connections and the metallic profile itself of the frame have a unified dark coloration. This eliminates the contrast of white lines or traditional silver frames, offering a clean, sophisticated and homogeneous aesthetics of high architectural value for select residential covers.

2. How does the double glass structure benefit the 455W panel life? When replacing the traditional plastic rear sheet by a thermosted glass of 1.6 mmThe module is sealed hermetically on both sides. This prevents thermal dilatments or mechanical wind and hail loads twist the cells and cause microcracks in the silicon. In addition, it provides a Absolute barrier against moisture and a resistance to upper fire.

3. What performance can be expected from N-Type I-Topcon technology over the years? The cells of N They lack typical boron-oxygen defects of Classics, which cancels initial light degradation (LID). Trina Solar ensures that the panel will start the first year with a less than 1% loss and will maintain a low linear wear of Only 0.4% per year, which ensures that by turning 30 years of operation, it will continue to yield at least 87.4% of its original nominal power.

4. Is this panel compatible with the inverters of Standard String of the Market? Yes, it is fully compatible. Your electrical engineering is optimized for maximum power ranges (Impp from 10.77 a) adapt without problems to the admissible ranges of the vast majority of microinverters, inverters Hybrids and residential optimizers of the global commercial market, facilitating a rapid dimensionment of roofing strings.
