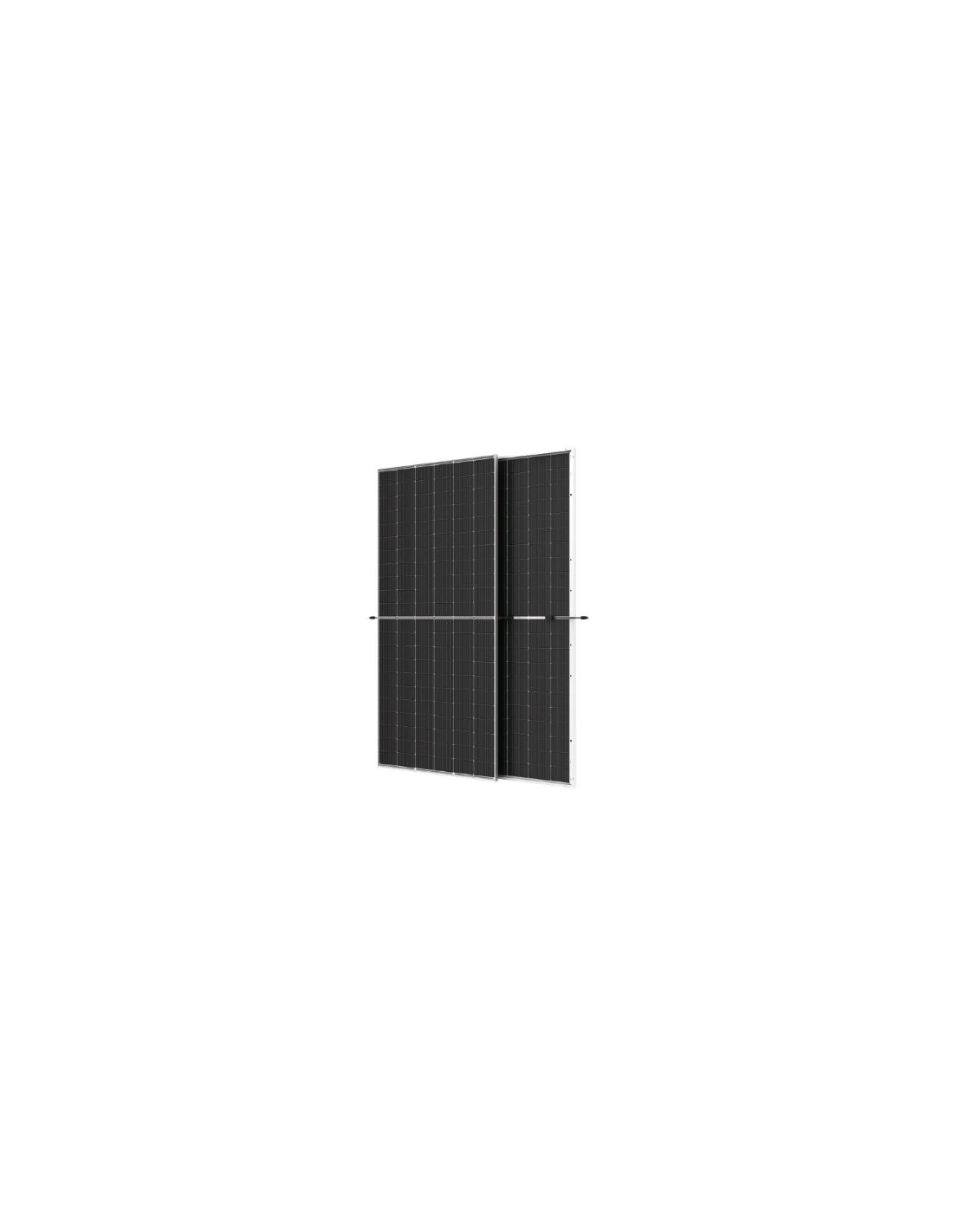

Solar Panel Trina 610W Bifacial

Imagine a solar panel that not only harnesses every ray of sunlight, but also transforms the reflected light into useful energy. The 610W Trina Solar TSM-NEG19RC.20 makes this possible thanks to its double-glazed bifacial design and n-type i-TOPCon technology, one of the most advanced on the market. This module is part of the Vertex series, renowned for its innovation, efficiency and durability.

With an efficiency of 23.0% and an output power of up to 610W, this panel is designed to offer maximum performance even in low irradiation conditions. Its SMBB (Super Multi-Busbar) technology improves light collection and reduces electrical losses, while its double glass structure provides greater mechanical resistance and protection against aggressive environments.

Outstanding technical characteristics:

- Maximum power: 610W

- Module efficiency: 23.0%.

- Technology: n-type i-TOPCon bifacial

- Open circuit voltage: 49.0V

- Short circuit current: 15.86A

- Dimensions: 2382 × 1134 × 30 mm

- Weight: 33.7 kg

- Cells: 132 n-type monocrystalline cells

- Front and rear glass: 2.0 mm tempered

- Certifications: IEC, UL, ISO 9001/14001/45001, WEEE

- Warranty: 12 years product / 30 years linear efficiency

Competitive advantages:

- Up to 30% additional gain on the back side.

- Low degradation: 1% first year, 0.4% p.a. thereafter

- Excellent performance in low light and high temperature conditions

- High mechanical strength: up to 5400 Pa (front) and 2400 Pa (back)

- Compatible with standard systems and transport optimised

Frequently Asked Questions (FAQ):

What does it mean that the panel is bifacial?

It can generate power from both sides, taking advantage of light reflected from the ground or other surfaces.

What is i-TOPCon technology?

It is an n-type cell technology that improves efficiency, reduces degradation and offers higher long-term performance.

What is the lifetime of the panel?

It is guaranteed for 30 years of performance, with an annual degradation of only 0.4% after the first year.

Is it suitable for extreme climates?

Yes, it is designed to withstand environments with salinity, ammonia, sand, high humidity and extreme temperatures.

What maintenance is required?

Minimal maintenance: periodic cleaning of the glass and checking of electrical connections.
