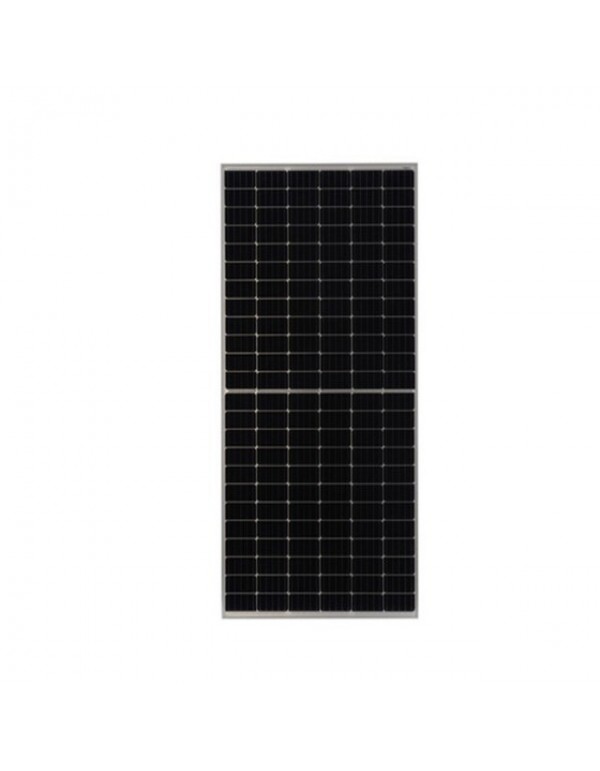

Double Bifacial Solar Panel Glass JA Solar 565W Jam72D40-565 / GB | Silver frame

JA Solar Jam72D40-565 / GB: 565W N-Type technology, 80% Bifacial performance and double-grainy glass structure

Promote the economic profitability of a commercial solar orchard or an industrial self-consumption system requires the integration of Tier-1 commercial grade components that optimize the available space and reduce the thermal losses. The monocrystalline solar panel JA Solar Jam72D40-565 / GB of 565W with a silver frame, it stands out in the photovoltaic sector by its advanced double glass bifacial configuration, a system capable of converting direct irradiation and soil albedo into useful clean electricity.

Bidirectional energy capture, heading cells and resistance to LID degradation

The differential factor of this module is in its engineering double tempered glass layer of 2.0 mm. When you dispense with the traditional plastic rear sheet (backsheet), the back face is fully exposed to the diffuse and incident light reflected by the surface of the soil, reaching a factor of 80% bifiality ± 10%. This allows the panel to generate a substantial energy surplus depending on the type of land. Their 144 MBB heading cells they divide the internal electric current in half, reducing heating by ohmic resistance and allowing the IP68 connection box to work at a lower temperature. If you want to complement this deployment of high photovoltaic power with commercial energy centralization systems, we invite you to review our select catalog of inverters hybrid three-phase.

Thanks to the use of N-Type silicon semiconductors, this block brakes the deterioration induced by light (LID) that suffer from the common at the beginning of your operational life. Your annual degradation is situated in a tiny 0.45% for 30 years, ensuring a predictable and safe investment return. All the power collected by this generation field can be properly channeled for the night recharge of large capacity accumulating solutions in our menu of batteries high voltage.

Flame retardant protection type 29, mechanical tolerance of 5400 Pa and Silver Marco

The constructive design of this module 31.8 kg it ensures a total immunity in the most hostile atmospheres of the planet, having been certified against corrosion by Salina Fog, Agricultural Amboaco, desert sand and extreme humidity. It has an approval of fireproof behavior UL type 29 and supports a strict frontal mechanical load of 5400 Pa (wind or cumulation of dense snow), combined with a later resistance of 2400 pa. To guarantee a perfect disposition of these twins over the years in flat covers, tilted roofs or solar solar orchards, it is essential to fix the modules with our structures for extruded aluminum with stainless steel screws.

Technical specifications (model JA Solar Jam72d40-565 / gb):

Electric parameters in STC conditions (1000W / m², 25 ° C, AM1.5G):

• Nominal maximum power (PMAX): 565 W (With positive tolerance of 0 to + 5W).

• Open circuit voltage (VOC): 50.85 V

• Maximum power voltage (VMP): 42.55 V

• Short circuit current (ISC): 14.16

• Maximum power current (imp): 13.28 a

• Efficiency of the photovoltaic module: 21,9%

Thermal coefficients and operating ranges:

• PMAX temperature coefficient (γ_pmp): -0,350% / ° C (Excellent behavior before heat waves).

• VOC temperature coefficient (β_VOC): -0,275% / ° C

• Maximum voltage of the supported system: 1500 V DC (Suitable for long tension series).

• Top-supported series fuse: 30 a

• Nominal bipiality factor: 80% ± 10%

Mechanical and constructive specifications:

• Dimensions of the panel: 2278 x 1134 x 30 mm (Stylized thickness with perimeter silver frame).

• Net weight per unit: 31.8 kg

• Composition of the body: Double symmetric glass of 2.0 mm on front face and 2.0 mm on rear face.

• Connection box: Stagnation Ip68 provided with 3 bypass diodes.

• Transverse section of the output cable: 4 mm² (IEC / 12 AWG UL certification).

• Terminal connector: QC 4.10-35

Frequently Asked Questions (FAQ)

1. What real benefit provides that the panel JA Solar of 565W be "Bifacial double glass"? A bifacial panel has the physical property of producing energy on both sides. The front face captures direct solar radiation, while the back face takes advantage of the light reflection of the soil (albedo effect). By incorporating a double glass design (2 mm front and 2 mm behind) instead of a plastic canvas, the panel gains mechanical rigidity, is much more fire resistant (UL type 29 certificate) and reduces historical minimum silicon degradation.

2. How does MBB Cell Cell Technology influence Shadow Performance? By dividing conventional solar cells by half, the electric current circulating by them is also reduced by half. This directly mitigates the losses from internal resistance and causes the panel to work at a lower operating temperature, preventing hot spots (Hot-Spots). If a partial shadow affects the lower half of the panel, the upper half will continue to generate current independently when the circuits are divided.

3. What guarantees of durability does this model have Jam72D40-565 / GB? JA Solar offers a 12-year product guarantee that covers manufacturing defects and materials. Additionally, it has a linear performance guarantee for 30 years, ensuring that the module will not degrade more than 0.45% each year, a figure much higher than that of conventional market thanks to N-Type cell technology that cancels wear by LID effect.

4. Can this module be installed in coastal zones or aggressive industrial environments? Yes, it is completely apt and safe. This model has exceeded strict international laboratory tests that certify its total immunity and resistance against highly aggressive corrosive atmospheres, such as coastal environments with high salinity, livestock or agricultural holdings with ammonia presence, desert areas exposed to sand friction and tropical climates with high temperatures and constant humidity.
