Model
|

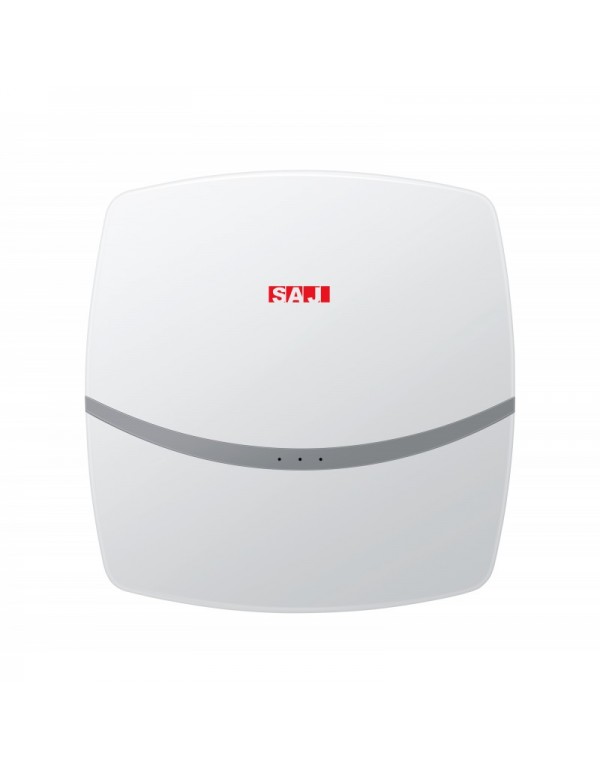

R5 Series 8000W 2MPTPT
|
|
Max power. Ad
|
9600 W
|
|
Voltage Max. Entrance
|
600 V
|
|
Range Voltage MPP
|
90 V TO 550 V
|
|
Voltage Nominal Entrance
|
360 V
|
|
Min. Voltage Entrance / Voltage Initial Entrance
|
80 V / 100 V
|
|
Max current. Entry: Entrance to / input B
|
12.5 A / 12.5 A
|
|
Max. Current Entry by String: Input A / Input B
|
12.5 A / 12.5 A
|
|
Number of independent entries MPP Input / Strings by entry MPP
|
1/1
|
|
OUTPUT (AC)
|
|
|
Power (at 230 V, 50Hz)
|
8000 W
|
|
Max. Apparent power AC
|
8000 VA
|
|
Nominal Voltage AC / Range
|
220 V, 230 V, 240 V / 180 V TO 280 V
|
|
AC Frequency / Range
|
50 Hz, 60 Hz / 45-55 Hz, 55-65 Hz
|
|
Nominal frequency / nominal voltage
|
50 Hz / 230 V
|
|
Max current. Exit
|
34.8 a
|
|
Power factor at nominal power
|
1
|
|
Power factor setting
|
+/- 0.8
|
|
Phases Food / Phases Connection
|
1/1
|
|
Efficiency Max. / European efficiency
|
98.3% / 97.8%
|
|
Protection elements
|
|
|
Internal disconnection point
|
●
|
|
Earthing monitoring / Network monitoring
|
● / ●
|
|
Reverse polarization protection in DC / Short circuit capacity AC / Galvanic isolation
|
● / ● / -
|
|
Residual-polle-sensitive monitoring unit
|
●
|
|
Protection Type (IEC 62103) / SOVERVALEE CATEGORY (based on IEC 60664-1)
|
I / III
|
|
Datosgenerales
|
|
|
Dimensions (width / high / long)
|
389 mm / 367 mm / 143 mm
|
|
Weight
|
12.2 kg (26.8 lb)
|
|
Operating temperature range
|
-40 ° C to + 60 ° C
|
|
Emission noise, typically
|
|
|
Self-consumption (night)
|
5.0 w
|
|
Topology
|
Transformer
|
|
Type of cooling
|
Natural convection
|
|
Degree of protection (based on IEC 60529)
|
Ip65
|
|
Climate category (based on IEC 60721-3-4)
|
4k4h
|
|
Max value. allowed for relative humidity (without condensing)
|
0-100%
|
|
Teams
|
|
|
DC connection / AC connection
|
MC4 / Plug-in Connector
|
|
View on Smartphone, Tablet, Laptop
|
●
|
|
Interface: WLAN, SpeedWire / WebConnect
|
● / ●
|
|
Warranty: 5/10/15 years
|
● / ○ / ○
|
|
Certificates and approvals (more available upon request)
|
AS 4777.2, C10 / 11, CE, CEI 0-21, EN 50438, G59 / 3-4, G83 / 2-1, DIN EN 62109 / IEC 62109,
NEN-EN50438, IE-EN50438, NT_LEY20.571, ÖVE / ÖNORM E 8001-4-712 & Tor D4, PPDS, PPC, RD1699,
TR3.2.1, UTE C15-712, VDe-AR-N 4105, VDe0126-1-1, VFR 2014
|
|
Certificates and Approvals
|
Dewa, IEC 61727, IEC 62116, MEA, NBR16149, PEA, SI4777, TR3.2.2
|
|
Availability of SMA Smart Connected in countries
|
Au, at, be, ch de, es, it, lu, nl, uk
|
|
● Standard ○ Optional - Not available under Nominal Conditions: February 2017
1) 4825 W based on VDE-AR-N 4105
2) 4600 W / 4600 goes based on VDE-AR-N 4105
3) Based on 4777: 21.7 A
|
|
|
Reference
|
Sb3.0-1av-41
|
