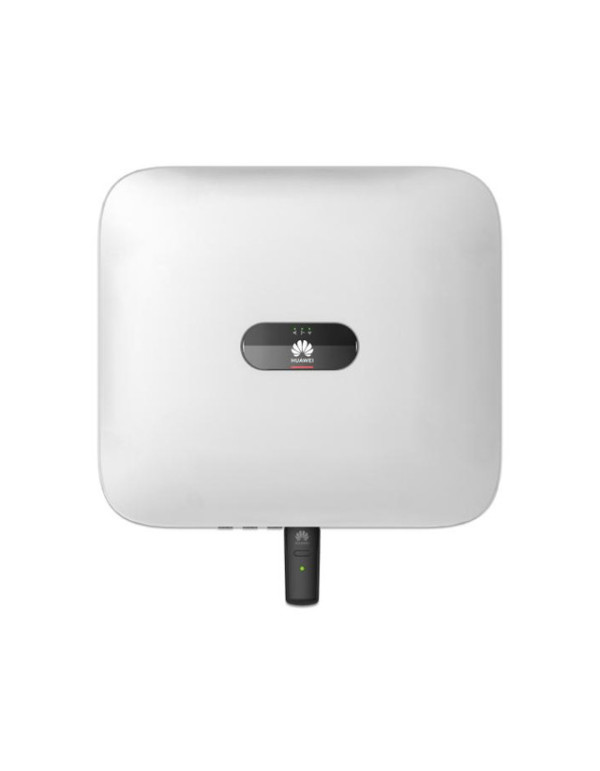

Inverter Solar connection to three-phase network Huawei Sun2000-8KTL-M1 8000W

Huawei Sun2000-8KTL-M1: Three-phase 98.5% performance, 2 MPPT flexibility and intelligent active security

The inverter three-phase Huawei Sun2000-8ktl-m1 it has been consolidated as one of the technological pillars of the photovoltaic sector for residential environments and small businesses that demand a symmetric and efficient three-phase electric management. When integrating state-of-the-art power electronics, this device minimizes the losses due to current conversion and maximizes the return of the investment in any type of cover.

Optimization by double MPPT, high voltage and higher efficiency

The integration of two followers of the maximum power point (2 MPPT) Independent It allows to design collection fields with different orientations or inclinations without losses by partial shading affect the overall performance of the installation. Each follower processes up to 18a of current intensity with a short circuit tolerance of 25a, which ensures total compatibility with modern high-power photovoltaic modules.

With a peak efficiency of the 98,5%, the team takes advantage of practically all the energy captured. Its wide range of tension and its low boot voltage (250V) achieve that the inverter start to inject clean electricity to the lines of housing from the first hours of dawn until dusk. If you are looking to optimize your physical anchor solar on tile or metal surfaces, it is very convenient to fix the generator field using structures for structural aluminum with high strength profiles.

Advanced security, compact structure and long-term durability

The line of inverters residential Huawei it stands out for its lightweight and compact structure compared to other three-phase equipment in its own category, facilitating wall mounting tasks. Its passive natural convection cooling system eliminates external mechanical fans, which reduces operational noise to minimum levels and prevents forced dust or moisture entry into internal electronics.

The block incorporates active standard protections versus short circuits, overloads and thermal variations, guaranteeing an operation free of mechanical or electrical problems. To steadily feed this inverter with the highest collection rate per square meter, it is highly recommended to configure the roof of the property using solar monocrystallines of split cells. Similarly, if the residential project contemplates a transition towards total night energy autonomy or you are looking to dodge the tariff peaks of the marketers, this hybrid Inverter it is prepared to directly coupling high voltage storage systems without the need to add additional load interfaces, a modular ecosystem that you can explore in detail by examining the advantages of our lithium batteriesOf last generation.

Technical characteristics

Input parameters (DC current):

• Maximum entry power: 8,000 W.

• Maximum input voltage: 1,000 V.

• Nominal input voltage: 620 V.

• Injection boot voltage: 250 V.

• Number of independent MPPT followers: 2 MPPT.

• Maximum entry current by MPPT: 18 A.

• Short circuit current by MPPT: 25 A.

Output parameters (AC current):

• Nominal output power: 8,000 W.

• Maximum output power in Alterna: 8,800 W.

• Nominal exit tension: 220 V / 380 V, 230 V / 400 V (three-phase + neutral configuration).

• Supported network frequency: 50 Hz / 60 Hz.

• Nominal output current: 13.4 A.

GENERAL AND PROTECTION DATA:

• Maximum efficiency Inverter: 98,5%.

• Electrical protections: Integrated series (protection against short circuits, overloads, overvoltages and high temperatures).

• Operating range of ambient temperature: -25 ° C to + 60 ° C.

• Total weight of the shipping package: 42 kg.

• Network certifications: CE certificate and compliance with injection regulations in force.

• Standard factory warranty: 5 years of product warranty.

Frequently Asked Questions section (FAQ)

1. What advantages does the inverter Huawei Sun2000-8KTL-M1 Have 2 independent MPPT? Having 2 MPPT (Followers of the Maximum Power Point) allows you to divide your photovoltaic field into two different series or orientations (for example, a string of oriented to the east and one to the west). This prevents shading or smaller production from one of the areas negatively affected the other chain, maximizing the global photovoltaic performance of the installation throughout the day.
2. Is this inverter Huawei compatible with the use of batteries to store solar surpluses? Yes, the Sun2000-8KTL-M1 model has an integrated interface for high voltage lithium batteries (such as the series Huawei Luna2000). Be a hybrid Inverter of origin, it does not require adding expensive external chargers or modifying alternating current wiring, allowing directly storing the excess energy of the during the day to consume it at night.
3. What happens if the outer room temperature rises too much during the summer? This inverter it is designed to operate in a wide thermal range ranging from -25 ° C to +60 ° C. It has an intelligent internal protection system against high temperatures that manages the power safely; If the equipment detects extreme heat on its components, self-regulate millimetric production (derating) To cool down without getting to stop the electric injection or put your circuits at risk.
4. What does it mean that it has an efficiency of 98.5% and why it is important for my installation? The efficiency of 98.5% indicates that the inverter it only dissipates a residual 1.5% of the energy in the form of heat during the physical process of transformation of the direct current (from the plates) to alternating current (suitable for the home). A high efficiency guarantees that you are taking advantage of practically every watt produced on the roof, reducing the amortization times of the components.
5. Can you install this inverter three-phase in a house that has a traditional monophasic rush? No, this equipment is specifically designed to interact with three-phase electric networks (which distribute the energy in three phases differentiated to 380V / 400V). If your home or local has a single-phase installation at 230V, you must decant by the Sun2000-L1 single-phase range Huawei to ensure correct synchronization with the public network. If you are assessing business alternatives of large-scale single-phase or industrial network injection, we invite you to consult the offer available in our catalog of inverters networking.
