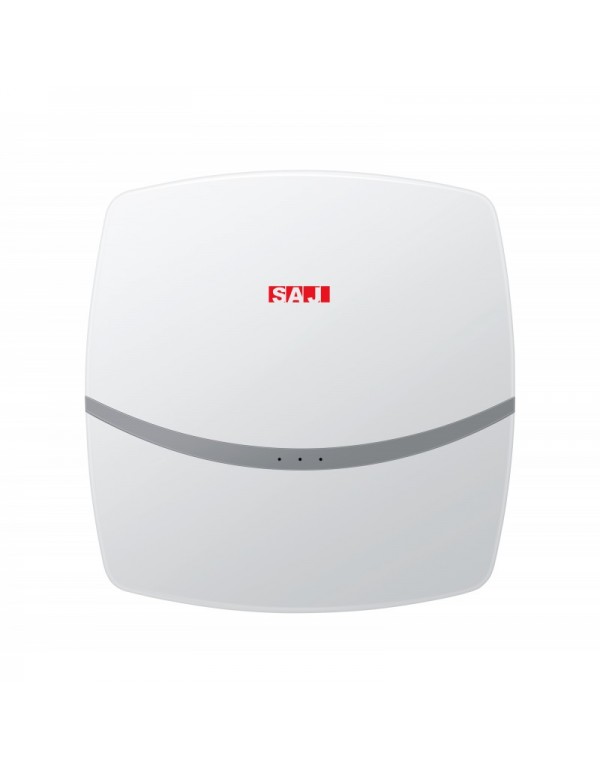

Inverter Solar SAJ R5 series 7000W 2MPPT single phase

R5-7K-S2
€822.01
Tax included

Consult availability


Inverter Single-phase network connection solar SAJ of 7000W AC with 2 MPPT with 97.8% efficiency and maximum input current of 12.5 A per ink, with convection cooling. Suitable for 360V medium-large-sized 360 v residential network connection installations. The R5 Series Line It stands out for its variety of configurations, wide range of MPPT voltage and its lightweight and compact structure. With protection against short circuits, overloads and high temperatures, they will provide a problem-free operation in its solar installation for many years. Product for solar installations with excellent price and quality ratio. The R5 Series does not include transformer. Degree of protection IP65. 5 year warranty of product and CE certificate.



Technical characteristics of the inverter

Model

R5 Series 7000W 2MPTPT

Max power. Ad

8470 W

Voltage Max. Entrance

600 V

Range Voltage MPP

90 V TO 550 V

Voltage Nominal Entrance

360 V

Min. Voltage Entrance / Voltage Initial Entrance

80 V / 100 V

Max current. Entry: Entrance to / input B

12.5 A / 12.5 A

Max. Current Entry by String: Input A / Input B

12.5 A / 12.5 A

Number of independent entries MPP Input / Strings by entry MPP

1/1

OUTPUT (AC)



Power (at 230 V, 50Hz)

7000 W

Max. Apparent power AC

7700 VA

Nominal Voltage AC / Range

220 V, 230 V, 240 V / 180 V TO 280 V

AC Frequency / Range

50 Hz, 60 Hz / 45-55 Hz, 55-65 Hz

Nominal frequency / nominal voltage

50 Hz / 230 V

Max current. Exit

33.5

Power factor at nominal power

1

Power factor setting

+/- 0.8

Phases Food / Phases Connection

1/1

Efficiency Max. / European efficiency

98.2% / 97.7%

Protection elements



Internal disconnection point

●

Earthing monitoring / Network monitoring

● / ●

Reverse polarization protection in DC / Short circuit capacity AC / Galvanic isolation

● / ● / -

Residual-polle-sensitive monitoring unit

●

Protection Type (IEC 62103) / SOVERVALEE CATEGORY (based on IEC 60664-1)

I / III

Datosgenerales



Dimensions (width / high / long)

389 mm / 367 mm / 143 mm

Weight

12.2 kg (26.8 lb)

Operating temperature range

-40 ° C to + 60 ° C

Emission noise, typically

Self-consumption (night)

5.0 w

Topology

Transformer

Type of cooling

Natural convection

Degree of protection (based on IEC 60529)

Ip65

Climate category (based on IEC 60721-3-4)

4k4h

Max value. allowed for relative humidity (without condensing)

0-100%

Teams



DC connection / AC connection

MC4 / Plug-in Connector

View on Smartphone, Tablet, Laptop

●

Interface: WLAN, SpeedWire / WebConnect

● / ●

Warranty: 5/10/15 years

● / ○ / ○

Certificates and approvals (more available upon request)

AS 4777.2, C10 / 11, CE, CEI 0-21, EN 50438, G59 / 3-4, G83 / 2-1, DIN EN 62109 / IEC 62109,

NEN-EN50438, IE-EN50438, NT_LEY20.571, ÖVE / ÖNORM E 8001-4-712 & Tor D4, PPDS, PPC, RD1699,

TR3.2.1, UTE C15-712, VDe-AR-N 4105, VDe0126-1-1, VFR 2014

Certificates and Approvals

Dewa, IEC 61727, IEC 62116, MEA, NBR16149, PEA, SI4777, TR3.2.2

Availability of SMA Smart Connected in countries

Au, at, be, ch de, es, it, lu, nl, uk

● Standard ○ Optional - Not available under Nominal Conditions: February 2017

1) 4825 W based on VDE-AR-N 4105

2) 4600 W / 4600 goes based on VDE-AR-N 4105

3) Based on 4777: 21.7 A



Reference

Sb3.0-1av-41
