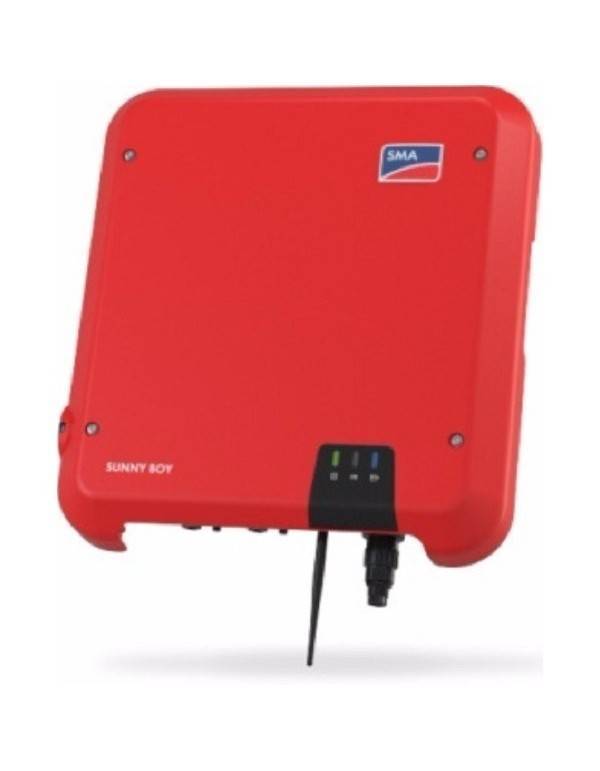

Solar inverter SMA Sunny Boy 5.0
Solar inverter SMA Sunny Boy 5.0

Inverter solar SMA Sunny Boy 5.0

SB 5.0
€1,197.90
Tax included

Inverter photovoltaic Net-phase network connection SMA of 5000W AC with 2 MPPT with efficiency of 96.5% and maximum current of 15A input per inlet, with convection cooling. Ideal installations networking residential of 230 V input nominal. The SunnyBoy line stands out for its variety of configurations, wide MPPT voltage range and its lightweight and compact structure.

Designed for a long life with short-circuit protection, overloads and high temperatures, they will provide A problem-free operation In its solar installation for many years. Product for solar installations with Excellent price and quality ratio. The Sunnyboy does not include transformer, in addition to offering an IP65 degree of protection.



2 year warranty of product and CE certificate.

Technical characteristics

Model

Sunnyboy5.0

Max power. Ad

7500 W

Voltage Max. Entrance

600 V

Range Voltage MPP

175 V TO 500 V

Voltage Nominal Entrance

365 V

Min. Voltage Entrance / Voltage Initial Entrance

100 V / 125 V

Max current. Entry: Entrance to / input B

15 a / 15 a

Max. Current Entry by String: Input A / Input B

15 a / 15 a

Number of independent entries MPP Input / Strings by entry MPP

2 / A: 2; B: 2

OUTPUT (AC)



Potencai (at 230 V, 50Hz)

5000 W

Max. AC

5000 VA

Voltajenominal AC / RANGO

220 V, 230 V, 240 V / 180 V TO 280 V

Frequency / Range

50 Hz, 60 Hz / -5 Hz to +5 Hz

Nominal frequency / nominal voltage

50 Hz / 230 V

Max current. Exit

22 a

Power factor at nominal power

1

Power factor setting

+/- 0.8

FASHINGSCARING / FASESCONNECTION

1/1

Eficienciamax. Efficiency

97.0% / 96.5%

Protection elements



Disconnect point

●

Earthing monitoring / Network monitoring

● / ●

Reverse polarization protection in DC / Short circuit capacity AC / Galvanic isolation

● / ● / -

Residual-polle-sensitive monitoring unit

●

Protection Type (IEC 62103) / SOVERVALEE CATEGORY (based on IEC 60664-1)

I / III

Datosgenerales



Dimensions (width / high / long)

435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches)

Weight

17.5 kg (38.5 lb)

Operating temperature range

-25 ° C to + 60 ° C (-13 ° F to + 140 ° F)

Emission, typically

25 dB (A)

Self-consumption (night)

5.0 w

Topology

Transformer

Type of cooling

Convection

Degree of protection (based on IEC 60529)

Ip65

Climate category (based on IEC 60721-3-4)

4k4h

Max value. allowed for relative humidity (without condensing)

100%

Teams



Connection / Connection

Sunclix / AC connector

View on Smartphone, Tablet, Laptop

●

Interface: WLAN, SpeedWire / WebConnect

● / ●

Warranty: 5/10/15 years

● / ○ / ○

Certificates and approvals (more available upon request)

AS 4777.2, C10 / 11, CE, CEI 0-21, EN 50438, G59 / 3-4, G83 / 2-1, DIN EN 62109 / IEC 62109,

NEN-EN50438, IE-EN50438, NT_LEY20.571, ÖVE / ÖNORM E 8001-4-712 & Tor D4, PPDS, PPC, RD1699,

TR3.2.1, UTE C15-712, VDe-AR-N 4105, VDe0126-1-1, VFR 2014

Certificates and Approvals

IEC 61727, NRS 097-2-1

Availability of SMA Smart Connected in countries

Au, at, be, ch de, es, it, lu, nl, uk

● Standard ○ Optional - Not available under Nominal Conditions: February 2017

1) 4825 W based on VDE-AR-N 4105

2) 4600 W / 4600 goes based on VDE-AR-N 4105

3) Based on 4777: 21.7 A



Reference

Sb5.0-1av-40
Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
15 - 15.99
