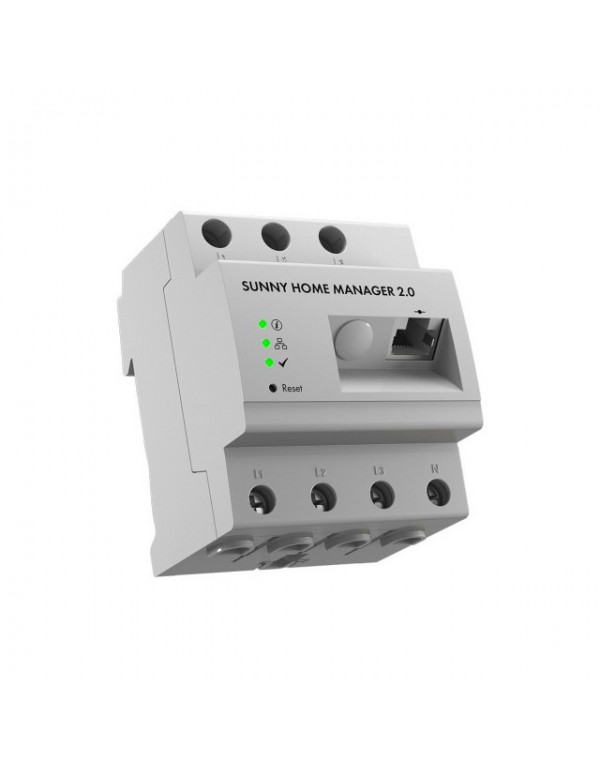

Vatimeter Sunny Home Manager 2.0
HM-20
€704.32
Tax included
Only available with purchase of the Inverter
The Sunny Home Manager 2.0 allows the most efficient use of solar energy at home. It stands out for its innovation, simplicity, transparency and flexibility.
Reduces electricity costs and optimizes photovoltaic self-consumption. For this, it measures the power of photovoltaic generation, purchased electricity and injection to the network, and offers an overview of all relevant energy flows at home. Thanks to local photovoltaic generation forecasts and the measured domestic consumption profile, the self-learning device offers the user acting recommendations related to energy. The operation of the controlled devices is coordinated to optimize the use of self-generated solar energy. 2 year warranty.
The Sunny Home Manager 2.0 Vatimeter is characterized by the following
- - Energy manager with integrated measuring device
- - Analysis of consumption of individual loads
- - Optimized battery charge on storage systems SMA
- - Quick installation "Plug and Play
- - Overview of all relevant devices, photovoltaic generation and battery systems
- - more efficient use of energy and reduction of electricity costs
- - Energy balance and load data shown in interactive diagrams
- - integrated photovoltaic meteorological and forecast data
- - Monitoring of photovoltaic installation through Sunny Portal and Sunny Places
- - Connection of devices through standard protocols and compatible radio-controlled plugs
Technical data:
|
Model
|
Sunny Home Manager 2.0
|
|
Energy manager
|
|
|
Connection to the local router
|
via Ethernet cable (10/100 Mbit / S, RJ45 plug)
|
|
Connection inverters solar SMA and battery systems
|
Ethernet or WLAN through a local router
|
|
Connecting equipment for power management To obtain application examples for connection and appliance controls, see Technical information on Sunny Home Manager 2.0 product page www.sma-solar.com
|
a. Direct data connection (EEBUS, SEMP) (for example, smart heat pumps, electrical car charging stations, heating elements, appliances, etc.) b. Radiocontrol Shot WLAN Edimax SP-2101W (available through the online store) (on / off controls for domestic devices up to 12 a of power)
|
|
Integrated measuring device
|
|
|
Measurement accuracy, measuring cycle
|
1%, 1000 ms
|
|
Standard application
|
Measurement of the purchased electricity and feeding the network at the connection point to the network
|
|
Alternative application
|
a. Measurement of photovoltaic generation power b. Inactive measurement (L1, N, Network)
|
|
Maximum number of devices in the system (excluding the energy meter SMA)
|
|
|
Total number of devices in the system
|
up to 24
|
|
of which devices such as appliances in the active management of energy
|
up to 12
|
|
Tickets (voltage and current)
|
|
|
Nominal voltage
|
230 V / 400 V
|
|
Frequency
|
50 Hz / ± 5%
|
|
Nominal current / limiting current by line conductor
|
5 A / 63 A (> 63 A can be covered through external current transformers)
|
|
Connecting cross section
|
10 mm² at 16 mm² (for applications of 63 a)
|
|
Couple for screw terminals
|
2.0 nm
|
|
Environmental conditions in operation
|
|
|
Room temperature
|
-25 ° C A + 40 ° C
|
|
Storage temperature range
|
-25 ° C A + 70 ° C
|
|
Protection class (according to IEC 62103)
|
II
|
|
Degree of protection (according to IEC 60529)
|
Ip2x
|
|
Maximum permissible value for relative humidity (without condensation)
|
5% to 90%
|
|
Establishment altitude range
|
0 m to 2000 m
|
|
General data
|
|
|
Dimensions (w / h / d)
|
70 mm / 88 mm / 65 mm
|
|
Upper hat rail wide units
|
4
|
|
Weight
|
0.3 kg
|
|
Location of assembly
|
Switching cabinet or meter
|
|
Type of assembly
|
Mounting on top hat rail
|
|
Danger
|
3 x LED
|
|
Own consumption
|
|
|
Functions
|
|
|
Operation and visualization
|
through Sunny Portal, Sunny Places, Sunny Portal Pro
|
|
Update function
|
Automatic for Sunny Home Manager and devices SMA connected
|
|
Warranty
|
2 years
|
|
Certificates and Approvals
|
www.SMA-Solar.com
|
|
Accessories
|
|
|
Power meter SMA as a complement to the integrated measuring device
|
Precise three-phase measurement, connection through Ethernet in the local network.
|
|
Designation of type
|
HM-20
|
