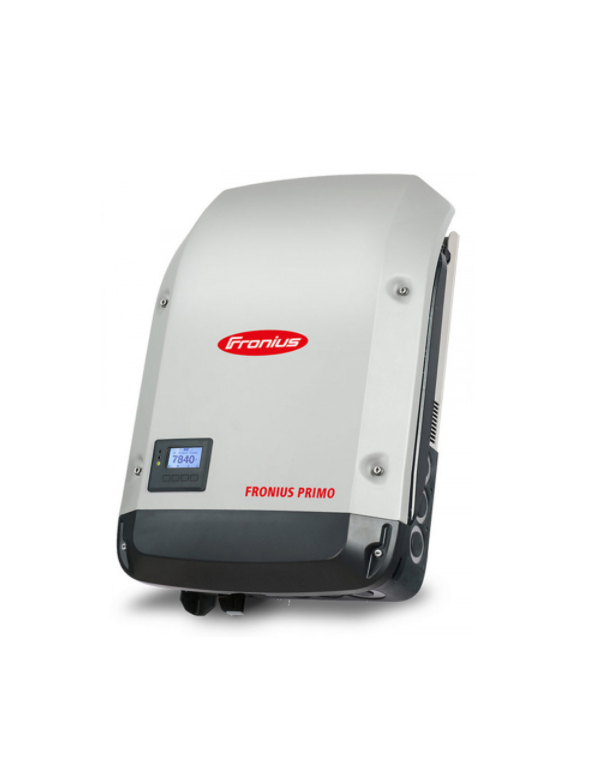

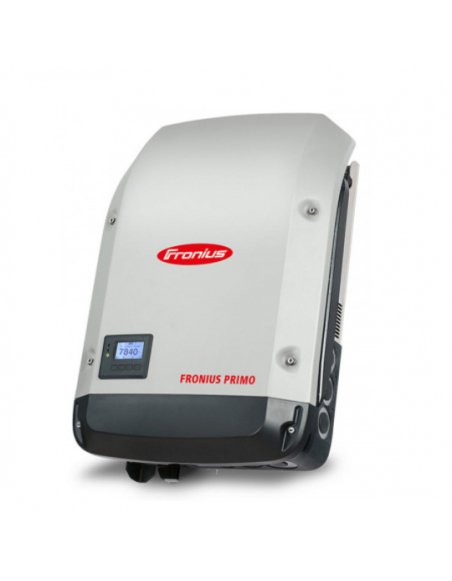

Inverter Solar Fronius Primo 3.0-1 3kw Full
Inverter Solar Fronius Primo 3.0-1 3kw Full

Inverter Solar Fronius Primo 3.0-1 3kw Full

FP3-0
€1,137.40
Tax included

Inverter Solar connection network Fronius of 3000W single-phase.

The line of inverters brand Fronius Pure sine wave cousin, offers superior performance for multitude of applications. Highlights on the rest in its clean sinenoidal output of interference, which allows the Fronius Ensure a correct operation in sensitive equipment such as displays, measuring devices.

The robust electronics and the right mechanical design, make the inverters Fronius Cousin the best option in reliability. Designed for a long life with protection against short circuits, overloads and high temperature, they will provide a problem-free operation for many years. 7 year warranty of product and CE certificate.



The Inverter solar Fronius of the cousin series is a inverter Network connection without transformer that allows the synchronization of the solar installation with the electrical network.

All the models of the cousin series Fronius They incorporate two and have IP65 degree of protection. The models of inverter Solar Primo Lite / Light do not incorporate WLAN communications for management and remote monitoring. The inverters Solar series of the cousin series have a standard internet interface through a WLAN or Ethernet Ethernet cable. The Fronius Primo include DataManager and free connection to the Solarweb portal.

The inverters solar Fronius They have an injection system to the zero network which allows us to reduce the power of the inverter To avoid pouring energy to the network in the event that the solar installation produces more electricity from which is being consumed.

The main advantages of the cousin series of Fronius are:

  • - Snapinverter technology: the inverter Solar Primo is coupled in the fixed wall bracket. In case of service it is not necessary to remove all inverter, but only the power stage to access the interior of the device. All wiring is maintained in place to be able to manipulate easily and quickly the connection of the inverter
  • - Integrated data communication: the inverter Primo can be connected to the Internet using WLAN, Ethernet without the need for additional modules. Can be connected via Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON).
  • - Smart Grid Ready: The inverter solar Fronius From the Primo series it is prepared to connect to the SMART Grids so that they can remotely control the active and reactive energy injected to the network.

- -

General characteristics of the inverter:

Model

Cousin 3.0-1

Maximum ticket power (W)

4500 W

Nominal input voltage (V)

710 V

Start voltage (V)

80 V

Maximum input voltage (V)

1000 V

Maximum input current (A)

12 a / 12 a

Short-circuit current (A)

18 a / 18 a

Maximum output power (W)

3000 W

Nominal exit voltage (V)

220 V / 230 V

Departure frequency (Hz)

50/60 Hz

Temperature operating range (ºC)

-40 ° C to +50 ° C

Nominal output current (A)

13 a

Protections

Integrated

Weight package (kg)

21.5 kg

Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
12 - 12.99
