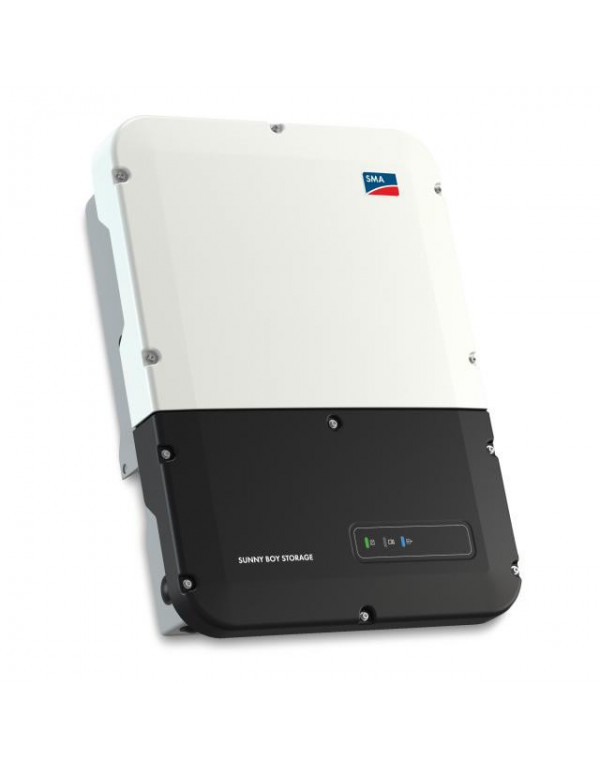

Battery Inverter SMA Sunny Boy battery storage 5.0
Battery Inverter SMA Sunny Boy battery storage 5.0

Hybrid Inverter SMA Sunny Boy Storage 5.0

SBS5.0-10
€699.00
Tax included

Inverter Solar three-phase hybrid for network connection SMA of 5000 W AC with 3 MPPT with an efficiency of 97.5% and a maximum input current of 10 A with convection cooling system. This inverter It stands out for its reliable supply, its flexible design and its simple management.

The Sunny Boy Storage are secured before short-circuits, overloads and high temperatures, will provide trouble-free operation of their three-phase solar installation for many years. Inverter Network connection hybrid for solar installations with excellent value for money. It does not include transformer and offers IP65 protection.

Product guarantee of 5 years.



The line of inverters Sunny Boy Storage is characterized by the following characteristics:

  • - Versatile configuration and scalable photovoltaic design.
  • - Fully automated battery backup function
  • - 10-year warranty
  • - It can be extended at any time by connecting up to three batteries
  • - Various sizes of photovoltaic systems and choice of batteries
  • - Ideal for both readjustment and new facilities
  • - Easy installation
  • - Quick start-up with WebUI via WLAN through a smartphone or a table
  • - Direct integration in Sunny Portal / Sunny Places through the WebConnect function

Model

Sunny Boy Storage 5.0

AC



Nominal power (at 230 V, 50 Hz)

5000 W

Overload capacity (at 25 ° C to max 60 seconds)

6300 W

Nominal AC current output (at 230 V, 50 Hz

21.7

Nominal AC Voltage Range / AC Voltage

230 V / 172.5 V at 264.5 V

Frequency / Range of the AC Network

50 Hz / 45 Hz at 65 Hz

Adjustable displacement power factor

0.8 overexcited 0.8 under-excite

Power phases / connection phases

1/1

Battery DC Entrance



Max voltage cc

500 V

CC voltage range / cc nominal voltage

100 V to 550 V / 360 V

Minimum DC voltage / start cc voltage

100 V / 100 V

CC current max. By entry of cc / number of cc inputs

10 a / 3 x 10 a

Short circuit current max.

At

Battery types

Li-ion

Effectiveness

Max efficiency.

97.5%

Protective devices

CC Reverse Polarity Protection / CA Short Current Capacity

● / ●

Monitoring of ground faults / network monitoring

● / ●

Residual current monitoring unit sensitive to all poles

●

Protection class / overvoltage category

I / fourth

General data

Dimensions (w / h / d)

535 mm / 730 mm / 198 mm (21.1 inches / 28.5 inches / 7.8 inches)

Dimensions incl. Packaging (w / h / d)

600 mm / 800 mm / 300 mm (23.6 inches / 31.5 inches / 11.8 inches

Weight / Weight incl. packaging

26 kg (57 lbs) / 30 kg (66 lbs)

Operating temperature range in battery operation

-25 ° C A + 60 ° C (-13 ° F A + 140 ° F)

Installation height max. over MSL

3000 meters

Emission of noise, typical (1 m away)

39 dB (a)

Self-consumption Standby / self-consumption without load

Topology

Transformer

Cooling method

Convection

Protection against the entrance

Ip65

Climate category

4k4h

Maximum permissible value for relative humidity

100%

Characteristics / function

Emergency supply feature of safe power source emergency

● (max 16 A, manual switch activated)

Interfaces

Ethernet / WLAN / CAN / RS485

Communication / Protocols

Modbus (SMA / SunSpec) / WebConnect / Modbus RTU (RS485)

Communication of the battery

Bus

Screen / Web user interface

Integrated Web Server / Through Smart Phone, Tablet, Laptop

Remote monitoring

Sunny Portal through WebConnect

Warranty

5 years / 10 years with registration in Sunny Portal / Sunny Places

Certificates, Approvals and Declarations of the Manufacturer

www.SMA-Solar.com

Accessories

Automatic transfer switch for battery backup system

Available in external suppliers

Sunny Home Manager / Home Manager 2.0

Compatible

Power meter SMA

Compatible

Designation of type

Sbs5.0-10
Power (kW)
3 - 5.9
Phase Type
Three-phase
Max Current Input (A)
10-10.99
Compatibility list
BYD HVS / HVM
LG RESU
