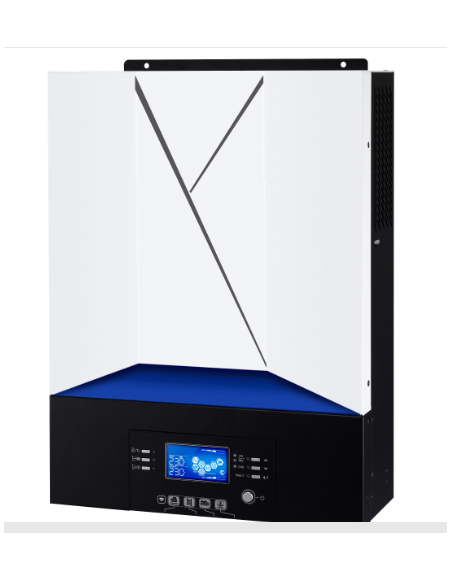

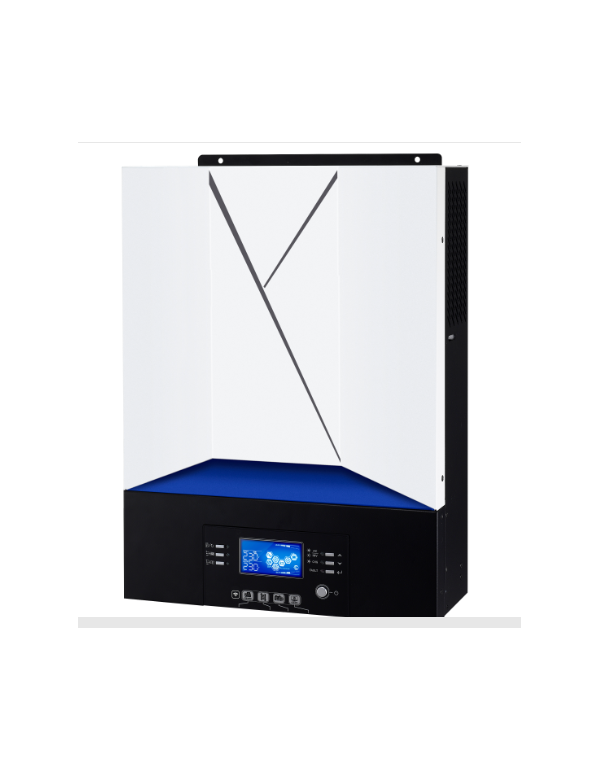

Inverter Solar charger Axpert VM III 3000-24V
Inverter Solar charger Axpert VM III 3000-24V

Inverter Solar charger Axpert VM III 3000-24V

AXVMIII3K24
€390.00
Tax included

Inverter Solar charger for 3000W isolated installations at 24V single phase to connect solar batteries from the corresponding voltage. The Axpert VM III 3K has a single MPPT with a yield of 93.0%

The maximum current of solar regulator input is 80a this type of inverter Solar at 24V integrates the MPPT load controller and can be configured with solar panels whether 60 or 72 cells

The inverter Axpert VMIII is compatible with lithium batteries Pylontech and integrates tensions assigned in ranges from 90Vac to 280Vac. Ability to connect up to 4000WP solar

The inverter 3KW Axpert VM III Solar Charger (KVA) offers a 2-year product and CE certificate warranty



The inverter solar Axpert VM III  3000-24V stands out in addition to its price for the following characteristics:

  • - Inverter solar of high efficiency sine wave isolated
  • - MPPT loading regulator integrated in the inverter solar
  • - Wide range of selection of entry current of the inverter solar for battery charge up to 80A
  • - Configurable AC / Solar Entrance through the LCD screen
  • - Compatible with lithium batteries (Pylontech those recommended by the manufacturer)
  • - Overvoltage and short circuit protections in the inverter solar

The inverter- Axpert Farger is a very economical option for demanding customers who want to own a reliable and smooth quality product in the operation of its installation. For any questions, ask us at [email protected]

Technical data of inverter solar:

Technical characteristics

Model

Axpert VM III 3K-24

Nominal power

3000va / 3000w

Entrance voltage

230 V / from 90V to 280 V

Network assigned frequency

50 Hz to 60Hz

Output voltage AC

230VAC + 5%

Maximum power peak transient

6000va

Efficiency peak

93%

Waveform

Pure-stenoidal

Battery tension

24vdc

Load floating tension

27vdc

Overload protection

33vdc

Maximum power PV soak input

4000w

MPTT range in operating voltage

120-450vdc

Maximum tension of circuit open by String

500vdc

Maximum solar current

80a

Maximum AC current

60a
Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
10-
