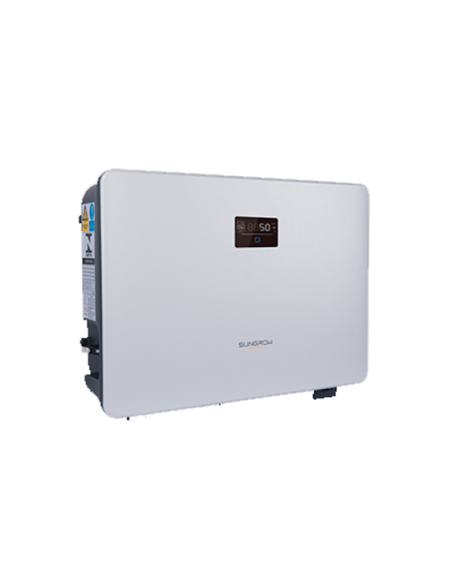

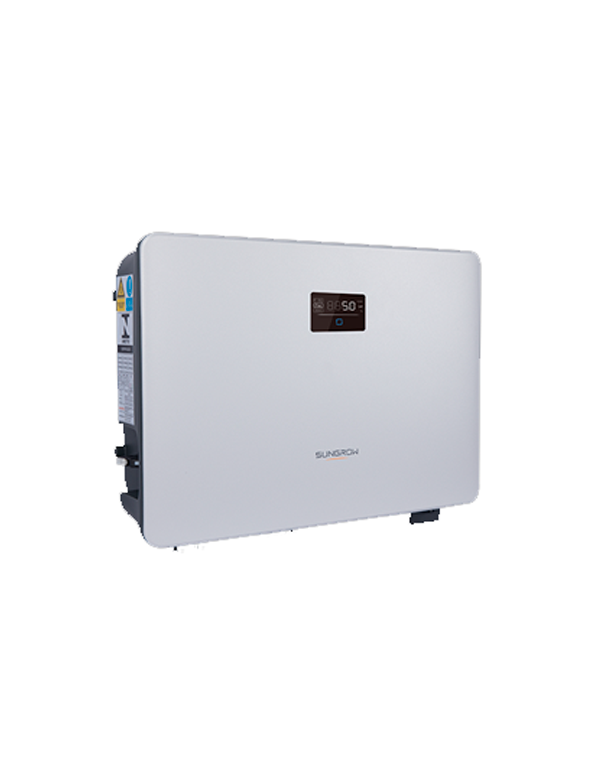

Sungrow SH6.0RS V11 Hybrid Solar Inverter
Sungrow SH6.0RS V11 Hybrid Solar Inverter

Inverter Solar Hybrid Sungrow SH6.0RS V11

SH6.0RS
€1,078.11
Tax included

Inverter Solar Hybrid Sungrow SH6.0RS V11 single-phase 2 MPPT 6KW

The inverter Solar SHRS Solar is an ideal team for single-phase residential facilities, thanks to its compact and elegant design. It has the function backup, in addition to being compatible with lithium batteries from the main brands of the market with voltage from 80 to 460V. It has IP65 protection, which makes it resistant to dust and other external contaminants. In addition, it has a signaling LED and AC PLUG & PLUY connector either for network or a generator.

This inverter Solar has 2 MPPT to connect photovoltaic (compatible with High power or bifacial) with voltage range between 40 and 560V. Also, you have the possibility to monitor 24 hours solar production as well as visualize the I-V curves remotely.

It is a high performance, safe, reliable and easy-to-install team.

It has a 10-year warranty.



The inverters Série SHRS SUNGROW has the following benefits:

  • It has a wide voltage range of 80 to 460 V for solar batteries.
  • Ideal to renovate and build new facilities.
  • Includes an intelligent PID recovery function which allows reducing the loss of production of the Solar by PID.
  • Real-time information (data update every 10 seconds).
  • Live monitoring 24/7 on an integrated screen and online.
  • Diagnosis and scanning of the IV curve online.
  • Simple installation
  • The configuration is Plug and Play which allows the equipment running quickly and without complications.
  • Compact and lightweight.
  • It has a smooth transition to mode backup To avoid the loss of electricity supply
  • Rapidity in loading and downloading allows you to obtain higher percentage of self-consumption and reduce the consumption of the electricity network
  • Includes EMS with advanced customization.
  • The IsolarCloud platform allows connection to the system, device monitoring, task management, failure management and parameter configuration remotely.

Technical characteristics:

  • Model: Inverter Solar Hybrid Sungrow SH6.0RS V11
  • Maximum power PV: 13000 WP
  • Maximum Tension PV: 600 V
  • MPPT voltage range: 40 - 560 V
  • MPPT number: 2
  • Strings by MPPT: 1/1
  • Maximum input current: 32A (16A / 16A)
  • Short circuit current: 40A (20A / 20A)
  • Nominal AC output power: 6000 VA
  • Nominal AC tension: 220/230/240 V
  • Maximum efficiency / European efficiency: 97.7 / 97.3%
  • Range Voltage Battery: 80-460V
  • Current loading / unloading: 30A / 30A
  • Dimensions: 490 * 340 * 170 mm
  • Weight: 18.5kg
  • Degree of protection: IP65
Power (kW)
6 - 9.9
Battery Voltage (V)
+ 48
Phase Type
Single phase
MPPT
2
Inverter Type
Hybrid
