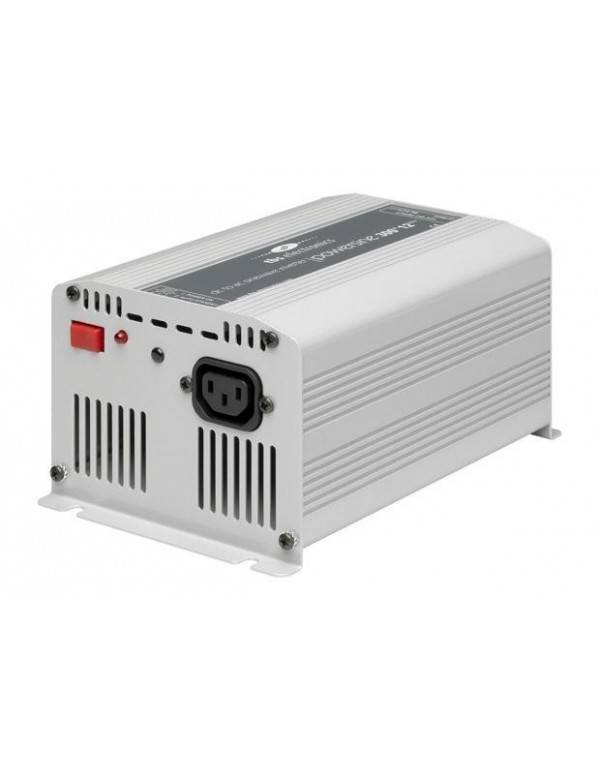

Inverter Sinenoidal 300W 24V TBS Ps350-24
The PowerSINE LINE inverters brand TBS Pure sine wave, offers superior performance for a multitude of applications. It stands out on the rest in its clean sinenoidal output of interference, which allows POWERSINE to ensure correct operation in sensitive equipment such as displays, measuring devices or battery chargers.
Inverter Sinenoidal 300W 24V TBS Ps350-24
The robust electronics and the right mechanical design, make the inverters Powersine the best option in reliability. Designed for a long life with protection against short circuits, overloads and high temperature, they will provide a problem-free operation for many years.
The use of the last technology results in an extremely efficient operation with a very low self-consumption without load. The ASB function, standard in all Powersine, will reduce consumption without loading at 70% extra.
General characteristics:
- Pure sine wave alternation (AC)
- Robust design
- High output power in transients
- High efficiency
- Protection against high and low battery voltage, high temperature, overload and short circuit
- Automatic standby function to reduce consumption without load
- Variable velocity of cooling fan for silent operation
- Possibility of remote operation ON / OFF (with accessories)
- Possibility of remote control via tbslink (with accessories)
- Easy access for wiring connection
- CE certificate
- 2 years warranty
Applications:
- Recreation vehicles
- Solar systems
- Industrial systems
- Service vehicles
- Maritime applications
Technical characteristics:
|
Entrance voltage |
24v |
|
Power output (nominal) |
300w |
|
Power output (10 minutes) |
360w |
|
Power output (peak) |
800w |
|
Exit voltage |
230VAC ± 2% |
|
Output frequency |
50HZ ± 0.05% OR 60HZ ± 0.05% |
|
Outlet |
Pure sine (THD |
|
Maximum efficiency |
93% |
|
Ambient temperature operating range |
-20 ° C to +50 ° C |
|
Protections |
Short circuit, overload, high temperature, low battery voltage |
|
Size package |
184 x 98 x 130 mm |
|
Weight |
3.5 kg |
