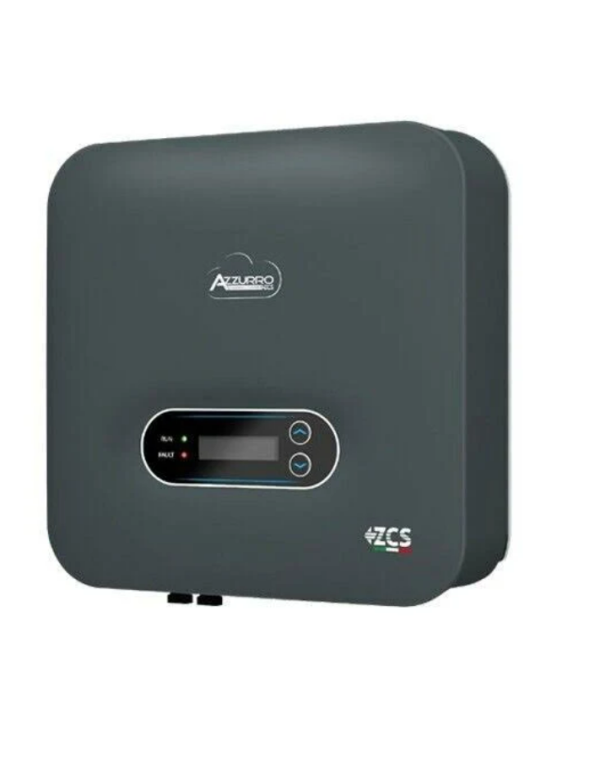

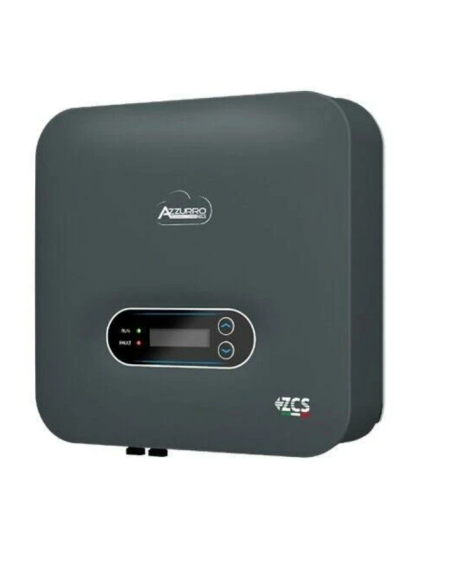

Inverter Solar ZCS Azzurro 5000TLM-V3 | Inverter 5KW single-phase

Inverter ZCS Azzurro 5000TLM-V3: double MPPT flexibility for residential self-consumption

The choice of inverter Central determines the actual use of a photovoltaic plant on complex residential covers. The inverter solar ZCS Azzurro of 5000W It responds to the current needs of the self-consumption market by combining a wide range of working tension with intelligent surplus management, becoming the ideal component for housing that seek drastically its dependence on conventional electrical network.

Optimization by independent channels and zero pouring control

The main competitive advantage of the series Tlm-v3 Faced with the TL standard range is the integration of 2 Regulators MPPT (MAXIMUM POWER POINT TRACKER). This feature allows you to divide the photovoltaic field into two different orientations (for example, east-oriented roofs and to the west) or group That suffer shadows on an independent channel without penalizing the production of the rest of the system. The inverter It supports a typical entry power of up to 5500W in direct current.

On Tienda Solar We focus on offering you total control of your energy. By the optional addition of the compatible vatimeter and the zest-ACC-TR power measuring clamp, the ZCS Azzurro 5000TLM-V3 allows to activate the function of zero injection or pouring limited to the electrical network. This helps you meet current local regulations and manage photovoltaic production according to your consumption needs in real time.

Integral security, touch interface and remote connectivity

This inverter 5KW has been designed under the strictest standards of industrial safety. It has integrated anti-island protection, residual current monitoring unit (RCMU) and an advanced ground insulation failure detection system. To facilitate maintenance tasks and ensure 100% safe handling, it includes a serial DC switch switch Integrated at the base of the equipment.

The configuration and reading of the daily data are extremely simple thanks to its LCD Touch Screen, which allows you to visualize the live power parameters. In addition, thanks to its WiFi connectivity and its compatibility with 4G or Ethernet optional modules, you can synchronize the inverter with the official application and the Azzurro ZCS web portal to monitor your performance graphics solar panels From anywhere in the world. Its Compact Plug and Play housing has IP65 degree of protection, guaranteeing a high resistance in facilities located to the weather.

Technical specifications (model 5000TLM-V3):

Input parameters (DC current):

• Typical recommended CC power: 5500 W

• Number of independent MPPT followers: 2

• Maximum voltage of entry in CC: 600 V

• Nominal input voltage in CC: 360 V

• Nominal input current by MPPT: 12.5 a

• Maximum input current by MPPT: 15 a

Output parameters (AC current):

• Nominal AC power: 5000 W

• Maximum output power: 5000 VA

• Maximum output current CA: 24.1 A

• Type of connection to the network: Monophasic (line / neutral / land)

• Nominal output voltage: 220 V, 230 V, 240 V

Efficiency and general protections:

• Maximum efficiency Inverter: 98,4%

• Integrated protections: Anti-Isla System, RCMU monitoring, Ground Fault Protection and Switch Integrated CC factory DC

• Standard communication interfaces: Rs-485

• Optional communication interfaces: WiFi card, 4G modem or Ethernet module

• Degree of environmental protection: IP65 (suitable for exterior and interior installation)

• Dimensions of the chassis: 345 x 341 x 167 mm

• Manufacturer's Guarantee: 5 years series

Frequently Asked Questions (FAQ)

1. What is the real difference between the TLM-V3 series and the TL-V3 series of ZCS Azzurro? The difference lies in the MPPT number. The TL series has a single MPPT, while this 5000TLM-V3 model incorporates 2 independent MPPT. This means that you can connect two strings of Independent solar with different inclinations or orientations, maximizing the overall production of your roof.

2. Does the accessory be included to perform zero pouring to the network? No, the inverter It has the necessary software to limit or cancel the injection of surpluses to the network, but for this opere function to mandatory the installation of an external vattime and the ZST-ACC-TA current clamp, which are sold separately in our store.

3. Is this apt inverter 5KW to be placed on an outer facade? Yes, the inverter It has a watertight envelope with IP65 grade certification. This protection guarantees a total seal against the penetration of dust and resistance to direct rain, which allows to install it both indoors (garages or laundry) and the weather.

4. How are the network parameters and operation for the first time configure? The start-up of the Azzurro ZCS range is quick and comfortable thanks to its Plug and Play technology. The initial configuration can be done manually through the menus on your front LCD touch screen, or wirelessly using the mobile app itself once the WiFi module of the equipment is connected.
