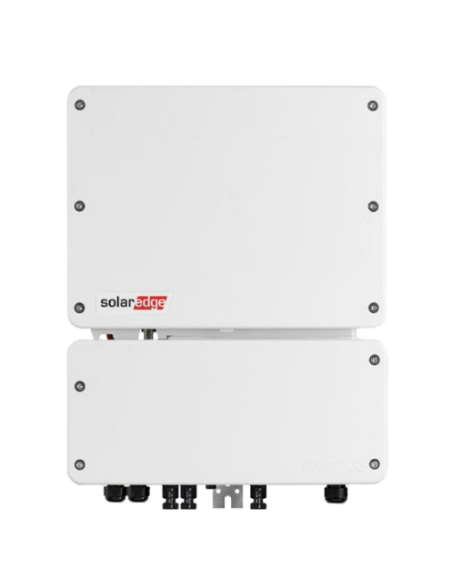

Inverter Solar Hybrid Single-phase SolarEdge 8.0kw se8000h | Solution Home Hub with scalable back-up function

SolarEdge Home Hub model SE8000H: 99.2% record efficiency, technology with power optimizers and active fire safety

The transition to an energy-protected and protected housing requires smart conversion systems that maximize the production of each photovoltaic module. The range SolarEdge Home Monophase Hub it stands out in the residential market by combining a compact and ultralight design with an advanced analytical capacity, allowing residential users to squeeze the potential of its roof and ensure a continuous power supply 24 hours a day.

Maximum performance with optimizers, Overdimensioning and smart backrest

Unlike traditional STRING systems, this equipment mandatory the use of individual current optimization devices installed individually below each panel. This completely eliminates the negative impact of partial shading, dirt or cross-orientations on the cover, achieving a maximum conversion efficiency of the 99,2%. Its ability to manage a catchment field up 16,000 WDC it allows to register large volumes of clean energy during dawn hours and sunset, covering the consumption in real time of housing and simultaneously driving the excess energy towards accumulators. If you are projecting the placement of your plates on tilted covers or tile roofs and looking for maximum mechanical fixation, we suggest you explore our section of structures for aluminum extruded high strength.

In scenarios where the electric distribution network suffers cuts or instabilities, the system activates its functionality of critical backup (back-up). When partnering with the official backup interface SolarEdge Home Interface Bi-EU1P, the inverter is able to switch to isolated mode (off-grid), supplying the full power of 8 kW to the priority lines of the household by combining the batteries. To evaluate the compatible accumulation modules and configure an energy reservation system for your needs, we invite you to consult our specialized catalog of batteries high voltage brand.

Advanced security with arc detection, natural convection and extended warranty

The integrity of the home is guaranteed by the native incorporation of an electronic circuit of electric arc detection. This intelligent system identifies thermal abnormalities in the direct current wiring and stops production immediately, mitigating any risk of fire in the roofing. In its constructive section, the SE8000H stands out for a weight of only 16.5 kg and very contained dimensions, which simplifies the field assembly times.

Your cooling runs by passive natural convection, dispensing with mechanical fans susceptible to faults by accumulation of dust; This provides a silent operation with noise levels below 25 DBA. Your hermetic chassis has certification Ip65, endorse its safe installation both inside the garage and the weather in outdoor facades. Factory is supplied with a solid 12-year warranty, optionally expandable up to 25 years. If your home has a three-phase rush or you need industrial powers for a business, you can find out in our menu of inverters hybrid of great power.

Technical specifications (model SolarEdge Se8000h):

Input parameters in direct current (CC / photovoltaic side):

• Maximum power of CC taken in: 16,000 W (Allows up to 200% FV oversizing).

• Maximum voltage of entry in CC: 480 VDC.

• Nominal DC input voltage: 380 VDC.

• Maximum input current in CC: 21.5 A (21.5 Amp).

• Number of MPPT channels: 1 MPPT (requires power optimizers SolarEdge).

• CC input connectors: 3 pairs of MC4 type terminals.

• Protection against investment of polarity: Integrated as standard.

• Technical insulation: Without transformers, without ground connection.

Output parameters in alternating current (AC / network connection):

• Nominal power output: 8,000 W (8 kW).

• Maximum apparent output power: 8,000 VA.

• Nominal exit tension supported: Single-phase 220 VAC / 230 VAC (range of 184 V to 264.5 v).

• Nominal network frequency: 50 Hz / 60 Hz (tolerance of more or less 5 Hz).

• Maximum continuous output current: 36.5.

• Adjustable power factor: 1 (Configurable dynamic range from -0.8 to 0.8).

Performance, dimensions and installation data:

• Maximum efficiency of the Inverter: 99,2%.

• European weighted efficiency: 99,0%.

• Degree of exterior environmental insulation: Certification Ip65 (Installation suitable for exterior and interior).

• Thermal air conditioning method: Natural Convection (Fan Free Passive Design).

• Operating Noise Level: Less than 25 DBA (absolute silence).

• Operational temperature range: -40 ° C to +60 ° C.

• Physical dimensions of the team (at x an x PR): 535 mm × 370 mm × 185 mm.

• Net weight of the device: 16.5 kg.

• Supported communication interfaces: Port RS485 (optional modules for Wi-Fi and GPRS connectivity).

Frequently Asked Questions (FAQ)

1. Why is this inverter SolarEdge 8KW do you need optimizers to be able to work? Unlike inverters networking traditional grouping all in a single string where the weakest panel limits others, technology SolarEdge decentralizes direct current management. Each photovoltaic module requires carrying a power optimizer connected. This allows each board to work fully independently at their point of maximum power. In addition to increasing the overall production of the system in the presence of shadows or dirt, it allows to monitor the performance of the installation individually and activates the security system Safedc to reduce the voltage of the cables at a safe level when the inverter it goes off.
2. How does the Back-Up system work and what additional accessories are needed to activate it? The function of Back-up (or backup power) Ensures that if a cut occurs in the street power supply, the installation can continue to produce solar energy and unloading the batteries to feed the critical consumption of the home. So that this isolated mode of operation (off-grid) Is it possible in this model of inverter solar hybrid, it is totally indispensable to install the official backup interface with the equipment SolarEdge Home Interface Bi-EU1P. This device is responsible for physically disconnecting the housing from the public network safely during blackout to avoid short circuits and allow the inverter create an own internal network.
3. How many lithium batteries can I connect to the Home Hub SE8000H model? This equipment has a highly flexible high-voltage storage architecture if you want to avoid the classics balcony Kits and take the jump to a complete system. It allows you to connect modularly from a single accumulator module up to a maximum of 3 400 V batteries from the series SolarEdge Home connected in parallel. This gives you a wide range of accumulation to adminate your housing energy reserve as your family's consumption needs grow.
4. What advantages does the inverter have refrigeration for passive natural convection? The natural convection refrigeration design dissipates the internal heat of the electronics through the aluminum radiator of its own chassis, eliminating the need to incorporate mobile mechanical fans. By not having moving parts, the inverter it does not generate any type of mechanical noise during the day (emission less than the DBA 25), so it can be installed on indoor walls without causing discomfort. In addition, when suppressing the forced flow of air, it is avoided that the fine dust, pollen or insects penetrate and accumulate in the circuits, reducing the maintenance rate and lengthening the useful life of the equipment.
