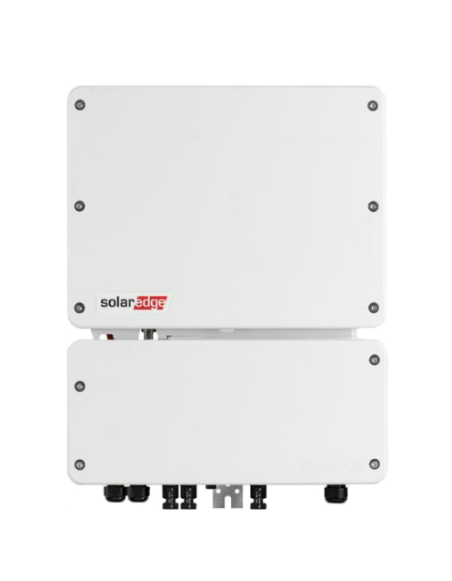

Inverter Single-phase SolarEdge Home Hub 5.0kw SE5000H with BackUp

SolarEdge Home Hub 5KW: Intelligent Management with 200% Overdimension, Advanced Security and Total Electrical Support

The evolution of the facilities of own consumption Residential requires teams capable of centralizing photovoltaic generation, energy storage and active home protection seamless. The inverter SolarEdge Home Hub SE5000H It represents the technological vanguard in single-phase systems for the 50Hz European network. By combining a compact design with a high-power electronic brain, this device allows residential users not only to optimize their diurnal light invoice, but to shield their housing in accordance with the commercial electric distribution network, ensuring a clean supply, Continuous and of the highest quality.

99% record efficiency and scalable modular storage capacity

The great competitive advantage of HD-Wave technology SolarEdge Integrated in this inverter of 5.0kw radica en su rendimiento energético superior. Achieve a Maximum efficiency of 99.2% (99% weighted European), drastically minimizing the thermal dissipation losses. By not integrating heavy transformers, their dissipation is carried out by natural convection, keeping the noise below some imperceptible 25 DBA. Its great technical superpower is the margin of continuous current oversizing: tolerate up 10000W DC in Entrance solar, which allows to feed with total solvency the consumption of housing in hours of low radiation or simultaneously derive surplus towards physical storage.

The SE5000H model is a system fully prepared for the future thanks to its accumulation flexibility. Allows direct and scalable integration up 3 400V high-voltage batteries from the series SolarEdge Home, retaining the surplus energy during the day for night use. If you are projecting the perfect placement and inclination of your photovoltaic modules on tile or flat covers to feed this intelligent system, we have the best fixations in our section of .

Fanointing BackUp Critical and optimization requirements

Unlike inverters Conventional network connection that goes out completely during a blackout for security reasons, the 5.0kw Home Hub stands out for its capacity for resilience. By adding the intelligent interface SolarEdge Home Interface Bi-EU1P, the inverter enter BackUp In second fractions when the conventional electrical network stops working. In this state off-grid, the inverter Continue to feed the critical loads of the house using the direct energy of your solar or of the batteries loaded, delivering all its nominal power of 5000w.

It is essential to highlight an indispensable technical requirement of architecture SolarEdge: this inverter solar Require you mandatory from the use of power optimizers Installed individually in each photovoltaic module. This allows that, despite having a single physical entry of CC (with a maximum entry voltage of 480 VDC and a stream of 13.5), the system manages each plate independently, eliminating the losses by partial shading or dirt. If in your case you are assessing other industrial alternatives or pure direct injection for your business, you can explore the complete catalog of inverters networking. The team has 12 years warranty, of the highest in the market, optionally expanded up to 25 years.

Technical characteristics:

• Nominal AC power output: 5000 W.

• Maximum power of AC output: 5000 VA.

• AC output voltage (nominal): 220/230 VAC (Operating rank of 184 - 264.5 V).

• CA frequency (nominal): 50/60 ± 5 Hz.

• Maximum continuous output current: By.

• Maximum power of CC (entry of ): 10000 W (Admits up to a 200% Overdimension).

• Max input voltage of CC: 480 VDC.

• Nominal DC input voltage: 380 VDC.

• Maximum entry current of CC: 13.5.

• Maximum efficiency of the Inverter: 99.2% (European weighted efficiency of the 99%).

• Security protections: Earth fault insulation detection (600 kΩ), reverse polarity protection and Active electric arc detection.

Frequently Asked Questions section (FAQ)

1. Why is this inverter SolarEdge 5KW needs optimizers in the Solar to work?

Unlike inverters traditional (String), the architecture of SolarEdge divide the work into two: the optimizers fixed in the solar They are responsible for looking for the maximum power point of each module individually and raise the voltage to a fixed range of 380 VDC. The inverter Home Hub only is responsible for transforming that continuous current into alternating ultra-efficient, which prevents a cloud or a shadow over a single panel. Tomato the performance of the entire chain.

2. The inverter Can you give light to the house for a blackout automatically since it is installed?

Not directly. The inverter comes fully prepared for the function of BackUp, but to be able to isolate himself from the network safely and continue running in mode off-grid, requires the complementary installation of the network interface SolarEdge Home Interface Bi-EU1P. With this element, if the street light is cut, the system continues to feed your home with the energy of batteries or plates.

3. What real advantages do you provide to be able to overtake the entry into cc to 200%?

Allows you to connect up 10000w in photovoltaic plates in a inverter whose maximum AC output is 5000w. This is extremely useful because on cloudy days, during the winter, or in the first and last hours of the day, your plates will produce enough energy to reach the maximum peak of the inverter. In addition, at the central hours of the day, the surplus that is not injected to the house is used to charge batteries at maximum speed without wasting a single watt.

4. What is electric arc protection that includes the SE5000H model?

It is an advanced active security system certified under the standard IEC-62109-1 / 2. The inverter continuously monitor the passage of the direct current and, if it detects an anomaly or a small spark in the connections of the (An electric arc caused by a damaged or poorly tightened cable), turns off the circuit immediately to avoid any risk of fire on the roof.

5. How many solar batteries can be added to this inverter And what type should they be?

The inverter It allows you to configure a scalable storage solution. Can be connected modularly up to a maximum of 3 400V high-voltage batteries from the series SolarEdge Home. This allows you to start with a storage module and expand the system's ability in the future if you increase your night consumption needs.
