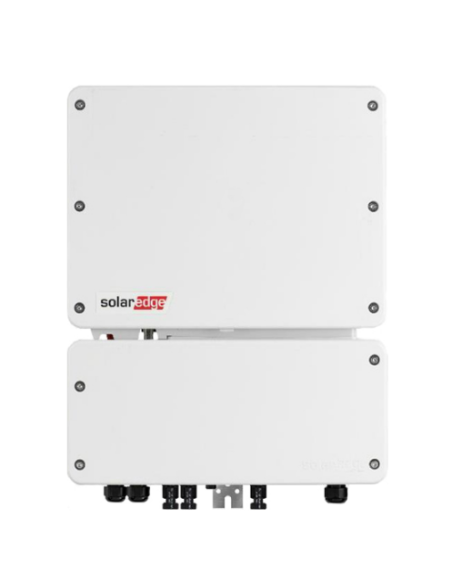

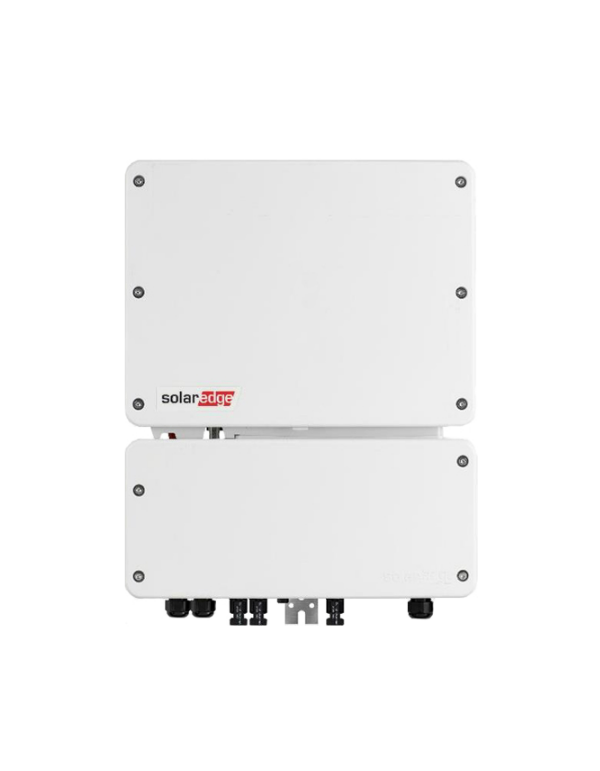

Inverter SolarEdge Home Hub 6.0kw with BackUp | Inverter Single-phase

SolarEdge Home HUB 6000W: Independence and Maximum Efficiency for Single-phase self-consumption

Guarantee the electric stability of a modern housing requires a inverter able to go a step beyond the simple power conversion. The inverter single-phase SolarEdge Home Hub SE6000H it assumes this control by combining a record efficiency in the sector with a modular ecosystem prepared for the future. By working together with the brand power optimizers, the system completely mitigates the losses caused by clouds, dirt or partial shades in your solar, forcing each module to always surrender to the maximum of their capabilities.

Scalable and modular backup energy with SolarEdge Home

The great differential advantage of the HAB range resides in its ability to shield your home before the unforeseen failures of the electrical distribution network:

• Function BackUp Full: By combining this inverter of 6kw with the optional accessory SolarEdge Home Interface (BI-EU1P), the system is able to securely switching in a manner connected to mode isolated for a blackout, keeping the essential consumption lines of the house active with the nominal power of the inverter.

• High voltage storage: The equipment allows direct, clean and modular integration of up to a maximum of 3 lithium batteries SolarEdge Home of 400V, which allows you to adapt the reservation capacity of your home according to your real night autonomy needs.

Advanced active security and cutting-edge architecture

On Tienda Solar we are committed to the security of your home. For this reason, the SolarEdge SE6000H incorporates an integrated protection and detection system against electric arc failures that stops the operation of the inverter immediately if an anomaly is detected in the direct current, minimizing any risk in the installation.

Its 16.5 kg light chassis has an IP65 environmental protection degree, suitable for secure and outdoor installations. Lacking external mechanical fans, dissipates the residual heat by means of a silent natural convection system that reduces operating noise below 25 DBA, allowing imperceptible performance that lengthens the life of all internal electronics with the backrest Of its 12 years warranty of serial enlarges to 25.

Technical specifications (model SE6000H):

Output parameters (AC current):

• Nominal output power: 6000 W

• Maximum output power: 6000

• Nominal output voltage: 220/230 VAC

• Supported output voltage range: 184 - 264.5 V

• Nominal network frequency: 50/60 Hz (tolerance of more or less 5 Hz)

• Maximum continuous output current: 27.5 a

• Adjustable power factor: 1 (configurable from -0.8 to +0.8)

Input parameters (DC current):

• Maximum power of admitted DC (): 12000 W (allows to oversime up to 200%)

• Maximum input voltage: 480 VDC

• Nominal DC input voltage: 380 VDC

• Maximum input current: 16.5 a

• CC (PV) entries: 3 pairs of MC4 connectors

Performance and general physical data:

• Maximum efficiency of the Inverter: 99,2%

• European weighted efficiency: 99%

• Integrated protections: Electric arc detection, island protection, reverse polarity and ground insulation detection (600 kohmios)

• Dimensions of the Inverter: 459 x 370 x 154 mm

• Net weight of the team: 16.5 kg

• Degree of protection: IP65 (installation suitable for exterior and interior)

• Refrigeration method: Natural Convection (No Noisy Fans)

• Acoustic noise emission: Less than 25 dba

• Working temperature range: -40 ° C up to + 60 ° C

• Compatible AC cable section: 1 - 13 square mm (diameter of 9-16 mm)

Frequently Asked Questions (FAQ)

1. Does the inverter SolarEdge Home Hub If power optimizers are installed? No. All Technological Architecture of SolarEdge it is based on an optimized fixed voltage design. So that the inverter fUNCTION CORRECT AND TIKE, IT IS OF MATTING AND INDISPERSABLE TO INSTALLING AN POWER OBTIMIZER SolarEdge under each of the solar installation.
2. Can you activate the mode BackUp without buying any additional accessory? No, to dispose of the backup function against light cuts you need to add to installation the perimeter equipment SolarEdge Home Interface Bi-EU1P (available separately). This accessory is responsible for physically disconnecting the home of the public network to create a secure microrred powered by your batteries and solar.
3. What models of lithium batteries can be connected to SE6000H? This model is natively compatible with high voltage storage systems of the official series SolarEdge Home of 400V. Your scalable architecture allows you to connect a battery module initially and be added more in a modular manner up to a maximum limit of 3 modules by inverter.
4. Why is it a great advantage to be able to overtake the inverter up to 200%? By allowing an entry of solar up to 12000W in continuous current in front of its 6000W output in alternation, the inverter it optimizes the maximum production on cloudy days, in winter or at low radiation hours (sunrise / sunset). The surplus of energy generated during the central hours of the day that exceeds the 6000W of consumption is automatically diverted to recharge the connected batteries without being wasting energy.
