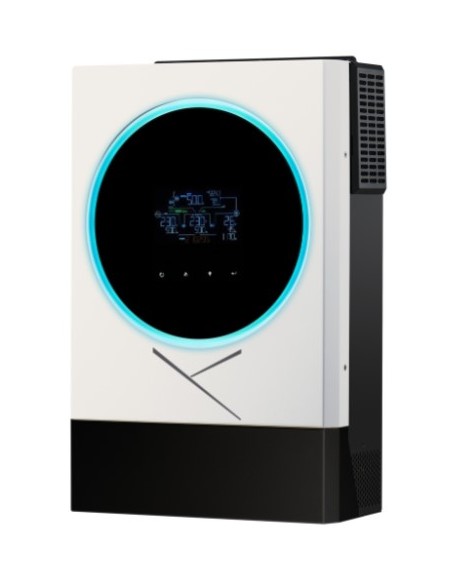

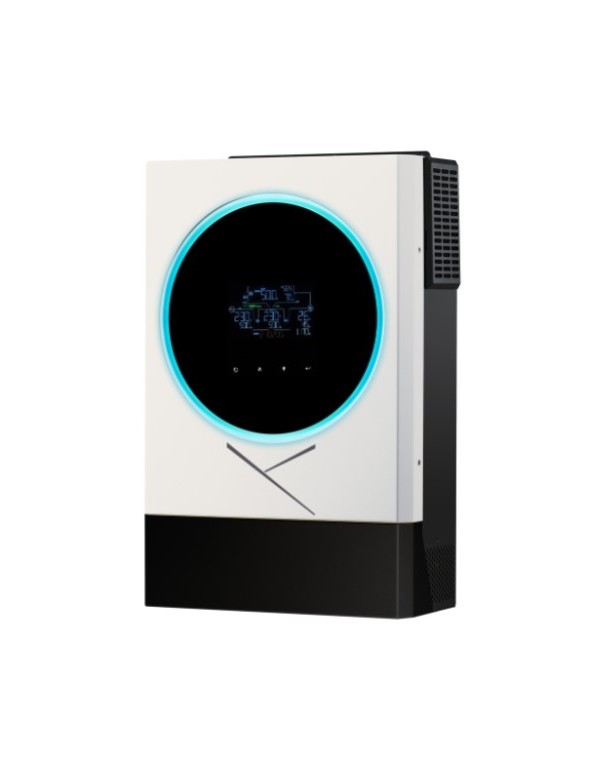

Solar inverter charger Axpert MKS 5.6K-48V
Solar inverter charger Axpert MKS 5.6K-48V

Inverter Solar Charger Axpert MKS IV 5.6K-48V

020062
€707.85
Tax included

Inverter Solar charger for isolated 5600W A 48V insulated installations for connecting solar batteries of the corresponding voltage

The Axpert MKS IV 5.6K has a single MPPT (maximum power tracking point) and provides 93% yield. The maximum current of solar regulator input for this product is 120A

This type of inverter Solar charger, such as Axpert VM 5000W to 48V, integrates the MPPT loading regulator and can be configured Solar solar of both 60 and 72 cells.

The inverter Axpert MKS IV Solar Charger from 5600W-48V offers a 2 year product and CE certificate warranty



The inverter solar Axpert MKS IV 5600-48V stands out, as well as its price, for the following characteristics:

  • - Inverter solar of high efficiency sine wave isolated
  • - Allows parallel to up to 9 units
  • - MPPT loading regulator integrated in the inverter solar
  • - Wide range of input voltage selection of the inverter solar (120-430v)
  • - Wide range of selection of entry current of the inverter solar for battery charge up to 120A
  • - Inverter that has integrated wifi
  • - this inverter it can work with and without batteries
  • - Overvoltage and short circuit protections in the inverter solar
  • - Option for coupling remote control of the inverter charger

The inverter- Axpert MKS 5600-48V Farger is a very economical option with a longer input current than the Axpert VM 5000W-48 and for demanding clients who want to own a quality, reliable and without problems in the operation of its solar installation.  For any additional questions, consult with us in [email protected]

Technical data below:

Model

Axpert MKS IV 5.6K - 48V

Nominal power

5600 W

Dimensions

140 x 295 x 468

Efficiency

93%

Battery tension

48 VDC

Load floating tension

54 VDC

Overload protection

66 VDC

Weight

12 kg

MPPT range in operation tension

120-430 V

Maximum tension of circuit open by String

450 VDC

Maximum solar current

A.m

Maximum AC current

A.m



Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
20+
Compatibility list
Dyness BX51100
Dyness Power Box
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
