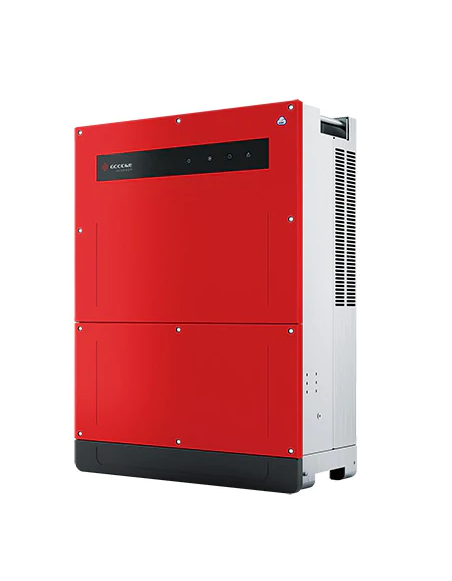

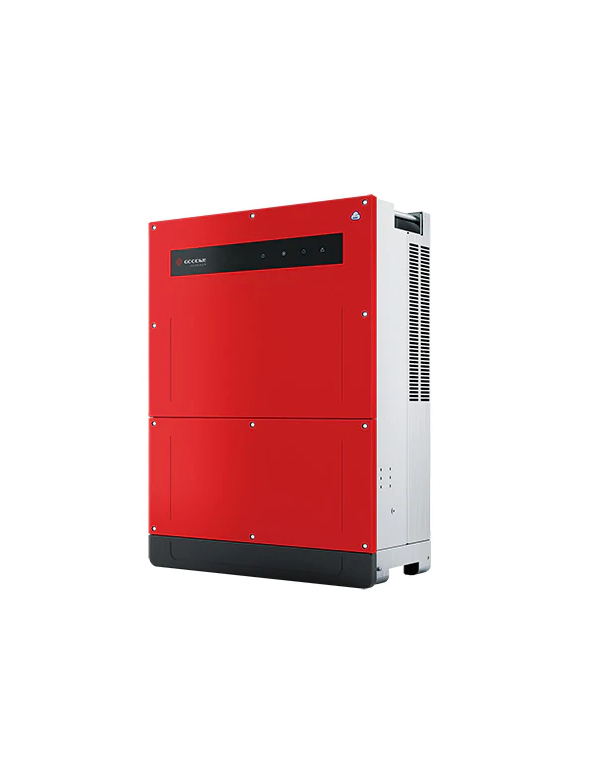

Inverter Solar GoodWe GW60KN-MT Three-phase

The inverters solar GoodWe From this MT series are characterized by the following:

• They cover a high range of powers.

• Minimum boot voltage of 200V that allows a fast start.

• Maximum efficiency of up to 99%

• Individualized control of chains.
• 30% photovoltaic oversizing.

• AC output overload up to 15%

• IP65 protection which provides you with tightness in front of moisture and dust, and allows you to be installed inside or outside the house.

New features that guarantee a longer lifespan and a greater degree of operational safety.

Technical sheet:

Max. short circuit current (A)

41.5

No. of MPP trackers

4

No. of chains by MPP trackers

3

Output data CA

Apparent power of nominal output to the network (W)

60000

Max apparent power output to the network (VA)

66000; 69000 @ 415v

Nominal output voltage (V)

400, 3L / N / PE or 3L / PE

Nominal exit frequency (Hz)

50/60

Max output current CA to the network (A)

96

Output power factor

~ 1 (adjustable from 0.8 conductive to 0.8 inductive)

Output THDI (in nominal output)

Efficiency

Max. efficiency

98.8%

Euro efficiency

98.5%

General data

TEMP range Operational (° C)

-30 ~ 60

Relative humidity

0 ~ 100%

Operational altitude (M)

≤4000

Weight (kg)

64

Size (Width * High * Long MM)

586 × 788 × 264

Degree

Ip65

Self-consumption at rest (W)

Topology

Transformer
